10737
Wiring devices / Traditional wiring devices / LINEA Classica / Cover plates

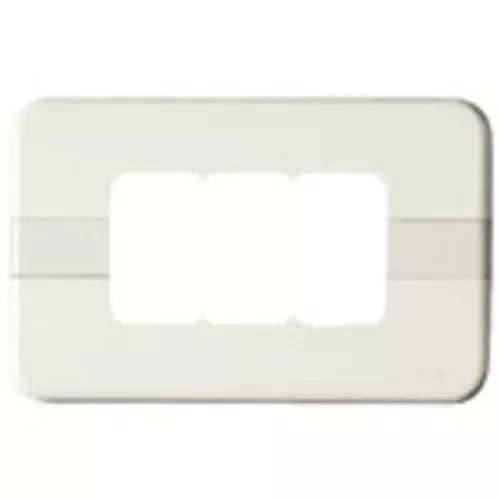

Self-bearing plate 3M box 3M
3-module self-bearing cover plate, resin, with screws, for 3-module flush mounting boxes, ivory. Provided with screw covering strips 10798.01
产品状态
3 - Active
Class group
Domestic switching devices
Domestic switching devices
Class
Cover frame for domestic switching devices
Cover frame for domestic switching devices
Number of units
3
3
Mounting direction
Horizontal and vertical
Horizontal and vertical
Number of units horizontal
3
3
Number of units vertical
1
1
Number of modules horizontal (module system)
3
3
Number of modules vertical (module system)
1
1
With mounting grid
Yes
Yes
Suitable for subfloor installation duct box
Yes
Yes
Suitable for wall duct
Yes
Yes
Suitable for built-in installation
Yes
Yes
Label space/information surface
Yes
Yes
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
White
White
RAL-number (similar)
9003
9003
Transparent
No
No
With hinged lid
No
No
Degree of protection (IP)
IP00
IP00
Type of fastening
Clamp mounting
Clamp mounting
Width
120,00 mm
120,00 mm
Height
76,00 mm
76,00 mm
Built-in width
120,00 mm
120,00 mm
Built-in height
76,00 mm
76,00 mm
Diameter bore hole (opening)
0 mm
0 mm
00. CE Marking - EU
最小订单数量: 20 NR
条形码
8007352044111
1 NR
12x7.8x2 [cm]
37.38 [g]
8007352001954
20 NR
25x18.9x8.4 [cm]
747.5 [g]
8007352335561
280 NR
59.5x38.5x26.5 [cm]
10,465 [g]
