Plate 4M techn.matt white - 09674.11

Pdf
Vimar - 09674.11 - Plate 4M techn.matt white
Vimar - 09674.11 - Plate 4M techn.matt white

09674.11
Wiring devices / Traditional wiring devices / NEVE UP / Cover plates

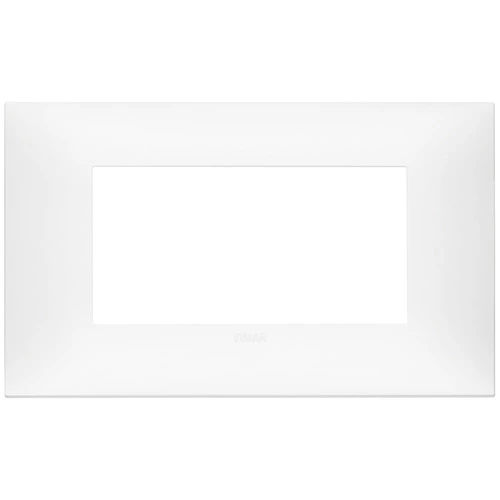

Plate 4M techn.matt white
4-module cover plate for 4-module mounting boxes, technopolymer, matt white

产品状态
3 - Active

您可能也感兴趣

09614
09614 - Frame 4M +screws

图纸

PNG DXF
PNG DXF
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
With hinged lid
No
Type of fastening
Clamp mounting
Width
142,40 mm
Height
86,00 mm
Depth
8,40 mm
Built-in width
142,40 mm

00. CE Marking - EU

29. QCERT - Colombia

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352663084
1 NR
15.5x9.9x0.9 [cm]
20.23 [g]
Barcode Qty 10 NR
8007352663091
10 NR
18x9.5x9.7 [cm]
264.19 [g]
Barcode Qty 240 NR
8007352670129
240 NR
41x32x39.5 [cm]
10,143.84 [g]
