Vimar - 09672.02 - Plate 2centrM techn.ivory
Vimar - 09672.02 - Plate 2centrM techn.ivory

09672.02
Wiring devices / Traditional wiring devices / NEVE UP / Cover plates

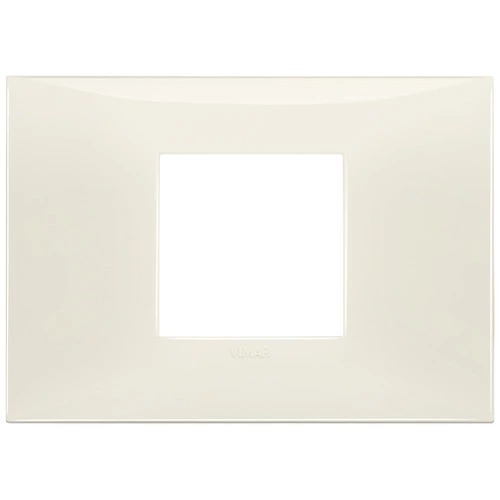

Plate 2centrM techn.ivory
2-module central cover plate for 3-module mounting boxes, technopolymer, ivory

产品状态
3 - Active

您可能也感兴趣

09606
09606 - Horizontal frame 2centralM+screws
09607
09607 - Vertical frame 2centralM+screws

图纸

PNG DXF
PNG DXF
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of units horizontal
2
Number of units vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
1013
Transparent
No
With hinged lid
No
Type of fastening
Clamp mounting
Width
120,00 mm
Height
86,00 mm
Depth
8,50 mm
Built-in width
120,00 mm

00. CE Marking - EU

29. QCERT - Colombia

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352662759
1 NR
13x9.9x0.9 [cm]
18.41 [g]
Barcode Qty 10 NR
8007352662766
10 NR
17.1x9.8x9.9 [cm]
235.41 [g]
Barcode Qty 360 NR
8007352670303
360 NR
59x34.5x32.5 [cm]
9,224.76 [g]
