09593
Wiring devices / View Wireless wiring devices / NEVE UP / Devices

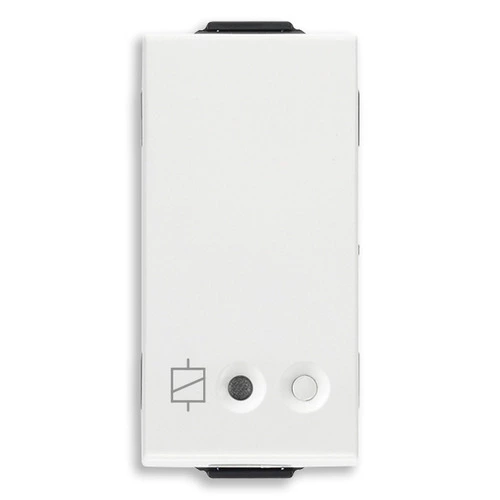

16 A IoT connected actuator white
View Wireless connected electronic control device with NO 16(3,5)A 100-240 V~ 50/60 Hz relay output, local control with push button or remote control, double technology with Bluetooth® wireless technology 5.0 standard for the realization of View Wireless mesh system and Zigbee 3.0 standard, function for measuringthe instant power and load cut-off threshold, RGB LED visible in darkness with brightness control, 100-240 V 50/60 Hz power supply, white
产品状态
3 - Active
单, 说明书, 文档
- Light multilanguage instructions sheet (838 kb)
- Foglio istruzioni Full (459 kb)
- Notice technique Full (549 kb)
- Ficha de instrucciones Full (455 kb)
- Full instructions sheet (453 kb)
- Φυλλάδιο οδηγιών Full (619 kb)
- Anweisungsblatt Full (456 kb)
- ورقة الإرشادات Full (517 kb)
- Manuale app View Wireless (16695 kb)
- Manuel appli View Wireless (36896 kb)
- Manual app View Wireless (36835 kb)
- Manual View Wireless app (36774 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (37151 kb)
- Installationsanleitung View Wireless (36685 kb)
图纸
Class group
Installation bus systems
Installation bus systems
Class
Switch actuator for bus system
Switch actuator for bus system
Bus system KNX
No
No
Bus system KNX-RF (Radio Frequent)
No
No
Bus system radio frequent
Yes
Yes
Bus system LON
No
No
Bus system Powernet
No
No
Other bus systems
Other
Other
Radio frequent bidirectional
Yes
Yes
Mounting method
Flush-mounted
Flush-mounted
Width in number of modular spacings
0
0
Local operation/hand operation
Yes
Yes
With LED indication
Yes
Yes
Number of digital inputs
0
0
Max. switching power
0 W
0 W
Max. switching power LED
0 W
0 W
Output power
0 W
0 W
Suitable for C-load
No
No
Max. number of switching contacts
1
1
Max. switching current
16 A
16 A
Rated current
16 A
16 A
Rated operating voltage
100,00 - 240,00 V
100,00 - 240,00 V
Different phases connectable
No
No
With bus connection
No
No
Bus module detachable
No
No
Modular expandability
No
No
Degree of protection (IP)
IP40
IP40
00. CE Marking - EU
37. Marking - Morocco
40. Bluetooth technology
42. Zigbee certified
最小订单数量: 1 NR
条形码
8007352732247
1 NR
5.2x3.5x5.3 [cm]
54 [g]
8007352732254
60 NR
27x23x12.5 [cm]
3,422 [g]
