Class group
Domestic switching devices
Class

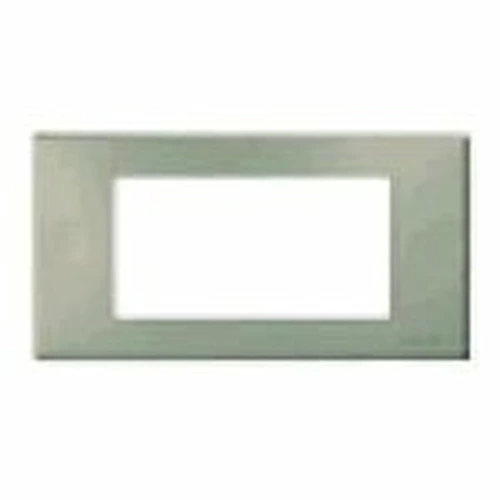

Cover frame for domestic switching devices
Number of units
5
Mounting direction
Horizontal and vertical
Number of units horizontal
5
Number of units vertical
1
Number of modules horizontal (module system)
5
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Surface protection
Anodised
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
1035
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
166,00 mm
Height
75,50 mm
Depth
6,00 mm
Built-in width
166,00 mm
Built-in height
75,50 mm
Diameter bore hole (opening)
0 mm
