08636
Wiring devices / Traditional wiring devices / 8000 / Cover plates

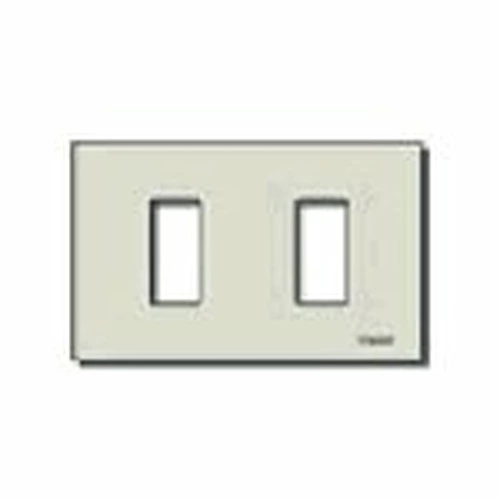

Plate 2M alum. snapfix gold
2-module cover plate for 3-module flush mounting boxes, anodized aluminium, snap fixing, gold. For mounting frame 08531
产品状态
3 - Active
Class group
Domestic switching devices
Domestic switching devices
Class
Cover frame for domestic switching devices
Cover frame for domestic switching devices
Number of units
2
2
Mounting direction
Horizontal and vertical
Horizontal and vertical
Number of units horizontal
2
2
Number of units vertical
1
1
Number of modules horizontal (module system)
2
2
Number of modules vertical (module system)
1
1
With mounting grid
Yes
Yes
Suitable for subfloor installation duct box
Yes
Yes
Suitable for wall duct
Yes
Yes
Suitable for built-in installation
Yes
Yes
Label space/information surface
Yes
Yes
Material
Metal
Metal
Material quality
Aluminium
Aluminium
Halogen free
Yes
Yes
Surface protection
Anodised
Anodised
Surface finishing
Matt
Matt
Colour
Aluminium
Aluminium
RAL-number (similar)
1035
1035
Transparent
No
No
With hinged lid
No
No
Degree of protection (IP)
IP00
IP00
Type of fastening
Clamp mounting
Clamp mounting
Width
120,00 mm
120,00 mm
Height
75,50 mm
75,50 mm
Depth
6,00 mm
6,00 mm
Built-in width
120,00 mm
120,00 mm
Built-in height
75,50 mm
75,50 mm
Diameter bore hole (opening)
0 mm
0 mm
最小订单数量: 20 NR
条形码
8007352042254
1 NR
12x7.5x0.6 [cm]
23.8 [g]
8007352006911
20 NR
13.8x13.4x8.7 [cm]
525.53 [g]
8007352587403
7,200 NR
120x80x105 [cm]
209,896 [g]
