Antibacterial display unit - 02081.AB

Pdf

02081.AB
Smart systems&products / Call-way / Surface mounting components / Non-modular components

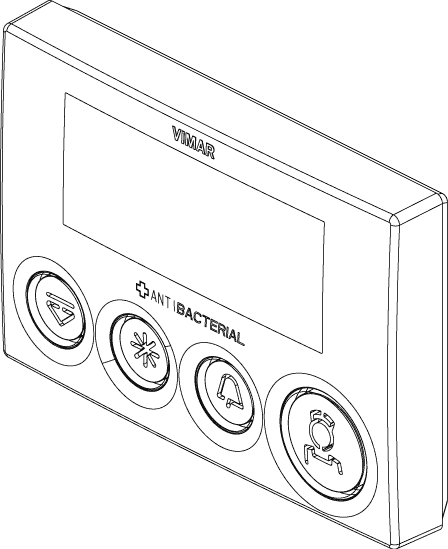

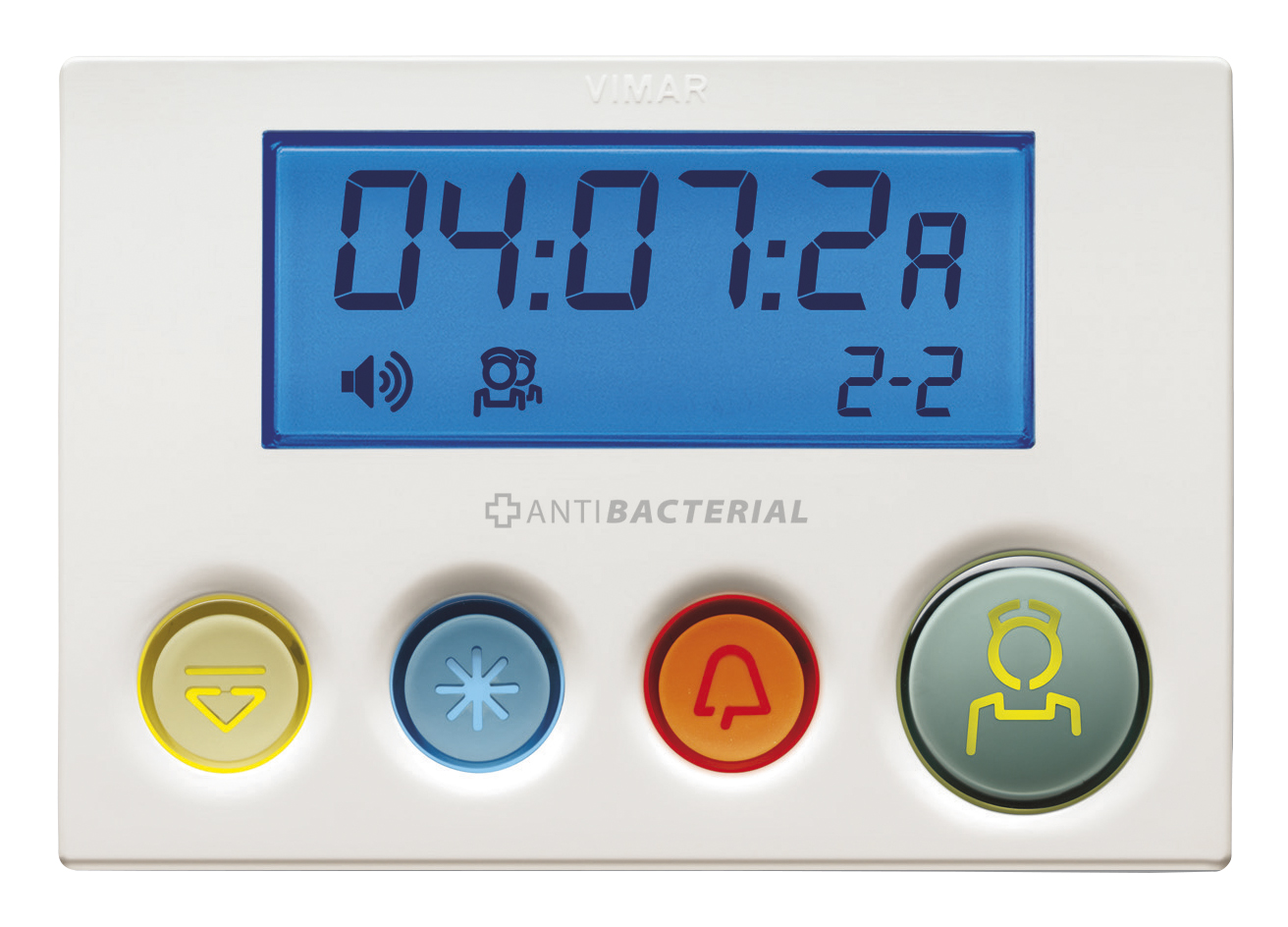

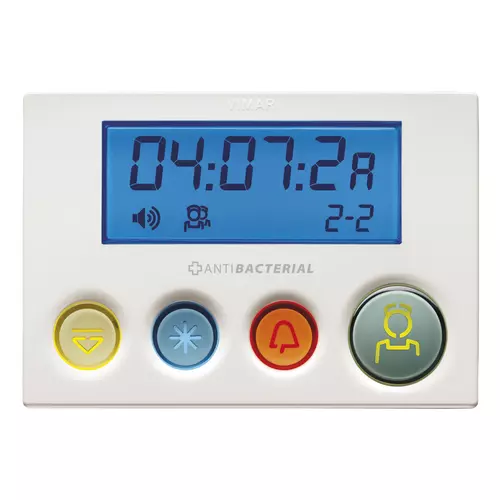

Antibacterial display unit
Display unit for viewing calls, 4 buttons for scrolling, call, priority call and cancellation, supply voltage 24 Vdc (SELV), with antibacterial treatment, white. Equipped with single base for semi-flushed installation for 60 mm distance between centres or 3-module boxes

产品状态
3 - Active

Class group
Domestic switching devices
Class
Central-element clinic-installation
Suitable as central plate
No
Suitable for emergency call button
Single
Suitable for pull contact
No
Suitable for bus connection
Yes
Suitable for medical alarm
Double
Suitable for nurse call station
Yes
Colour
White
RAL-number (similar)
9003

00. CE Marking - EU

37. Marking - Morocco

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352503731
1 NR

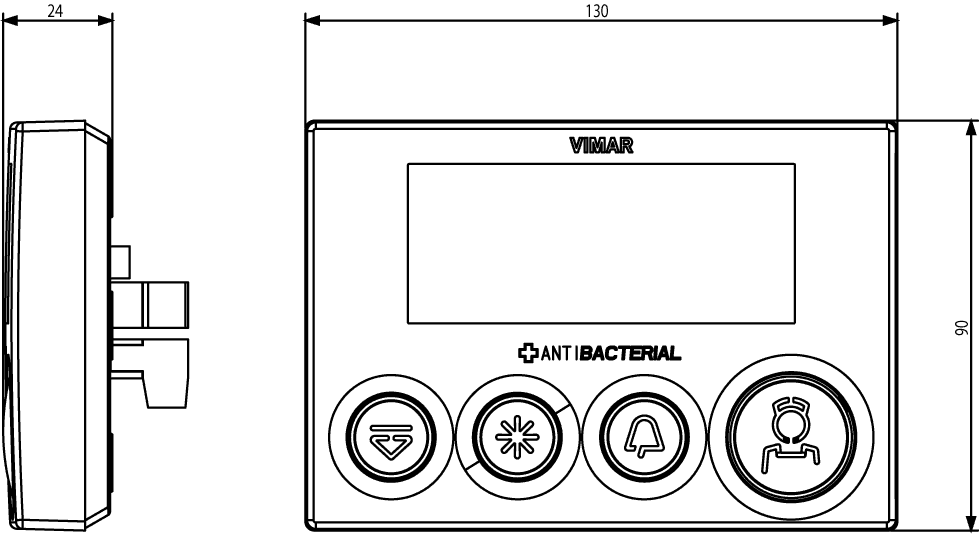

18.2x15.3x7.3 [cm]
346.1 [g]
问题: Can I replace an MD with the new antibacterial MD?
回答: Yes, the new display modules are compatible with existing systems, taking a few precautions with the wiring and configuration.
