Supply unit 100-240Vac 12Vdc 1,25A - 01831.1

Pdf
Vimar - 01831.1 - Supply unit 100-240Vac 12Vdc 1,25A
Vimar - 01831.1 - Supply unit 100-240Vac 12Vdc 1,25A

01831.1
Smart systems&products / By-me Plus / Shared components / DIN devices

Supply unit 100-240Vac 12Vdc 1,25A

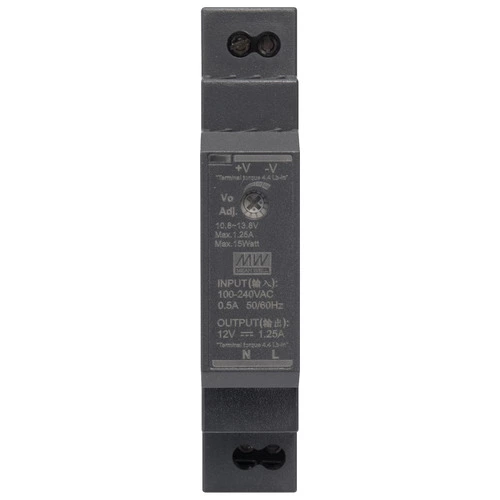

Power supply unit with 12 Vdc 1250 mA output, supply voltage 100-240 V~ 50/60 Hz, installation on DIN rail (60715 TH35), occupies 1 17.5 mm module

产品状态
3 - Active

Class group
Installation bus systems
Class
Power supply for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
Yes
Bus system Powernet
No
Other bus systems
None
Mounting method
Other
Width in number of modular spacings
1
With LED indication
Yes
Bus voltage stockable
No
Number of lines to feed
1
Max. output current
1.250,00 mA

00. CE Marking - EU

37. Marking - Morocco

92. RoHS UAE

99. WEEE Directive

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352613102
1 NR
9.5x5.8x2.5 [cm]
80 [g]
