Vimar - 01721 - By-alarm Plus DT anti-crawl.surf.detect.

01721
Safety / By-alarm Plus / Surface mounting components / Non-modular components

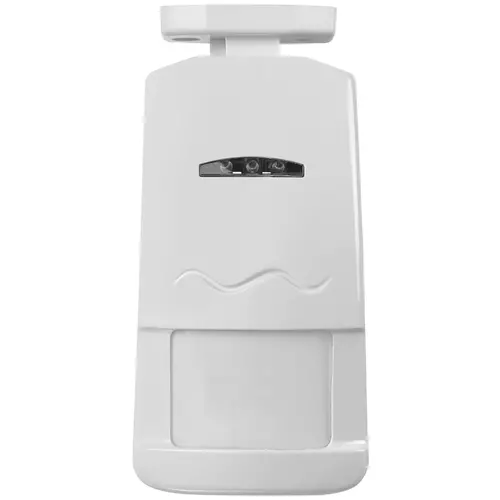

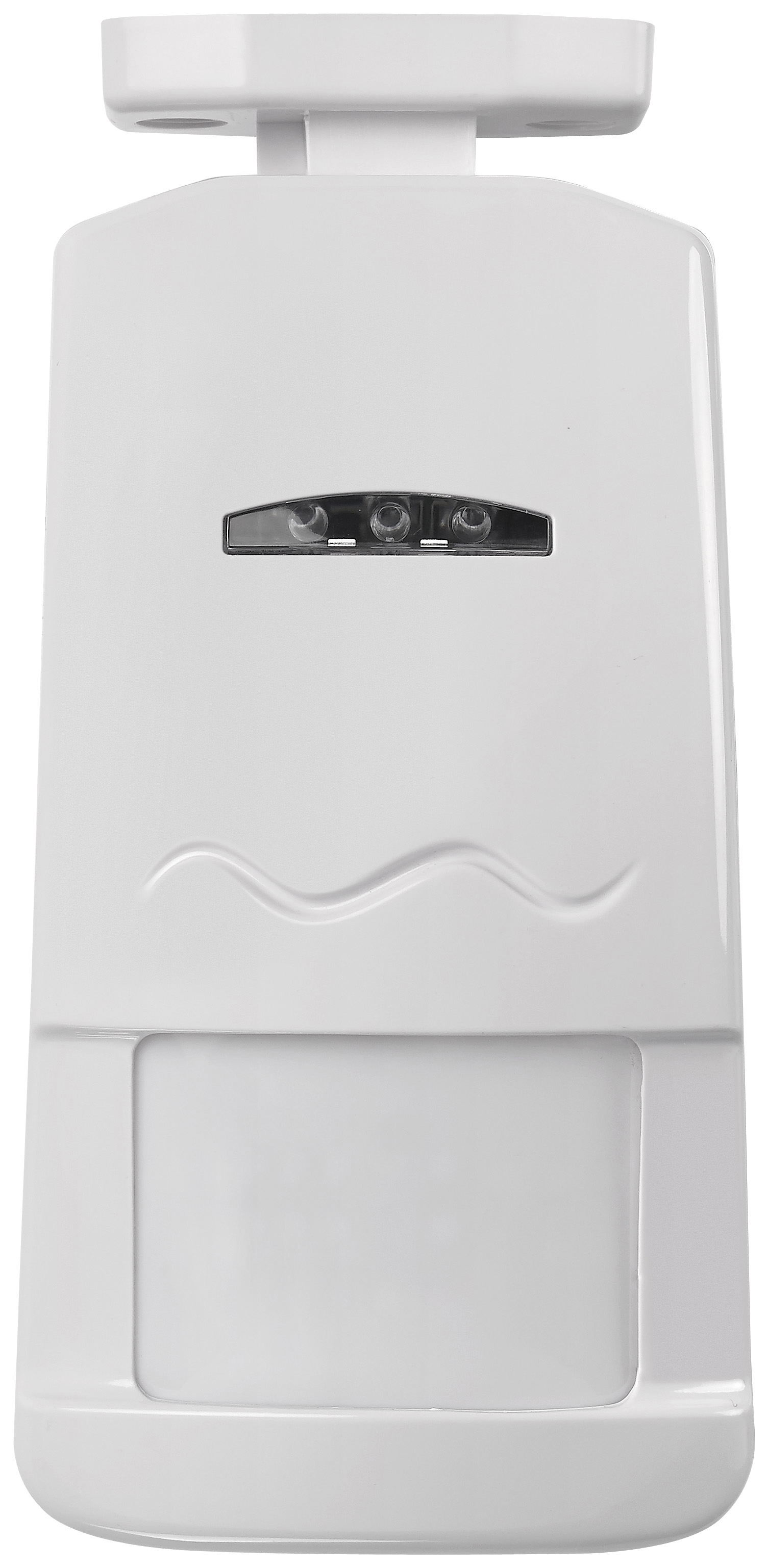

By-alarm Plus DT anti-crawl.surf.detect.
By-alarm Plus passive infrared and microwave double technology detector, masking and crawling detection, SET input to disable microwaves when system not on, surface mounting for indoor use

产品状态
3 - Active

Class group
Alarm installations, emergency call and signalling
Class
Movement detector for danger detection system
Type of messaging
Infrared/microwave (Dual)
Mounting method
Surface mounting
Detection range
90
Operating current
40,00 mA
Operating voltage
12,00 - 12,01 V

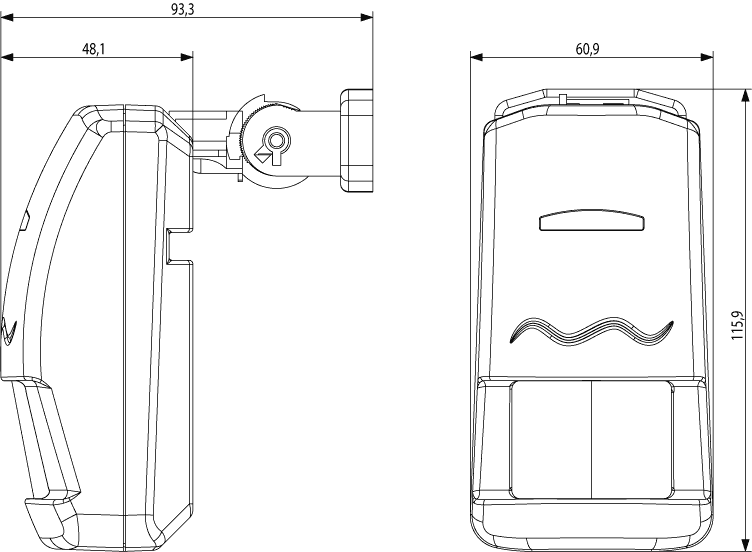

Height
115,90 mm
Width
60,90 mm
Depth
93,30 mm
Characteristic
Distance
Cover monitoring
Yes
Radio system
No

00. CE Marking - EU

21. IMQ-SICUREZZA - Italy

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352548121
1 NR
14.2x6.7x5.9 [cm]
156 [g]
Barcode Qty 100 NR
8007352575325
100 NR
53x18x20 [cm]
15,600 [g]
