12-output 250V 10AX KNX actuator - 01521.1

Pdf
Vimar - 01521.1 - 12-output 250V 10AX KNX actuator
Vimar - 01521.1 - 12-output 250V 10AX KNX actuator

01521.1
Smart systems&products / KNX / Shared components / DIN devices

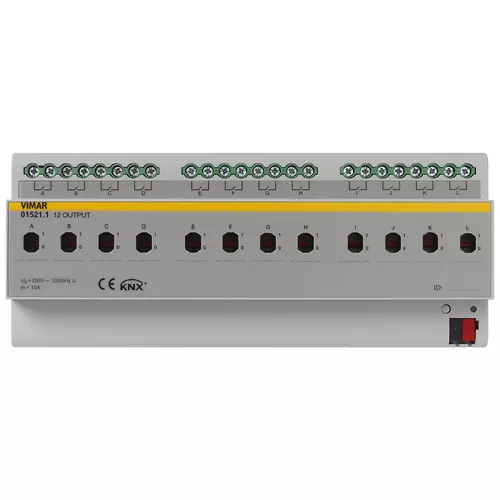

12-output 250V 10AX KNX actuator
Actuator with 12 10 A 250 V~ 50/60 Hz relay outputs for fluorescent lamps, KNX standard, installation on DIN rail (60715 TH35), occupies 12 17,5 mm modules

产品状态
2 - Will be discontinued

其他可选产品

01532
01532 - KNX Secure actuator 16 OUTS 250V 10AX
Class group
Installation bus systems
Class
Actuating drive for bus system
Bus system KNX
Yes
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Radio frequent bidirectional
No
Mounting method
Other
With bus connection
Yes
Temperature control with built-in continuous control
No
Buttons for manual operation at the drive
Yes
Function master/slave
No
Nominal voltage
250 V

00. CE Marking - EU

27. KNX

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352605985
1 NR
23.1x11x8.5 [cm]
698.6 [g]
