Wiring devices / Traditional wiring devices / Shared components / Devices

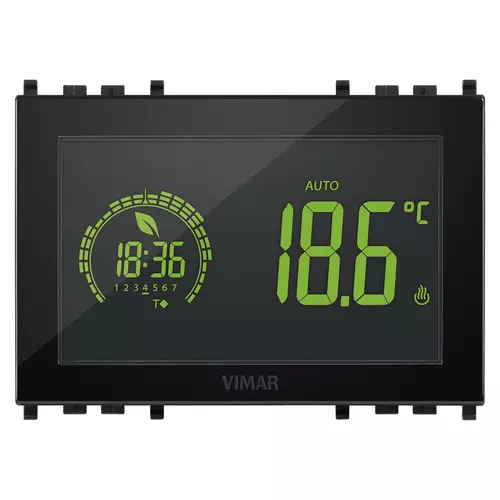

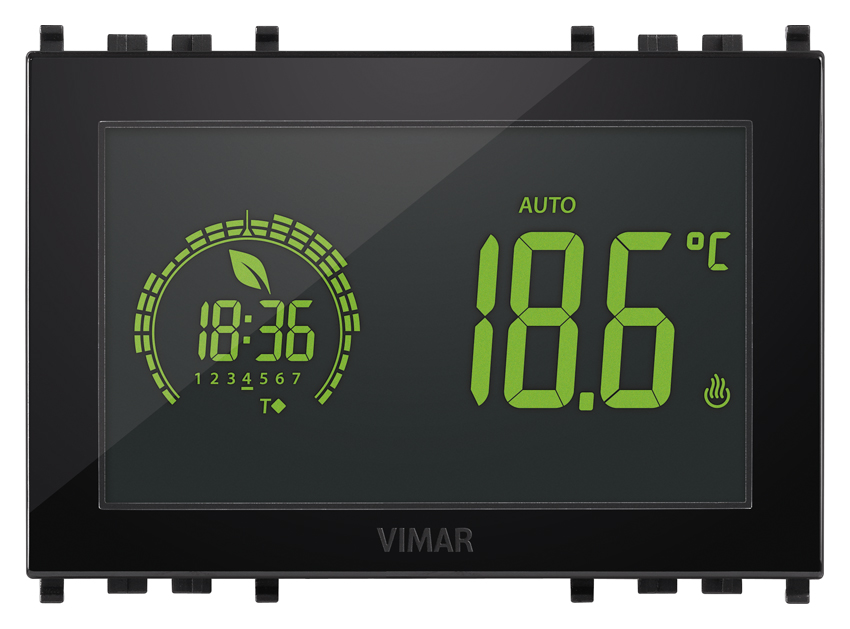

Touch-timer-thermostat 3M 120-230V black
Electronic touchscreen timer-thermostat for ambient temperature control (heating and air-conditioning), locally programmable via dedicated By-clima app, class I temperature control device (contribution 1%) in ON/OFF mode, class IV (contribution 2%) in PID mode, 1 input for external temperature sensor, 1 programmable multifunction input, 1 RJ9 input for energy meter, change-over relay output 5(2) A 230 V~, power supply 120-230 V~ 50/60 Hz, RGB LED backlighting, to be completed with Eikon, Arké or Plana cover plates, black - 3 modules
产品状态
9 - Discontinued
单, 说明书, 文档
- Multilanguage instructions sheet (4910 kb)
- Manuale installatore (10451 kb)
- Manuel installateur (10455 kb)
- Manual del instalador (10450 kb)
- Installer manual (10444 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (10674 kb)
- Installationsanleitung (10453 kb)
- Manuale utente (6761 kb)
- Manuel de l’utilisateur (6763 kb)
- Manual de usuario (6759 kb)
- User Manual (6756 kb)
- Εγχειρίδιο χρήστη (6947 kb)
- Bedienungsanleitung (6761 kb)
图纸
| 问题： | The timer-thermostat replacing an Idea thermostat 16580 will not adapt to the cover plate for surface mounting. |
|---|---|
| 回答： | In order to install the Idea cover plate, simply purchase the mounting frame code 16723 - Arké Idea 3M mounting frame + grey screws. |
