Junction box hollow walls 402x164x73,5mm - V72008

Pdf
Vimar - V72008 - Junction box hollow walls 402x164x73,5mm
Vimar - V72008 - Junction box hollow walls 402x164x73,5mm

V72008
System infrastructure / Enclosures and control units / Junction boxes / Flush mounting

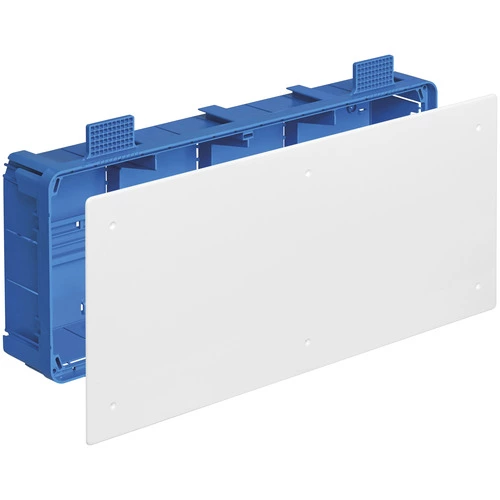

Junction box hollow walls 402x164x73,5mm
Flush mounting junction box for hollow walls with white cover and fixing screws.Dimensions 402x164x73.5 mm

Product Status
3 - Active

Drawings

view encumbered art. V72008
PNG DXF
rear view art. V72008
PNG DXF
3D view art. V72008
PNG DXF
Class group
Connection material (electrotechnical)
Class
Box/housing for built-in mounting in the wall/ceiling
Mounting method
Flush-mounted
Shape
Rectangular
Construction type
Cable junction box
Model
Other
Provided with revolving ring
No
Couplable
Yes
Equipped with
None
Diameter
0 mm
Length
402,00 mm
Width
402,00 mm
Depth
0,00 - 73,50 mm
Inner depth
73,50 mm
For number of electric fittings
0
Mounting switching equipment
Spread
With screws
Yes
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
For tube diameter
Other
Pipe locking
Yes
Pipe locking optional
Yes
Inlet from the rear
Yes
Number of inlets
22
Number of included spouts
0
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Blue
Degree of protection (IP)
IP20
Cover model
Blind cover
Transparent cover
No
Cover attachment
Screwed
Sealable
No
With screening
No
Air tight
No
Max. conductor cross section
0
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None

00. CE Marking - EU

01. IMQ - Italy

50. Product Environm. Profile

96. Electrotechnical expert

Minimum order quantity: 4 NR

Barcode

Barcode Qty 1 NR
8007352589971
1 NR
42.2x22.8x7.6 [cm]
638 [g]
Barcode Qty 4 NR
8007352589988
4 NR
43x33x23 [cm]
3,055 [g]
