Box 2M for Exé flush-wall plate - V71791

Pdf
Vimar - V71791 - Box 2M for Exé flush-wall plate
Vimar - V71791 - Box 2M for Exé flush-wall plate

V71791
System infrastructure / Enclosures and control units / Connector block boxes / Flush mounting

Box 2M for Exé flush-wall plate

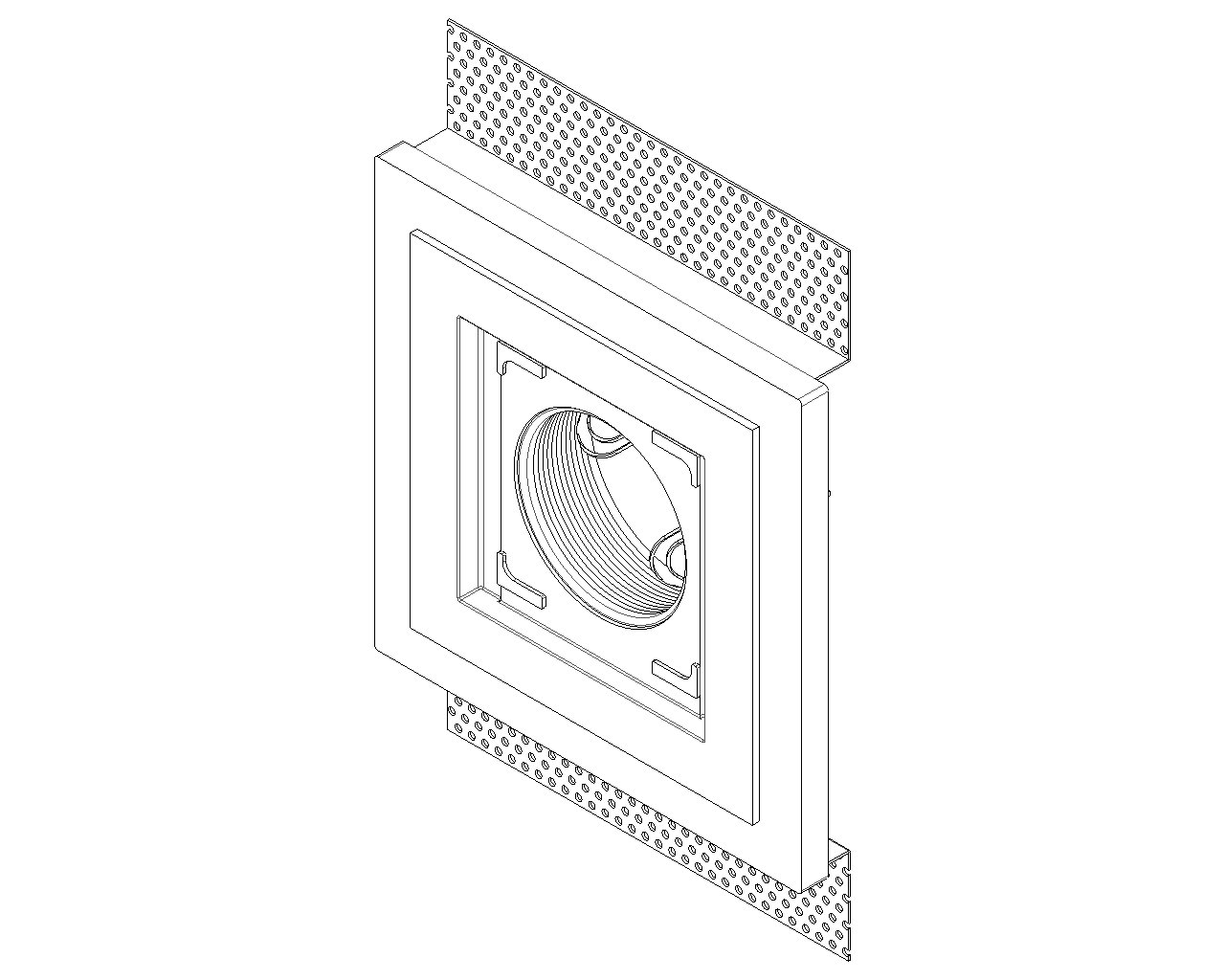

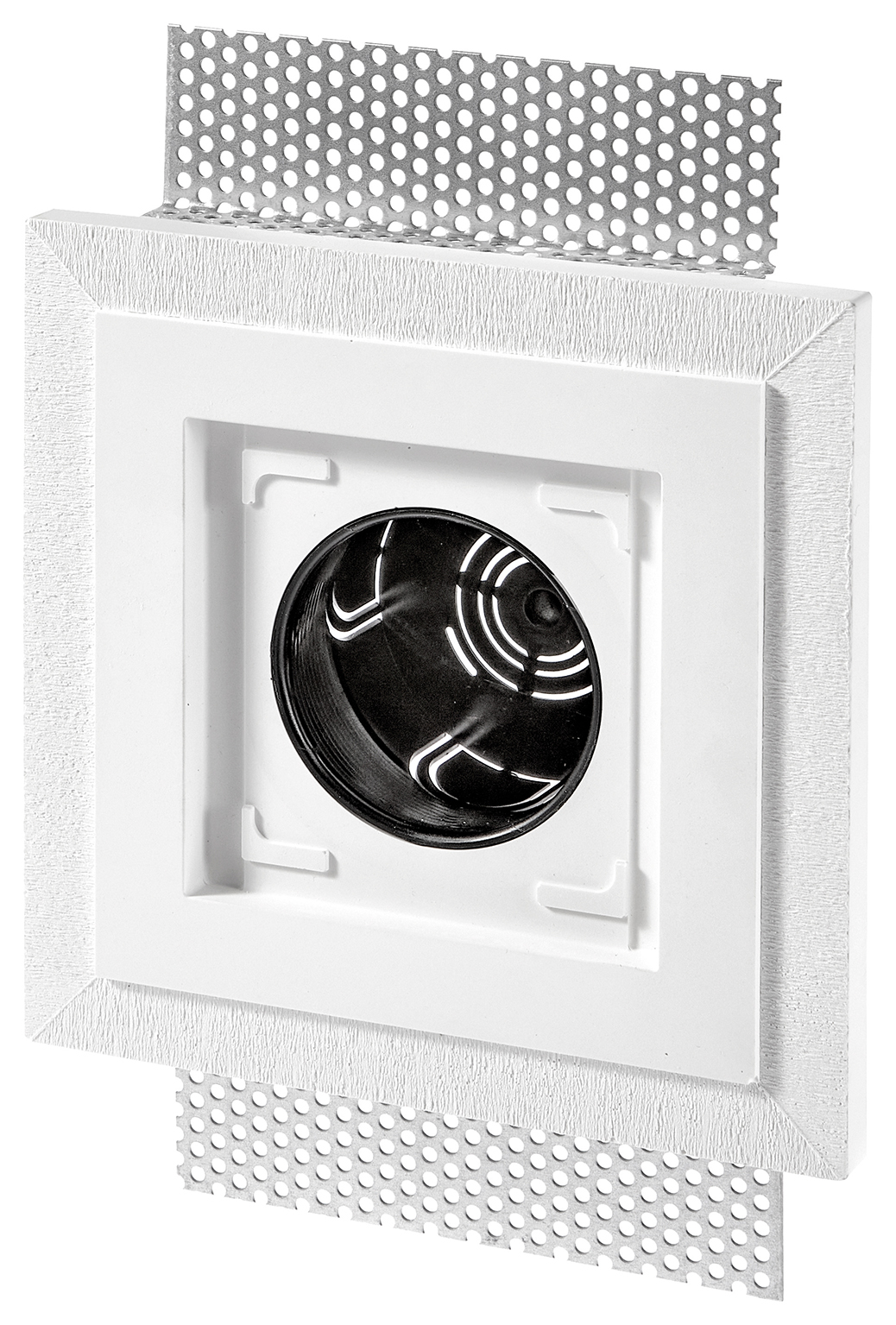

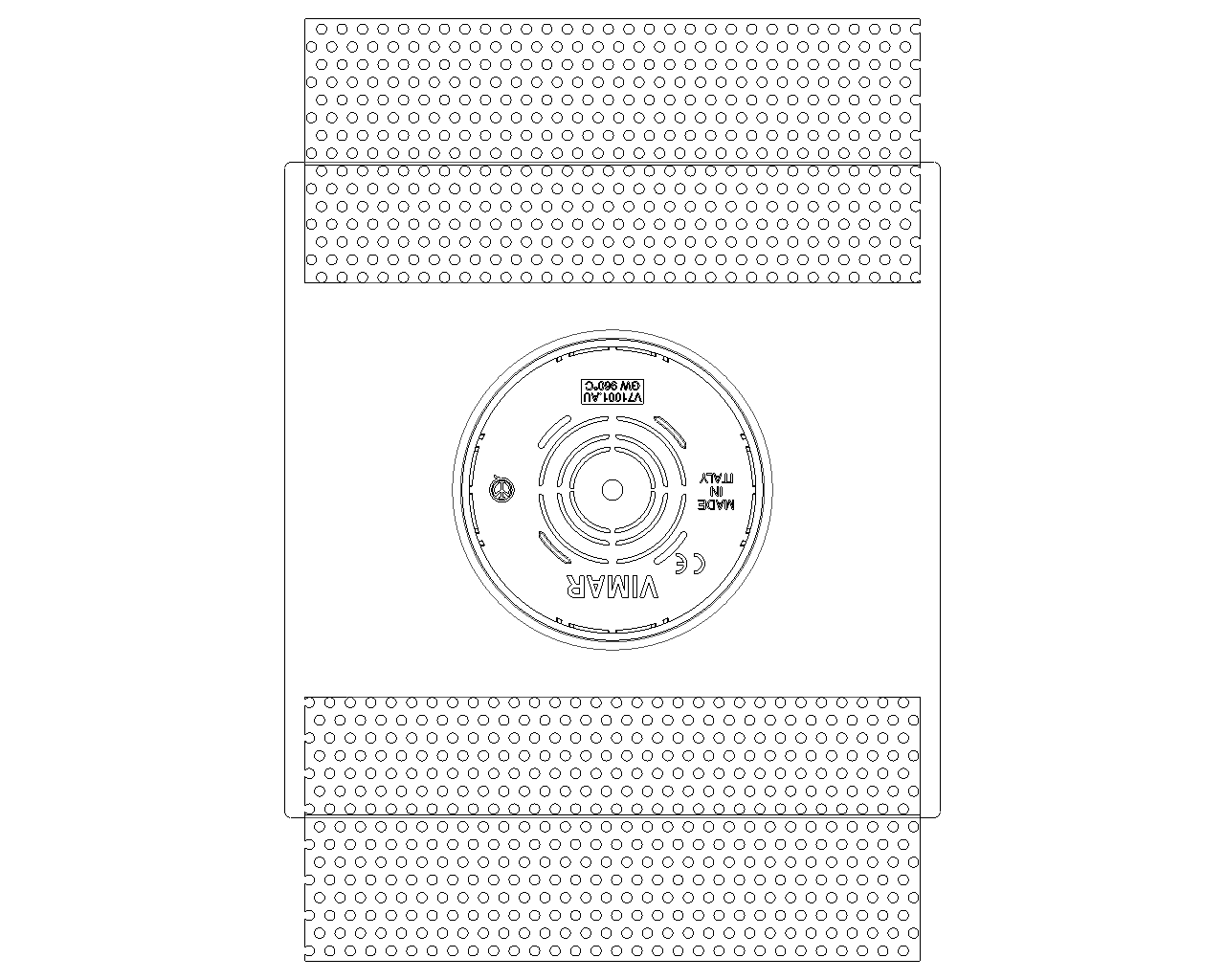

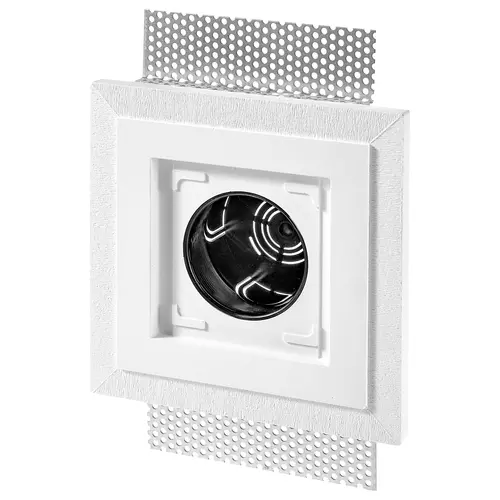

Round ø 60 mm flush mounting box (GW 960 °C) with plaster frame for flush mounting installation of 2-module Exé cover plates on hollow walls

Product Status
3 - Active

You may also be interested in

V71580
V71580 - Accessory for flush-wall plate removing
Class group
Connection material (electrotechnical)
Class
Box/housing for built-in mounting in the wall/ceiling
Mounting method
Hollow wall
Shape
Rectangular
Construction type
Device connection box (round/square)
Model
Other
Provided with revolving ring
No
Couplable
Yes
Equipped with
None
Diameter
0 mm

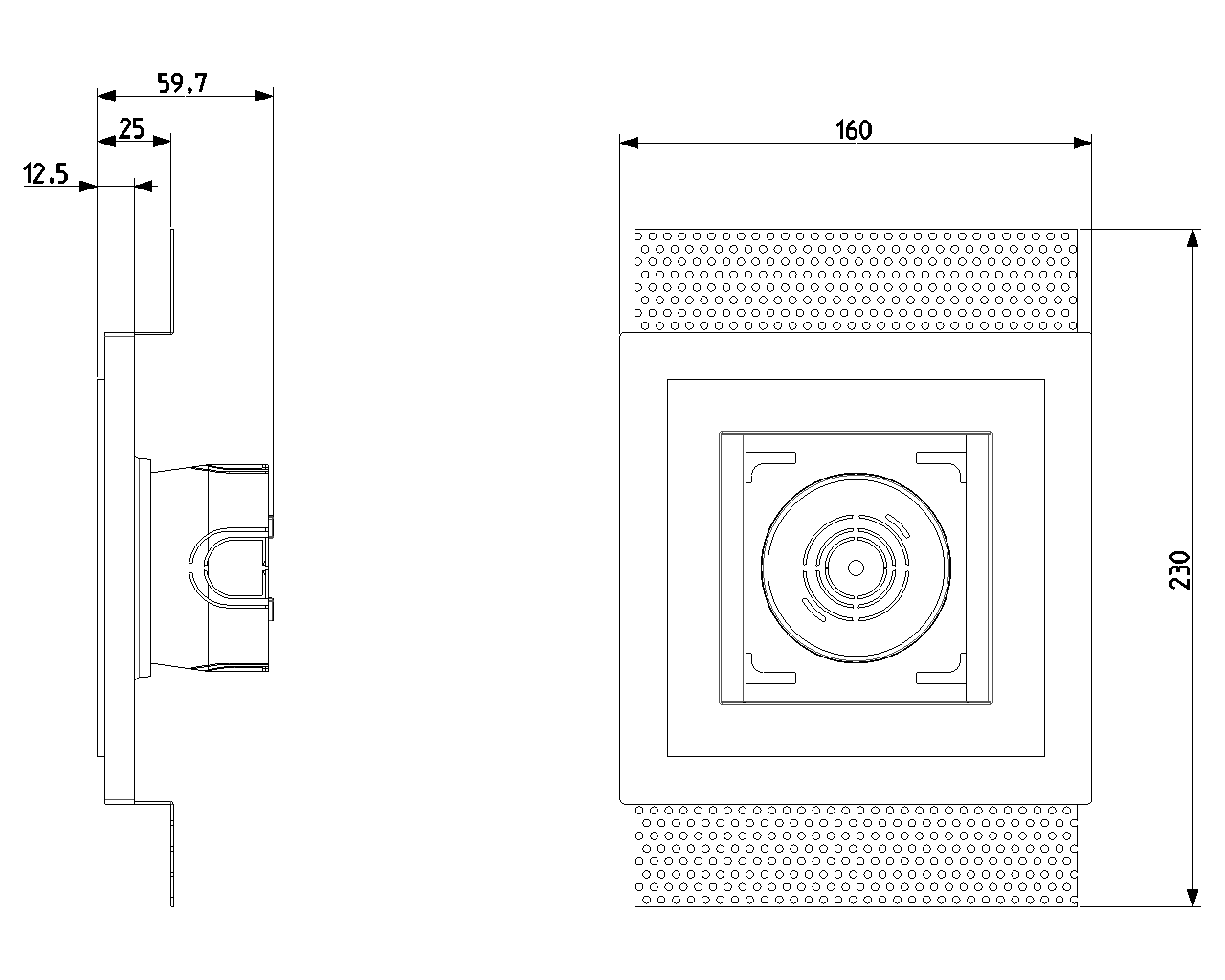

Length
230,00 mm
Width
160,00 mm
Depth
0,00 - 59,70 mm
For number of electric fittings
2
Mounting switching equipment
Screwing
With screws
No
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
For tube diameter
20/25 mm
Pipe locking
No
Pipe locking optional
No
Inlet from the rear
Yes
Number of inlets
12
Number of included spouts
0
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Blue
Degree of protection (IP)
IP00
Cover model
None
Transparent cover
No
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
No
Air tight
No
Max. conductor cross section
0
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352630697
1 NR
27x24x9.8 [cm]
823.2 [g]
Barcode Qty 10 NR
8007352630703
10 NR
50x29x50.5 [cm]
9,020 [g]
