V71706
System infrastructure / Enclosures and control units / Connector block boxes / Flush mounting

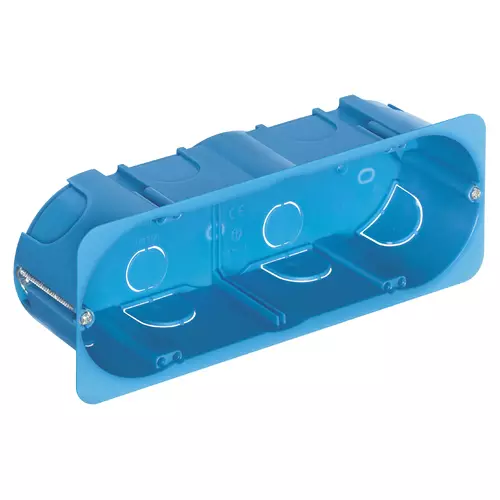

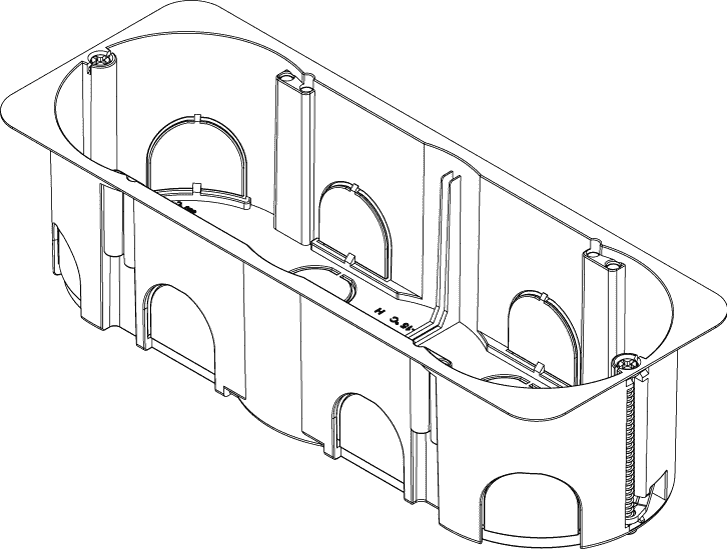

Flush-mount box 6-7M f/hollow walls blue
6-7-module flush mounting box (GW 850 °C), for hollow walls, light blue
- Suitable for several types of hollow walls (e.g. plasterboard, wood, plastic laminate or similar)
- Preparation of the hole with a hollow cutter with a diameter of 68 mm. Hole centring plate incorporated into the back
- Improved retention knockouts, designed for the insertion of pipes with various cross-sections (16, 20 or 25 mm) and metal fins for surface mounting the box on walls with a variable thickness of between 1 and 38 mm
- Fixing lugs for support screws made of metal
- Wide range of accessories available: accessories with a template function for tracing the hole, with joining function for mounting in series and installation on the inside of the wall; internal partitions; decorative covers
Product Status
3 - Active
Class group
Connection material (electrotechnical)
Connection material (electrotechnical)
Class
Box/housing for built-in mounting in the wall/ceiling
Box/housing for built-in mounting in the wall/ceiling
Mounting method
Hollow wall
Hollow wall
Shape
Rectangular
Rectangular
Construction type
Device connection box (round/square)
Device connection box (round/square)
Model
Other
Other
Provided with revolving ring
No
No
Couplable
Yes
Yes
Equipped with
None
None
Diameter
0 mm
0 mm

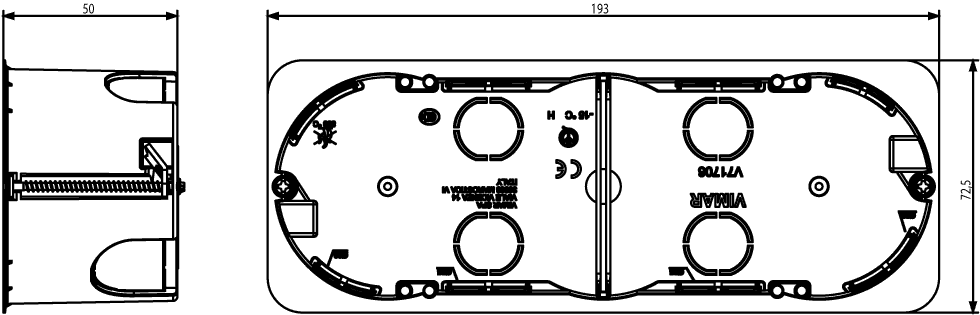

Length
72,50 mm
72,50 mm
Width
193,00 mm
193,00 mm
Depth
0,00 - 50,00 mm
0,00 - 50,00 mm
Inner depth
50,00 mm
50,00 mm
For number of electric fittings
7
7
Mounting switching equipment
Screwing
Screwing
With screws
No
No
Housing feed-through by break-out opening
Yes
Yes
Housing feed-through by seal membrane
No
No
Housing feed-through by nozzle
No
No
Housing feed-through by step membrane
No
No
For tube diameter
20/25 mm
20/25 mm
Pipe locking
No
No
Pipe locking optional
No
No
Inlet from the rear
Yes
Yes
Number of inlets
18
18
Number of included spouts
0
0
Material
Plastic
Plastic
Halogen free
Yes
Yes
Surface protection
Untreated
Untreated
Colour
Blue
Blue
Degree of protection (IP)
IP00
IP00
Cover model
None
None
Transparent cover
No
No
Cover attachment
Screwed
Screwed
Sealable
No
No
Circuit integrity
None
None
With screening
No
No
Air tight
No
No
Max. conductor cross section
0
0
Number of poles of the clamp
0
0
Clamp position fixed
No
No
Luminaire hook mounting
No
No
Nozzle
None
None
Special application
None
None
Minimum order quantity: 5 NR
Barcode
8007352425750
1 NR
19.3x7.2x5 [cm]
54.8 [g]
8007352425767
5 NR
19.3x7.2x25 [cm]
274 [g]
8007352425774
55 NR
59x38.5x24 [cm]
3,640 [g]
| Question: | What is the code for the cover that can be installed on this mounting box? |
|---|---|
| Answer: | Mounting box does not have any covers. The solution is to cover it with a mounting frame, cover plate or blank module. |
