V71631
System infrastructure / Enclosures and control units / Connector block boxes / Flush mounting

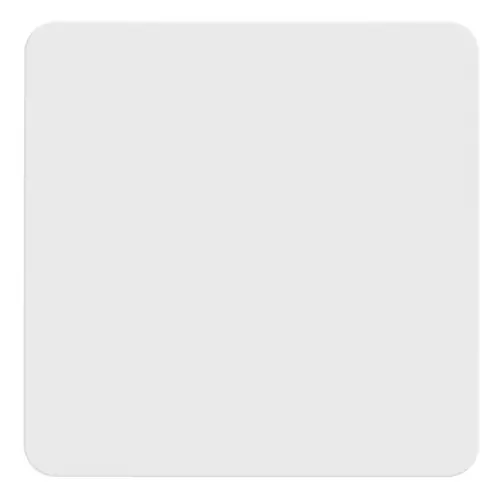

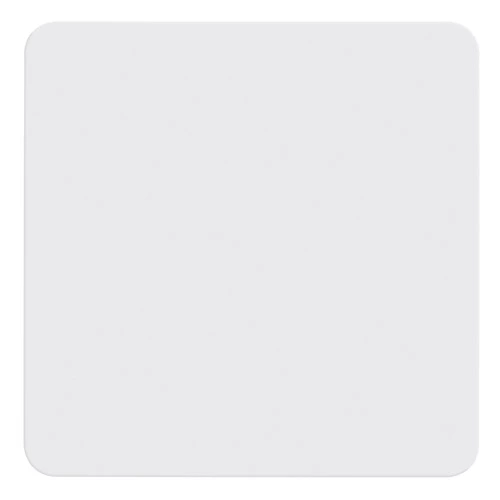

Antimortar flat profile cover 8(4+4)M
Cover for V71318 and V71718 flush mounting boxes, snap fixing to V71328 antimortar cover (provided), white
Product Status
3 - Active
You may also be interested in

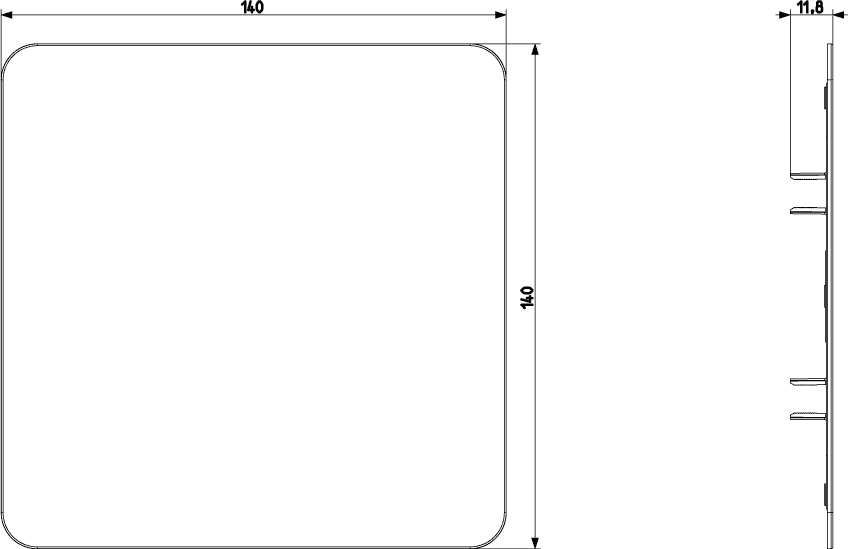

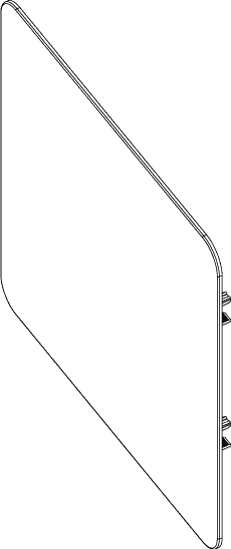

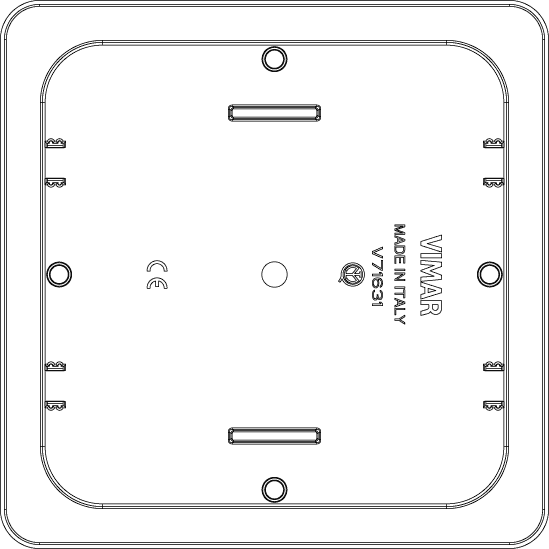

Drawings
Class group
Connection material (electrotechnical)
Connection material (electrotechnical)
Class
Cover for box/housing for built-in mounting in the wall/ceiling
Cover for box/housing for built-in mounting in the wall/ceiling
Diameter
0 mm
0 mm
Length
140,00 mm
140,00 mm
For box-/housing length
130,00 mm
130,00 mm
Width
140,00 mm
140,00 mm
For box-/housing width
124 mm
124 mm
Depth
2,00 mm
2,00 mm
Shape
Rectangular
Rectangular
Type of fastening
Cover for mounting with screws
Cover for mounting with screws
Model
Blind cover
Blind cover
Material
Plastic
Plastic
Halogen free
Yes
Yes
Colour
Other
Other
With screws
Yes
Yes
Sealable
No
No
Minimum order quantity: 10 NR
Barcode
8007352425583
1 NR
14x14x1 [cm]
64.8 [g]
8007352425590
10 NR
28.4x18.4x11.6 [cm]
768.1 [g]
