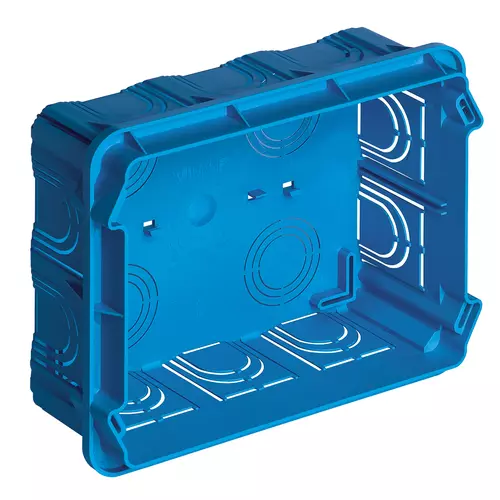

Flush mounting box 12-14M light blue
12/14-module flush mounting box, (Glow Wire 650 °C), for masonry walls, light blue

  • Plenty of space of internal wiring
  • Wide range of accessories available: anti-mortar covers, coupling joints to create multiple series of boxes
  • Knockouts designed for the insertion of pipes with various cross-sections
  • Rack for fixing the dividing screen (patented)
  • Fixing lug of the support screws with zinc-plating treatment to prevent the thread from clogging during installation and favour screwing

Product Status
3 - Active

You may also be interested in

V71551
V71551 - Horiz.dividing screen for flush-mountbox
V71630
V71630 - Cover for V71320 V71620 and V71720

Drawings

view encumbered art. V71320
PNG DXF

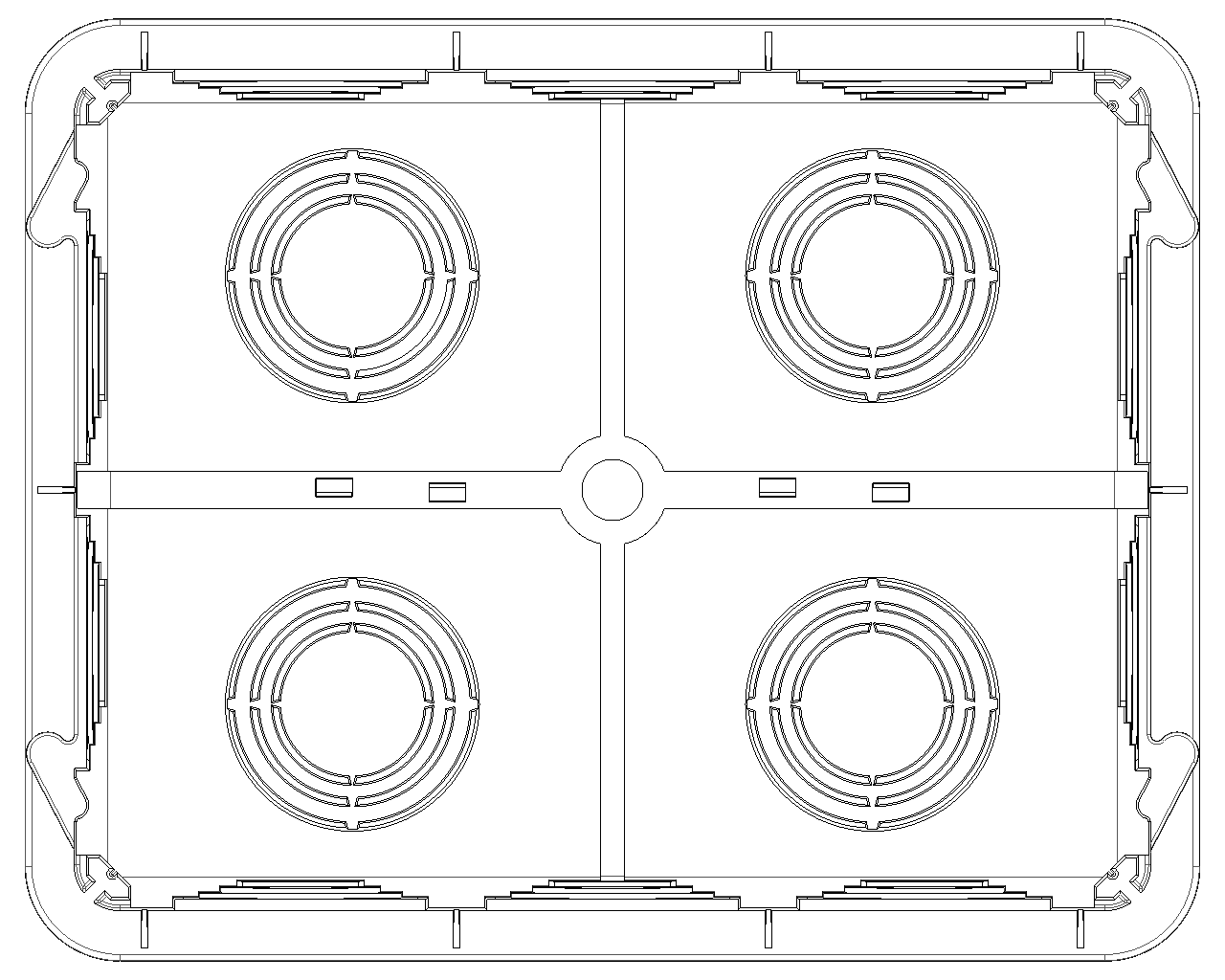

rear view art. V71320
PNG DXF

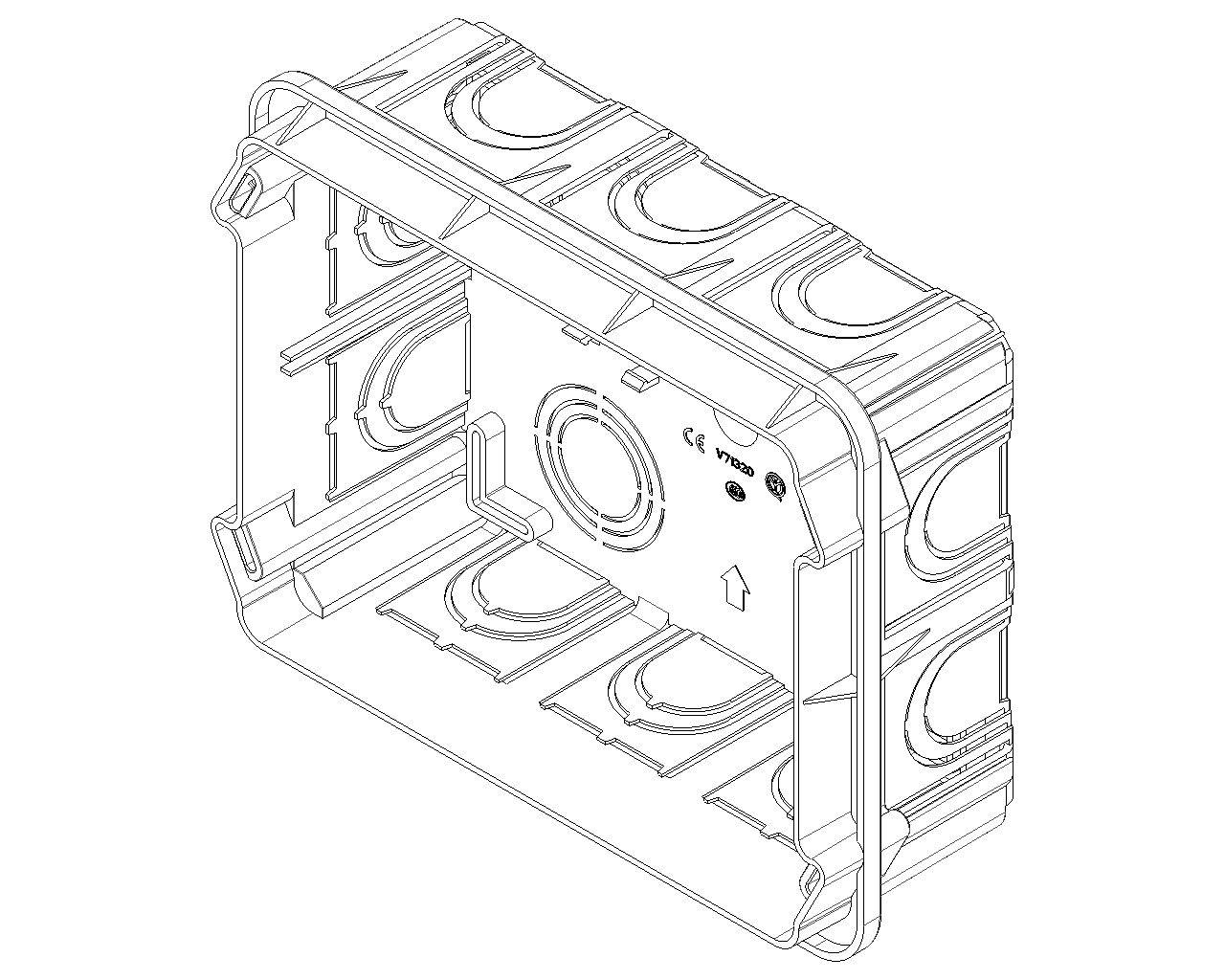

3D view art. V71320
PNG DXF
Class group
Connection material (electrotechnical)
Class
Box/housing for built-in mounting in the wall/ceiling
Mounting method
Flush-mounted
Shape
Rectangular
Construction type
Device connection box (round/square)
Model
Other
Provided with revolving ring
No
Couplable
Yes
Equipped with
None
Diameter
0 mm
Length
134,00 mm
Width
180,00 mm
Depth
0,00 - 70,00 mm
Inner depth
50,00 mm
For number of electric fittings
14
Mounting switching equipment
Screwing
With screws
No
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
For tube diameter
20/25 mm
Pipe locking
No
Pipe locking optional
No
Inlet from the rear
Yes
Number of inlets
14
Number of included spouts
0
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Blue
Degree of protection (IP)
IP00
Cover model
None
Transparent cover
No
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
No
Air tight
No
Max. conductor cross section
0
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None

00. CE Marking - EU

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352117198
1 NR
19x14.4x7 [cm]
129.8 [g]
Barcode Qty 20 NR
8007352122390
20 NR
59x38.5x24 [cm]
3,366 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
