V70108
System infrastructure / Enclosures and control units / Junction boxes / Flush mounting

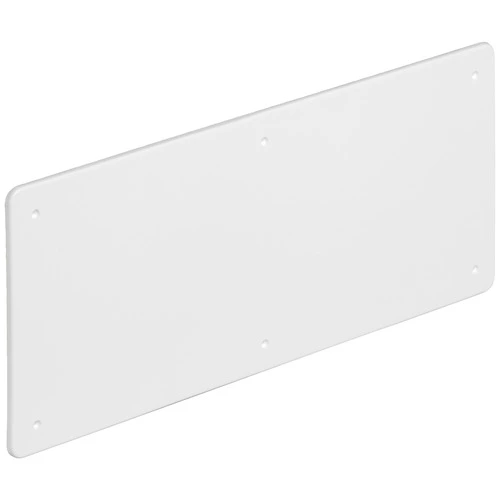

High-resistance cover for V70008
Highly impact resistant cover (20 J) for junction box V70008, white
Product Status
3 - Active
You may also be interested in
Drawings
Class group
Connection material (electrotechnical)
Connection material (electrotechnical)
Class
Cover for box/housing for built-in mounting in the wall/ceiling
Cover for box/housing for built-in mounting in the wall/ceiling
Diameter
0 mm
0 mm
Length
179,00 mm
179,00 mm
For box-/housing length
154,00 mm
154,00 mm
Width
416,00 mm
416,00 mm
For box-/housing width
391 mm
391 mm
Depth
5,30 mm
5,30 mm
Shape
Rectangular
Rectangular
Type of fastening
Cover for mounting with screws
Cover for mounting with screws
Model
Blind cover
Blind cover
Material
Plastic
Plastic
Halogen free
Yes
Yes
Colour
White
White
With screws
Yes
Yes
Sealable
No
No
Minimum order quantity: 5 NR
Barcode
8007352082168
1 NR
41.6x17.9x0.6 [cm]
189.4 [g]
8007352084483
5 NR
41.6x17.9x3 [cm]
945.2 [g]
8007352084490
65 NR
47.5x27x29 [cm]
12,680 [g]
Share
Legal
Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
