V70104
System infrastructure / Enclosures and control units / Junction boxes / Flush mounting
High-resistance cover for V70004

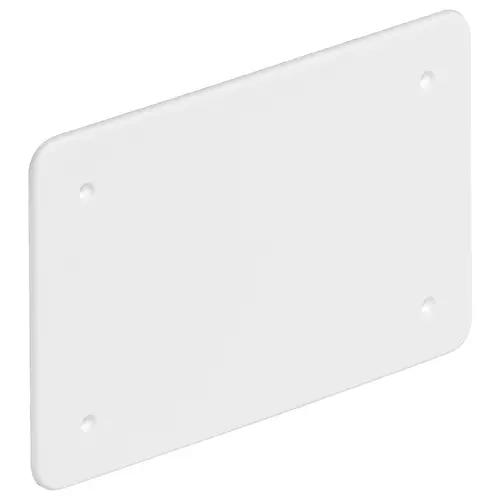

Highly impact resistant cover (20 J) for junction box V70004, white
Product Status
3 - Active
You may also be interested in

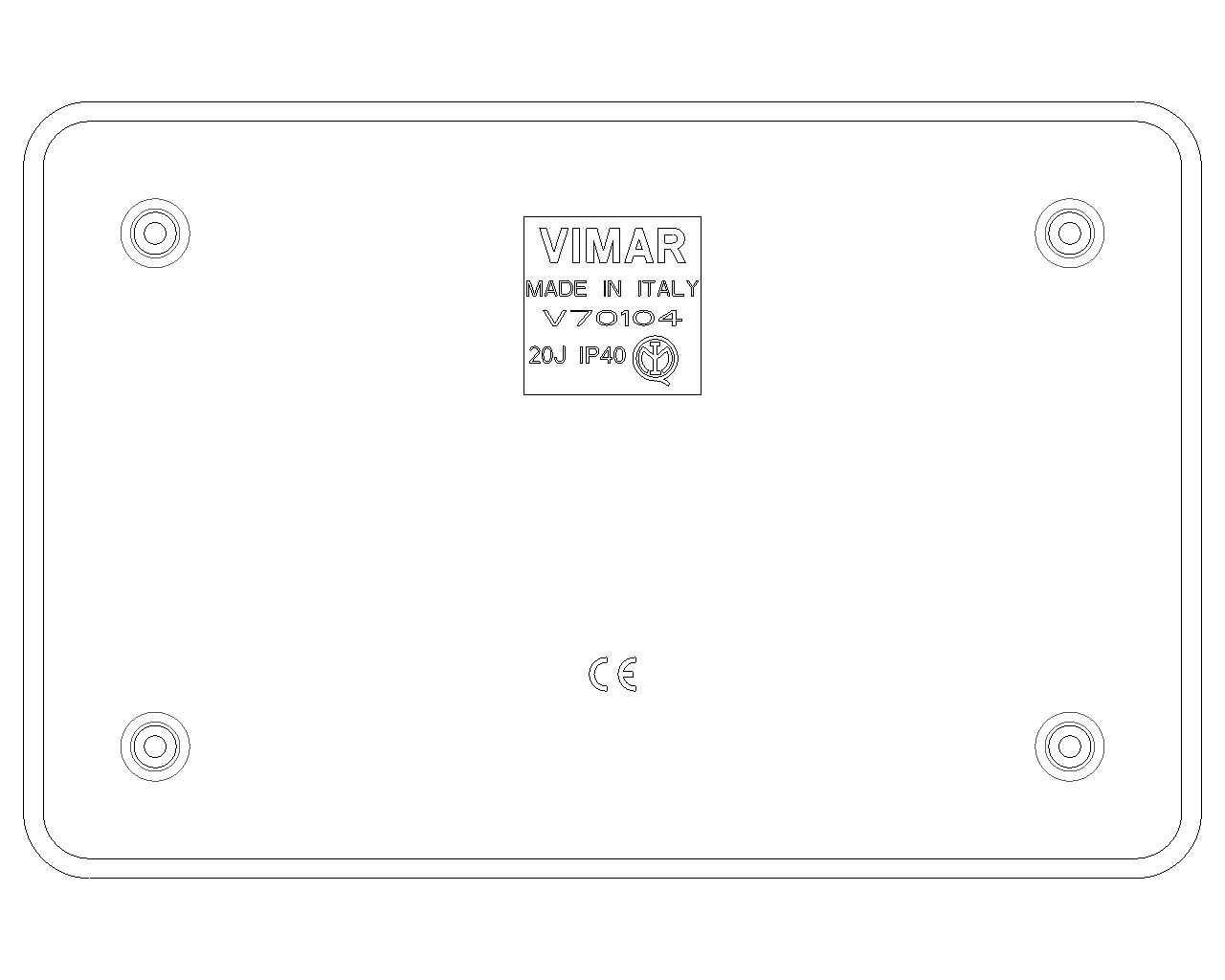

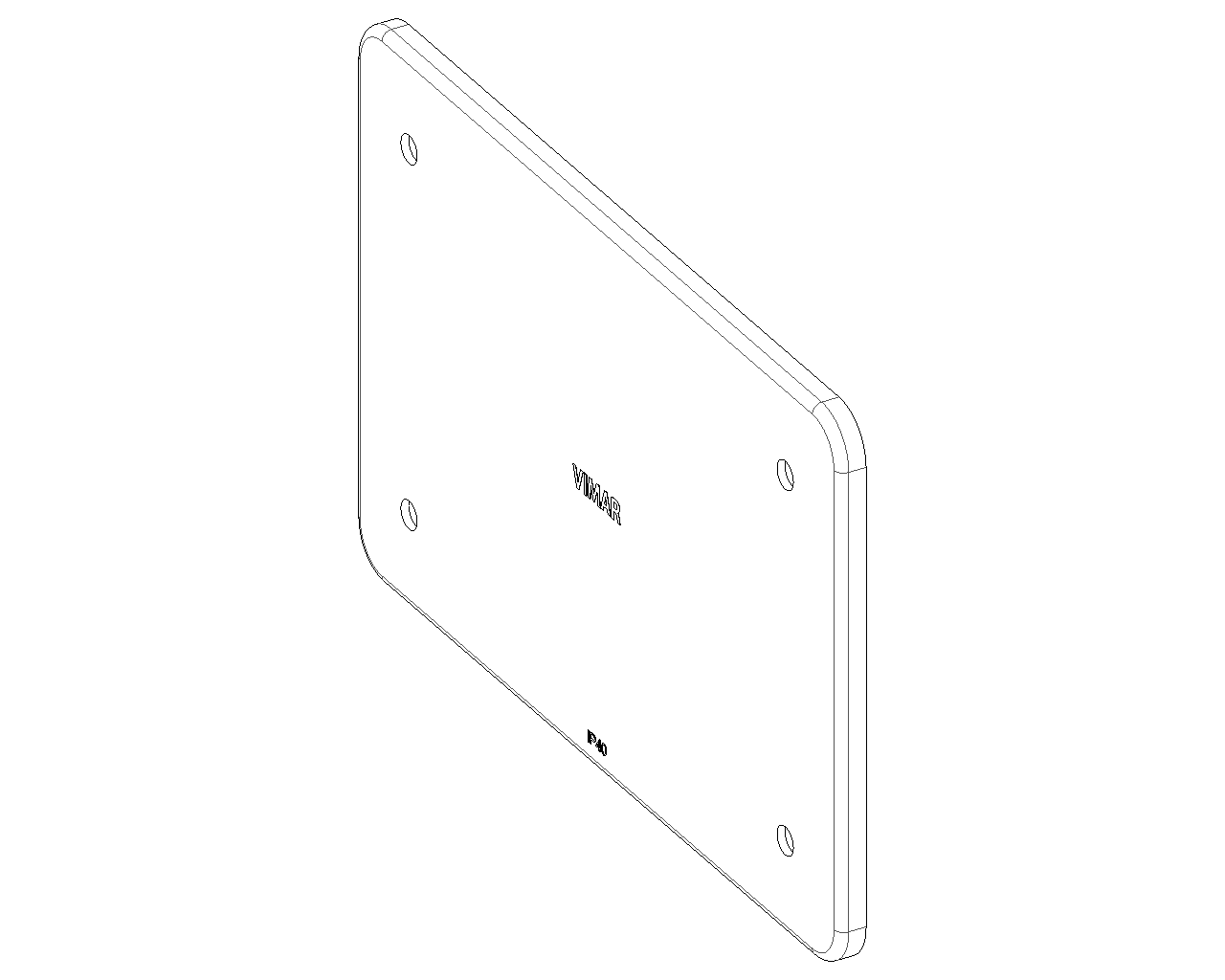

Drawings
Class group
Connection material (electrotechnical)
Connection material (electrotechnical)
Class
Cover for box/housing for built-in mounting in the wall/ceiling
Cover for box/housing for built-in mounting in the wall/ceiling
Diameter
0 mm
0 mm
Length
118,00 mm
118,00 mm
For box-/housing length
92,00 mm
92,00 mm
Width
179,00 mm
179,00 mm
For box-/housing width
154 mm
154 mm
Depth
5,30 mm
5,30 mm
Shape
Rectangular
Rectangular
Type of fastening
Cover for mounting with screws
Cover for mounting with screws
Model
Blind cover
Blind cover
Material
Plastic
Plastic
Halogen free
Yes
Yes
Colour
White
White
With screws
Yes
Yes
Sealable
No
No
Minimum order quantity: 10 NR
Barcode
8007352082120
1 NR
17.9x11.8x0.6 [cm]
51.62 [g]
8007352084407
10 NR
17.9x11.8x6 [cm]
516.2 [g]
8007352084414
60 NR
35x22.5x15.5 [cm]
3,331.93 [g]
