Flush junction box 515x292x80mm - V70011

Pdf
Vimar - V70011 - Flush junction box 515x292x80mm
Vimar - V70011 - Flush junction box 515x292x80mm

V70011
System infrastructure / Enclosures and control units / Junction boxes / Flush mounting

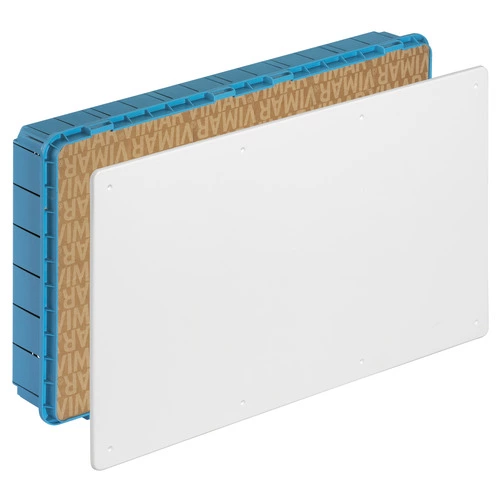

Flush junction box 515x292x80mm
Flush mounting junction box with white cover and fixing screws. Supplied with 5 dividing screens. Dimensions 515x292x80 mm

Product Status
3 - Active

You may also be interested in

V70111
V70111 - High-resistance cover for V70011
V70191
V70191 - Joint plate for junction boxes yellow
V70198
V70198 - Junction box cover screw 30mm
V70199
V70199 - Junction box cover screw 50mm

Drawings

view encumbered art. V70011
PNG DXF
rear view art. V70011
PNG DXF
3D view art. V70011
PNG DXF
Class group
Connection material (electrotechnical)
Class
Box/housing for built-in mounting in the wall/ceiling
Mounting method
Flush-mounted
Shape
Rectangular
Construction type
Device connection box (round/square)
Model
Other
Provided with revolving ring
No
Couplable
Yes
Equipped with
None
Diameter
0 mm
Length
515,00 mm
Width
515,00 mm
Depth
0,00 - 80,00 mm
Inner depth
80,00 mm
For number of electric fittings
0
Mounting switching equipment
Spread
With screws
No
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
For tube diameter
Other
Pipe locking
No
Pipe locking optional
No
Inlet from the rear
Yes
Number of inlets
48
Number of included spouts
0
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Blue
Degree of protection (IP)
IP00
Cover model
Blind cover
Transparent cover
No
Cover attachment
Screwed
Sealable
No
Circuit integrity
None
With screening
No
Air tight
No
Max. conductor cross section
0
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
Special application
None

00. CE Marking - EU

01. IMQ - Italy

50. Product Environm. Profile

96. Electrotechnical expert

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352082090
1 NR
53.4x31.2x8.6 [cm]
1,374.13 [g]
Barcode Qty 5 NR
8007352115675
5 NR
59x39x44 [cm]
7,858.67 [g]
Barcode Qty 80 NR
8007352352520
80 NR
80x120x190 [cm]
133,000 [g]
