Flush mounting box for V53172 - V53372

Pdf
Vimar - V53372 - Flush mounting box for V53172
Vimar - V53372 - Flush mounting box for V53172

V53372
System infrastructure / Enclosures and control units / Switchboards / Flush mounting

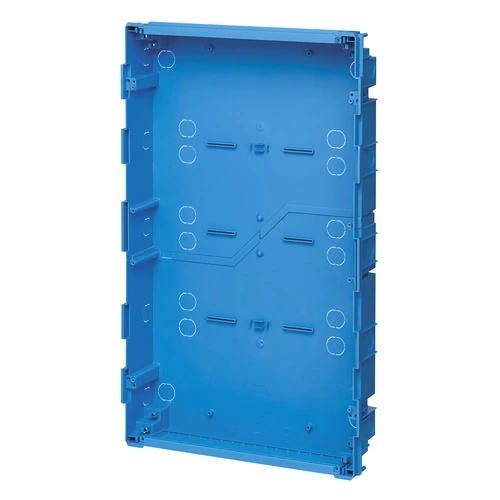

Flush mounting box for V53172
Flush mounting box for 72-module consumer unit (GW 650 °C) for masonry walls, light blue. Dimensions 426x723x100 mm

Product Status
3 - Active

Class group
Distribution boards
Class
Empty cabinet
Mounting method
Flush-mounted
Type of covering
None
Cover model
None
Type of door
None
Transparent cover/door
No
With lock
No
Nominal current (In)
0 A
Height
723 mm
Width
426 mm
Depth
100,00 mm
Built-in depth
100,00 mm
Inner depth
98,00 mm
Colour
Other
RAL-number
0
Number of modules
72
Number of rows
4
Width in number of modular spacings
72
Number of openings for flange plates
0
Extension possible
No
Number of conduit inlets
26
Housing material
Plastic
Surface protection
Untreated
With mounting plate
No
Suitable for outdoor use
No
Suitable for lightning protection
No
Degree of protection (IP)
IP40
Protection class
II
Circuit integrity
None

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 3 NR

Barcode

Barcode Qty 1 NR
8007352509979
1 NR
42.6x72x10 [cm]
1,591.1 [g]
Barcode Qty 3 NR
8007352509986
3 NR
72x31x43 [cm]
5,950.8 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
