IP40 flush consumer unit 36M +door white - V52436

Pdf
Vimar - V52436 - IP40 flush consumer unit 36M +door white
Vimar - V52436 - IP40 flush consumer unit 36M +door white

V52436
System infrastructure / Enclosures and control units / Switchboards / Flush mounting

IP40 flush consumer unit 36M +door white

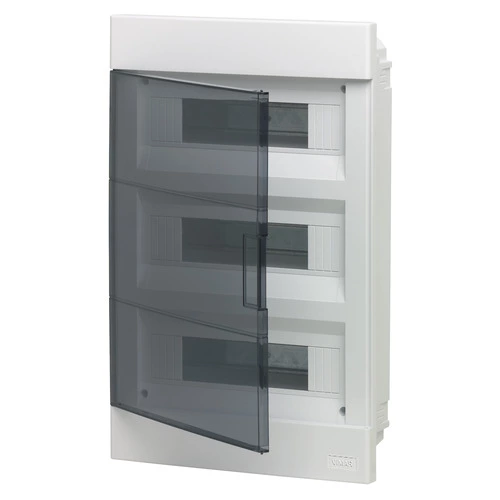

Flush mounting consumer unit with vertically hinged transparent door, 36 modules, RAL 9003 white. Pre-set for support for earth terminal block V51863

Product Status
2 - Will be discontinued

Class group
Distribution boards
Class
Small distribution board
Mounting method
Flush-mounted
Number of rows
3
Width in number of modular spacings
36
Type of covering
Door
Cover model
Closed
Transparent cover/door
Yes
With lock
No
Housing material
Plastic
Built-in depth
79,00 mm
Inner depth
99,00 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
No
EMC-version
No
Colour
White
RAL-number
0
Degree of protection (IP)
IP40
Height
470,00 mm
Width
300,00 mm
Depth
100,00 mm

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352152755
1 NR
30x47x10 [cm]
1,596 [g]
Barcode Qty 4 NR
8007352152762
4 NR
48.3x43x34 [cm]
7,316.67 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
