IP40 flush consumer unit 24M +door white - V52424

Pdf
Vimar - V52424 - IP40 flush consumer unit 24M +door white
Vimar - V52424 - IP40 flush consumer unit 24M +door white

V52424
System infrastructure / Enclosures and control units / Switchboards / Flush mounting

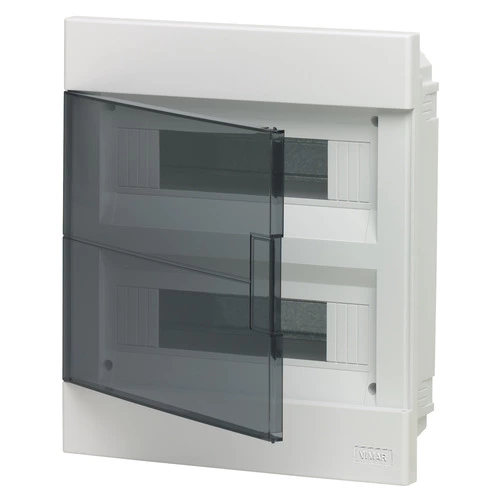

IP40 flush consumer unit 24M +door white
Flush mounting consumer unit with vertically hinged transparent door, 24 modules, RAL 9003 white. Pre-set for support for earth terminal block V51863

Product Status
2 - Will be discontinued

Class group
Distribution boards
Class
Small distribution board
Mounting method
Flush-mounted
Number of rows
2
Width in number of modular spacings
24
Type of covering
Door
Cover model
Closed
Transparent cover/door
Yes
With lock
No
Housing material
Plastic
Built-in depth
79,00 mm
Inner depth
99,00 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
No
EMC-version
No
Colour
White
RAL-number
0
Degree of protection (IP)
IP40
Height
345,00 mm
Width
300,00 mm
Depth
100,00 mm

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352152731
1 NR
30x34.5x10 [cm]
1,123.13 [g]
Barcode Qty 5 NR
8007352152748
5 NR
49x43x34.2 [cm]
6,635.33 [g]
