IP55 surface consumer unit 36M+door grey - V51136

Pdf
Vimar - V51136 - IP55 surface consumer unit 36M+door grey
Vimar - V51136 - IP55 surface consumer unit 36M+door grey

V51136
System infrastructure / Enclosures and control units / Switchboards / Surface mounting

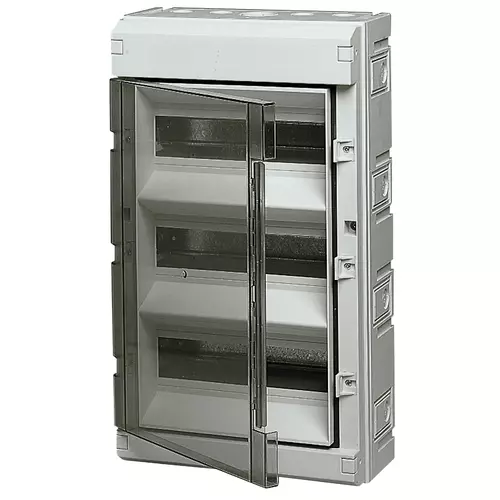

IP55 surface consumer unit 36M+door grey
Surface mounting consumer unit with horizontally hinged transparent door, 36 modules, RAL 7035 grey. Adjustable DIN (60715 TH35) rail to accomodate non-standard products. Screwcaps for double insulation. Pre-set for support for earth terminal block V51856. It can be used with cable entry V51790 and adjoined to additional consumer units with joining accessories V51905 or V51912

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

Class group
Distribution boards
Class
Small distribution board
Mounting method
Surface mounted
Number of rows
3
Width in number of modular spacings
36
Type of covering
Door
Cover model
Closed
Transparent cover/door
Yes
With lock
No
Housing material
Plastic
Built-in depth
0,00 mm
Inner depth
139,00 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
No
EMC-version
No
Colour
Grey
RAL-number
0
Degree of protection (IP)
IP55
Height
500,00 mm
Width
285,00 mm
Depth
140,00 mm

00. CE Marking - EU

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352079014
1 NR
28.5x50x14 [cm]
2,702 [g]
Barcode Qty 3 NR
8007352491748
3 NR
61x41.5x35 [cm]
8,751.33 [g]
