IP40 surface consumer unit 36M +door - V50436

Pdf
Vimar - V50436 - IP40 surface consumer unit 36M +door
Vimar - V50436 - IP40 surface consumer unit 36M +door

V50436
System infrastructure / Enclosures and control units / Switchboards / Surface mounting

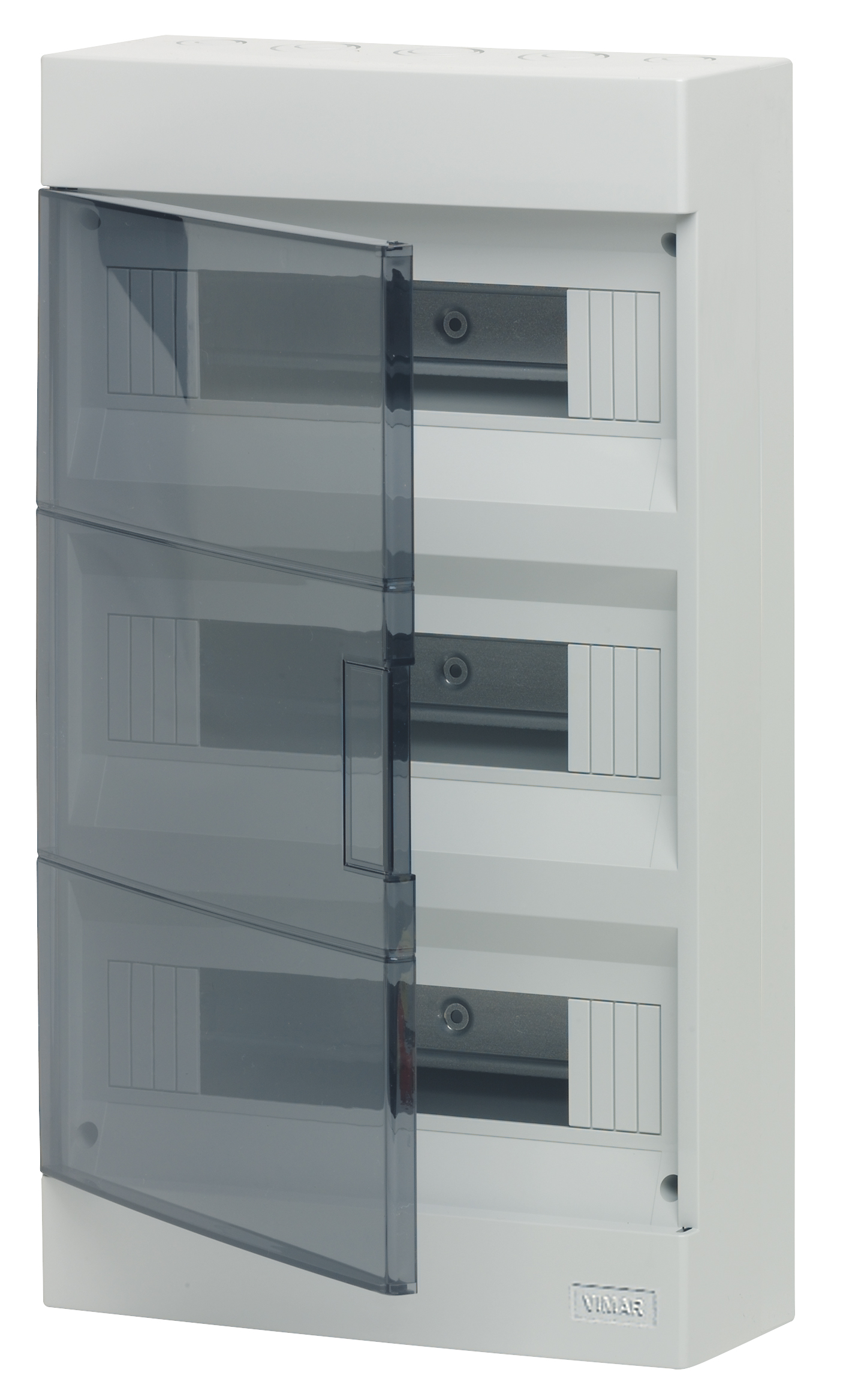

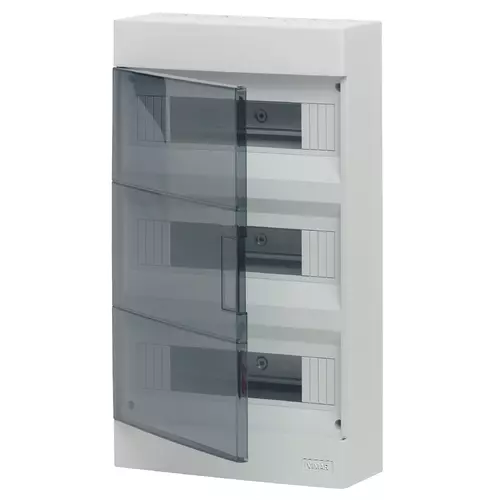

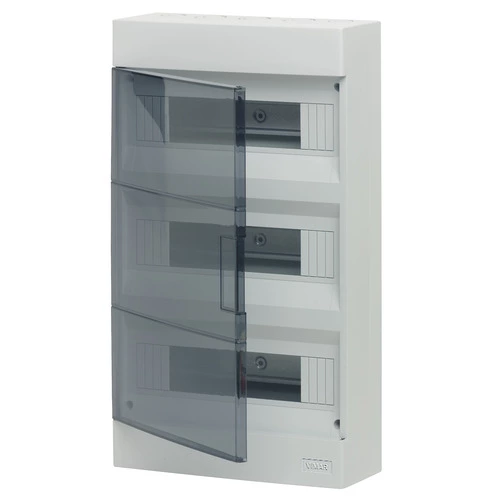

IP40 surface consumer unit 36M +door
Surface mounting consumer unit with vertically hinged transparent door, 36 modules, top and bottom knockouts, RAL 7035 grey. Pre-set for support for earth terminal block V51862

Product Status
2 - Will be discontinued

Class group
Distribution boards
Class
Small distribution board
Mounting method
Surface mounted
Number of rows
3
Width in number of modular spacings
36
Type of covering
Door
Cover model
Closed
Transparent cover/door
Yes
With lock
No
Housing material
Plastic
Built-in depth
0,00 mm
Inner depth
99,00 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
No
EMC-version
No
Colour
Grey
RAL-number
0
Degree of protection (IP)
IP40
Height
450,00 mm
Width
255,00 mm
Depth
100,00 mm

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352152656
1 NR
25.5x45x10 [cm]
1,410 [g]
Barcode Qty 3 NR
8007352491717
3 NR
61x41.5x35 [cm]
4,763.76 [g]
