IP40 surface consumer unit 8M +door - V50408

Pdf
Vimar - V50408 - IP40 surface consumer unit 8M +door
Vimar - V50408 - IP40 surface consumer unit 8M +door

V50408
System infrastructure / Enclosures and control units / Switchboards / Surface mounting

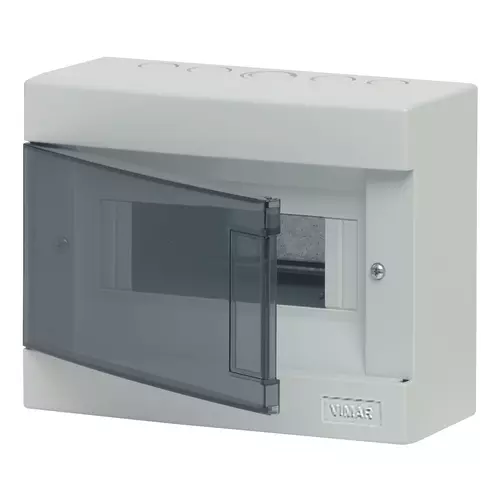

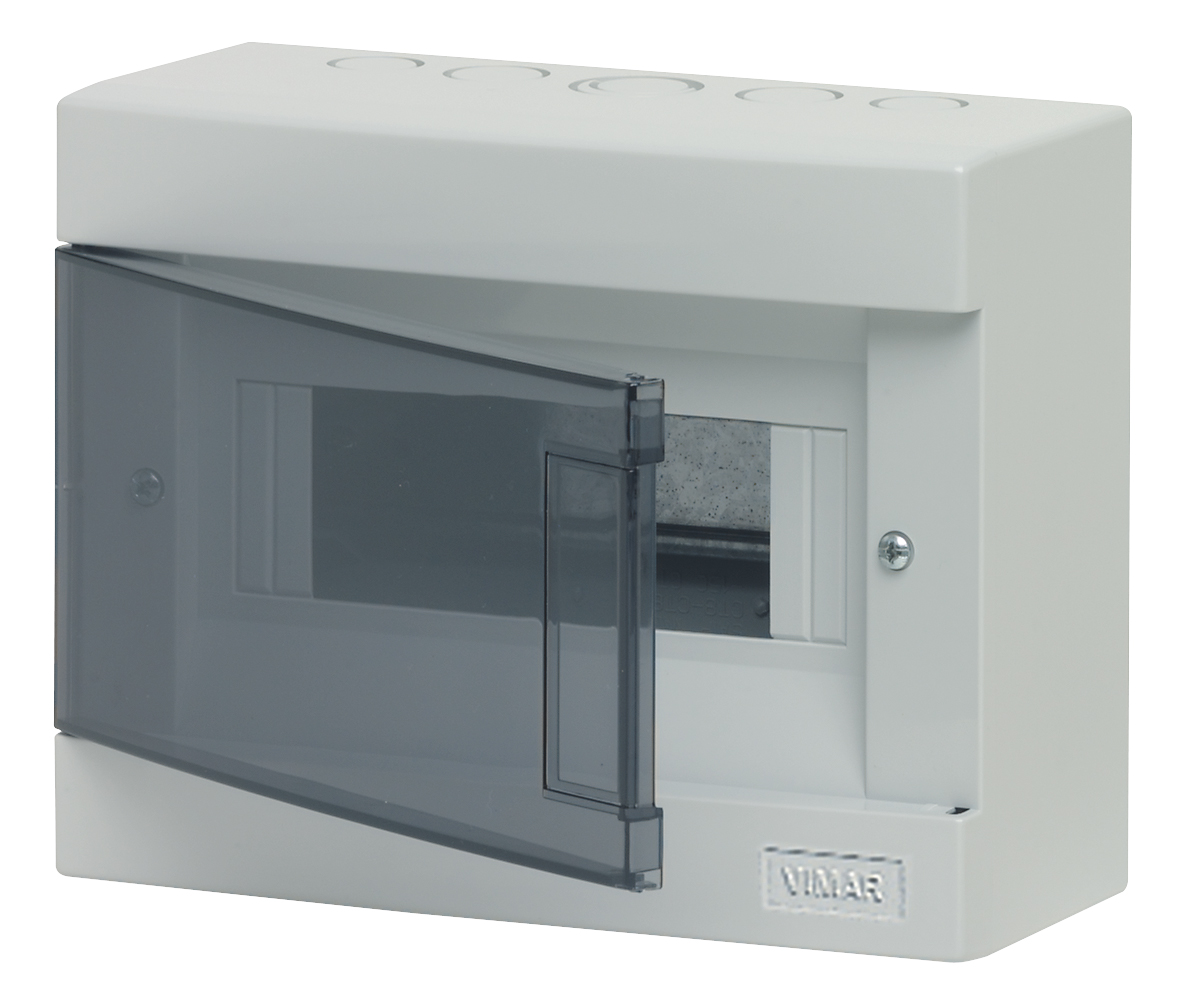

IP40 surface consumer unit 8M +door
Surface mounting consumer unit with vertically hinged transparent door, 8 modules, top and bottom knockouts, RAL 7035 grey. Pre-set for support for earth terminal block V51860

Product Status
2 - Will be discontinued

Class group
Distribution boards
Class
Small distribution board
Mounting method
Surface mounted
Number of rows
1
Width in number of modular spacings
8
Type of covering
Door
Cover model
Closed
Transparent cover/door
Yes
With lock
No
Housing material
Plastic
Built-in depth
0,00 mm
Inner depth
94,00 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
No
EMC-version
No
Colour
Grey
RAL-number
0
Degree of protection (IP)
IP40
Height
170,00 mm
Width
215,00 mm
Depth
95,00 mm

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352152595
1 NR
21.5x17x9.5 [cm]
513.8 [g]
Barcode Qty 12 NR
8007352152601
12 NR
62x42x26 [cm]
7,052 [g]
