IP40 surface cover 2M grey - V50002

Pdf
Vimar - V50002 - IP40 surface cover 2M grey
Vimar - V50002 - IP40 surface cover 2M grey

V50002
System infrastructure / Enclosures and control units / Switchboards / Surface mounting

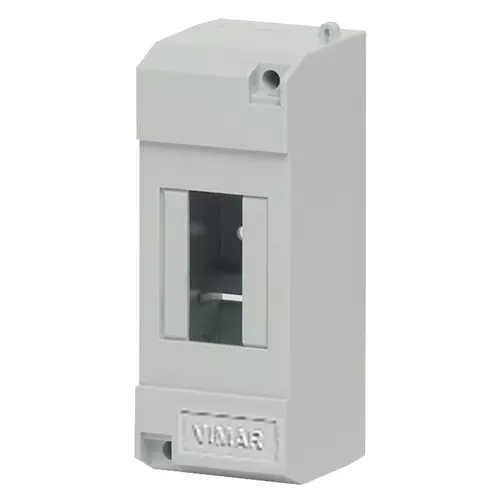

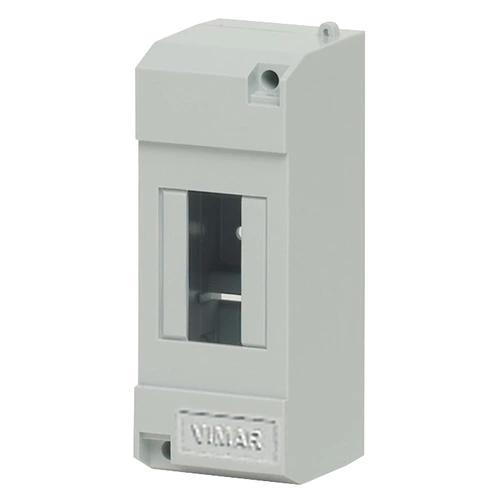

IP40 surface cover 2M grey
Surface mounting cover, without door, 2 modules (1+1), RAL 7035 grey

Product Status
3 - Active

Class group
Distribution boards
Class
Small distribution board
Mounting method
Surface mounted
Number of rows
1
Width in number of modular spacings
2
Type of covering
None
Cover model
With notch
Transparent cover/door
No
With lock
No
Housing material
Plastic
Built-in depth
0,00 mm
Inner depth
59,00 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
No
EMC-version
No
Colour
Grey
RAL-number
0
Degree of protection (IP)
IP40
Height
131,00 mm
Width
51,00 mm
Depth
60,00 mm

00. CE Marking - EU

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352078697
1 NR
3.5x13.1x4.6 [cm]
71.67 [g]
Barcode Qty 50 NR
8007352152953
50 NR
40x30x24 [cm]
3,935.33 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
