Three push buttons - R14540

Pdf
Vimar - R14540 - Three push buttons
Vimar - R14540 - Three push buttons

R14540
Smart systems&products / By-me Plus / PLANA / Devices

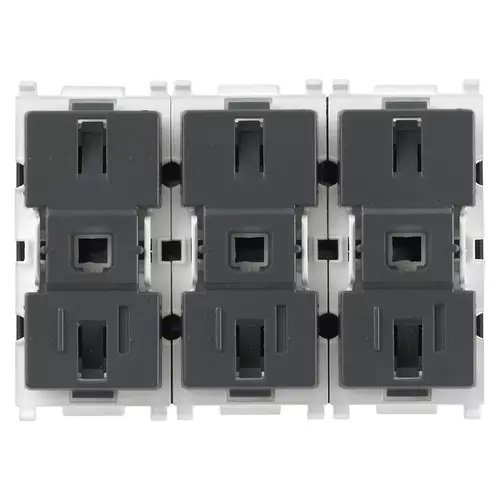

Three push buttons
Spare control device with three simple push buttons, to be completed with 1 or 2 module interchangeable buttons - 3 modules

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
3
Number of modules (module system)
300
Number of poles
0
Nominal voltage
29 V
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Label space/information surface
Yes
Imprint
None
Suitable for degree of protection (IP)
IP40
Device width
67,30 mm
Device height
49,00 mm
Device depth
46,60 mm

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352616882
1 NR
11.2x9.6x9.8 [cm]
136.4 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
