Two rocker push buttons+actuator - R14526

Pdf
Vimar - R14526 - Two rocker push buttons+actuator
Vimar - R14526 - Two rocker push buttons+actuator

R14526
Smart systems&products / By-me Plus / PLANA / Devices

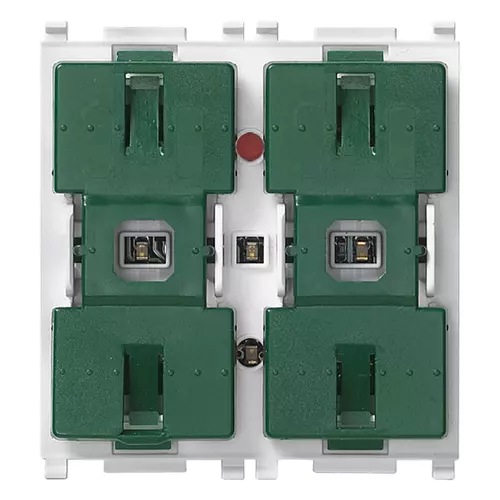

Two rocker push buttons+actuator
Spare control device with two rocker buttons and actuator with change-over relay output 8 A 120-230 V~, to be completed with 1 or 2 module interchangeable buttons - 2 modules

Product Status
3 - Active

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
2
Number of modules (module system)
200
Number of poles
1
Nominal voltage
230 V
Rated current
8,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Label space/information surface
Yes
Imprint
None
Suitable for degree of protection (IP)
IP40
Device width
44,80 mm
Device height
49,00 mm
Device depth
46,60 mm

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352616899
1 NR
11.2x9.6x9.8 [cm]
127.2 [g]
