2-family kit 7in video RFID DIN supply - K42931

Pdf
Vimar - K42931 - 2-family kit 7in video RFID DIN supply
Vimar - K42931 - 2-family kit 7in video RFID DIN supply

K42931
ELVOX Door entry system / Other video door entry systems / Video / Video kits

2-family kit 7in video RFID DIN supply

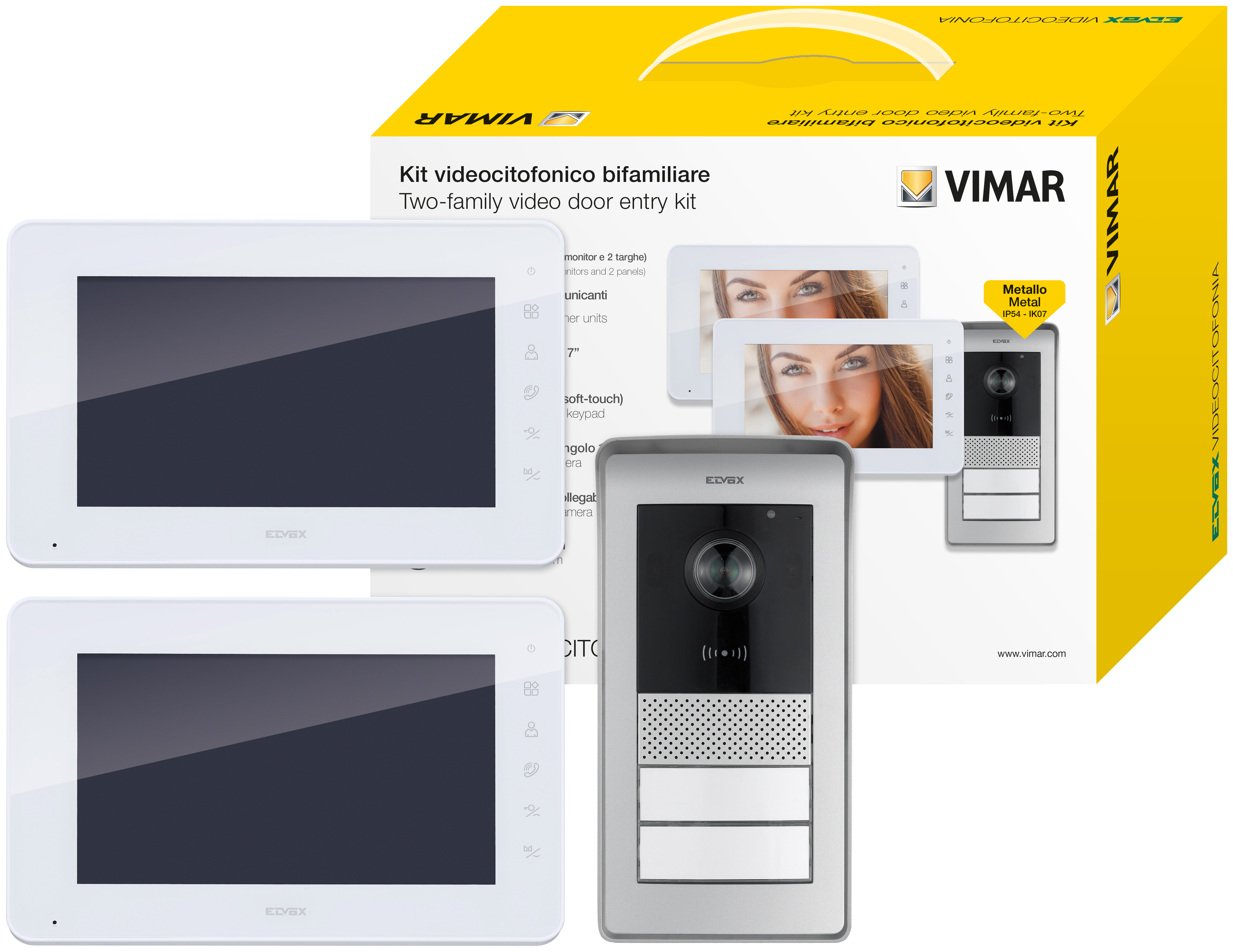

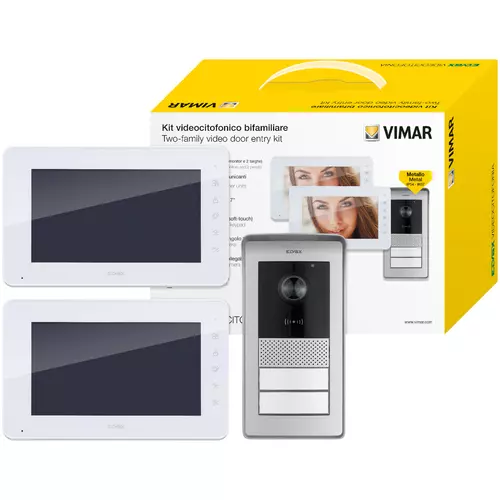

Surface mounting video door entry kit containing 2 hands-free 7in LCD colour video entryphones with capacitive keyboard, 1 RFID audio/video entrance panel with 2 push buttons (for two- or four-family configuration) with rain-proof frame, 2 power supply units 40103, 1 bus distributor with 4 outputs, complete with brackets for wall mounting

Product Status
3 - Active

Kit components

42920.P
42920.P - Plate for 7in Video kit with RFID reader
40103
40103 - DIN power supply 100-240V~ 50/60Hz 24Vdc
42920.D
42920.D - Bus distributor 4 outs Video RFID kit
K42932
K42932 - Additional 7in monitor DIN power supply

You may also be interested in

K42912
K42912 - 7in video internal unit plug-in supply
K42932
K42932 - Additional 7in monitor DIN power supply
K42917
K42917 - 7in video touch internal unit plug-in
K42937
K42937 - Additional 7inTSmonitor DIN power supply
K42947
K42947 - 7in TS Wi-Fi monitor multiplug
K42957
K42957 - 7in TS Wi-Fi monitor DIN supply un.
42920.P
42920.P - Plate for 7in Video kit with RFID reader
42920.D
42920.D - Bus distributor 4 outs Video RFID kit
42920.K
42920.K - 1-2-4 button kit for RFID Video kit plat
40169
40169 - 7 Mifare RFID keys
46CAM.136B.8
46CAM.136B.8 - Bullet IR AHD cam1080p 3,6mm lens CVBS

Sheets, Manuals, Documentation

Class group
Communication technique
Class
Door station set
With video
Yes
Number of indoor stations
2
Number of outdoor stations
1
Number of call buttons
2
Installation technique
2-wire
Mounting method indoor station
Surface mounted
Colour indoor station
White
Mounting method outdoor station
Surface mounted
Material outdoor station
Aluminium
Colour outdoor station
Grey
Expandable to max. number of indoor stations
12
Expandable to max. number of outdoor stations
2
Picture system
PAL
Property picture system
Colour
Overhear protected
Yes
Can be connected to smartphone
Yes
Internal communication
Yes
Hands free
Yes
With day/night function
No
Opening angle camera
130
Zoom, pan/tilt function
No
With memory function
No
Screen diagonal
178,00 mm
Screen diagonal (inch)
7
Manual adjustable camera
No
Label space/information surface
Yes
Hearing aid compatible
No
Suitable for disabled persons
Yes
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352742529
1 NR
26.5x13.5x20 [cm]
2,200 [g]
Barcode Qty 4 NR
8007352742536
4 NR
56.4x28.3x23 [cm]
8,800 [g]
