Video kit-7in TS Wi-Fi 2F IP/2-wire - K40981

Pdf
Vimar - K40981 - Video kit-7in TS Wi-Fi 2F IP/2-wire
Vimar - K40981 - Video kit-7in TS Wi-Fi 2F IP/2-wire

K40981
ELVOX Door entry system / Other video door entry systems / Video / Video kits

Video kit-7in TS Wi-Fi 2F IP/2-wire

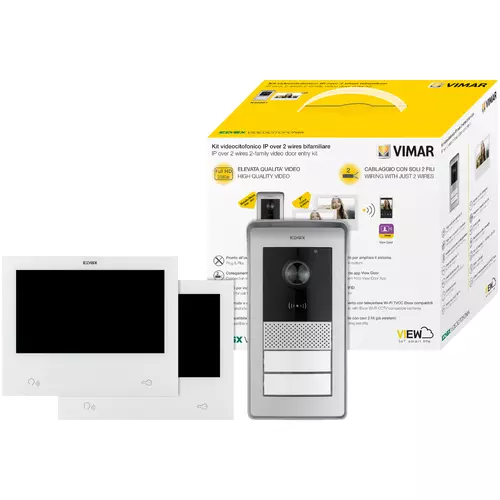

IP over 2 wires surface mounting video door entry kit containing: 1 hands-free touch screen monitor, integrated Wi-Fi for call repetition on smartphone with dedicated App, 7” LCD colour display, complete with bracket for surface mounting, 1 audio/video entrance panel with rain-proof frame configurable for 1, 2 or 4 families with RFID reader with electrical lock output, 1 NO or NC configurable relay output as voltage-free contact, 12 Mifare coloured RFID cards (2 for configuration and 10 for users), 1 power supply unit 40105

  • Compatible with Amazon Alexa voice assistants
  • No need for programming, simply connect the devices with just 2 wires
  • To receive and manage video door entry calls directly from your smartphone or tablet
  • When refurbishing existing 2-wire systems, the indoor and outdoor stations can simply be replaced, maintaining the same wiring
  • Up to 3 Wi-Fi cameras per apartment can be connected; Vimar cameras supported 46237.040A, 46239.040A and 46241.036A

Product Status
3 - Active

Kit components

40980.M
40980.M - TS monitor 7in Wi-Fi IP/2-wired
40980.P
40980.P - Entrance panel Video kit 7in IP/2-wire
40105
40105 - Power unit DIN 100-240V~ 50/60Hz 32Vdc
40169
40169 - 7 Mifare RFID keys

You may also be interested in

46237.040A
46237.040A - Bullet Wi-Fi cam - Full-HD 1080p 4mm
46239.040A
46239.040A - PT Wi-Fi Full-HD cam - 1080p 4mm
46237.028B
46237.028B - Wi-Fi 1080p cam - 2.8mm 120° view
46239.036C
46239.036C - Wi-Fi PT 3Mpx cam - 3,6mm 110° view
46241.030B
46241.030B - Outer Wi-Fi PT 1080p cam - 3mm
40168
40168 - Converter IP/2-wire for cams
42920.K
42920.K - 1-2-4 button kit for RFID Video kit plat
4621.2812BA
4621.2812BA - IP IR Bullet cam 2Mpx -2,8-12mm A.V.
4622.2812BA
4622.2812BA - Dome IR IP 2Mpx cam - 2,8-12mm Mic A.V.
Class group
Communication technique
Class
Door station set
With video
Yes
Number of indoor stations
1
Number of outdoor stations
1
Number of call buttons
2
Installation technique
2-wire
Mounting method indoor station
Surface mounted
Colour indoor station
White
Mounting method outdoor station
Surface mounted
Material outdoor station
Aluminium
Colour outdoor station
Grey
Expandable to max. number of indoor stations
1
Expandable to max. number of outdoor stations
1
Picture system
Other
Property picture system
Colour
Can be connected to smartphone
Yes
Internal communication
Yes
Hands free
Yes
With day/night function
Yes
Opening angle camera
160
Zoom, pan/tilt function
No
With memory function
Yes
Screen diagonal
178,00 mm
Screen diagonal (inch)
7
Manual adjustable camera
No
Label space/information surface
Yes
Hearing aid compatible
No
Suitable for disabled persons
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
Yes
IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352708686
1 NR
24.8x22.5x17 [cm]
2,733 [g]
