7in video touch internal unit plug-in - K40917

Pdf
Vimar - K40917 - 7in video touch internal unit plug-in
Foto gallery #1
Foto gallery #2
Foto gallery #3
Vimar - K40917 - 7in video touch internal unit plug-in

K40917
ELVOX Door entry system / Other video door entry systems / Video / Video indoor stations

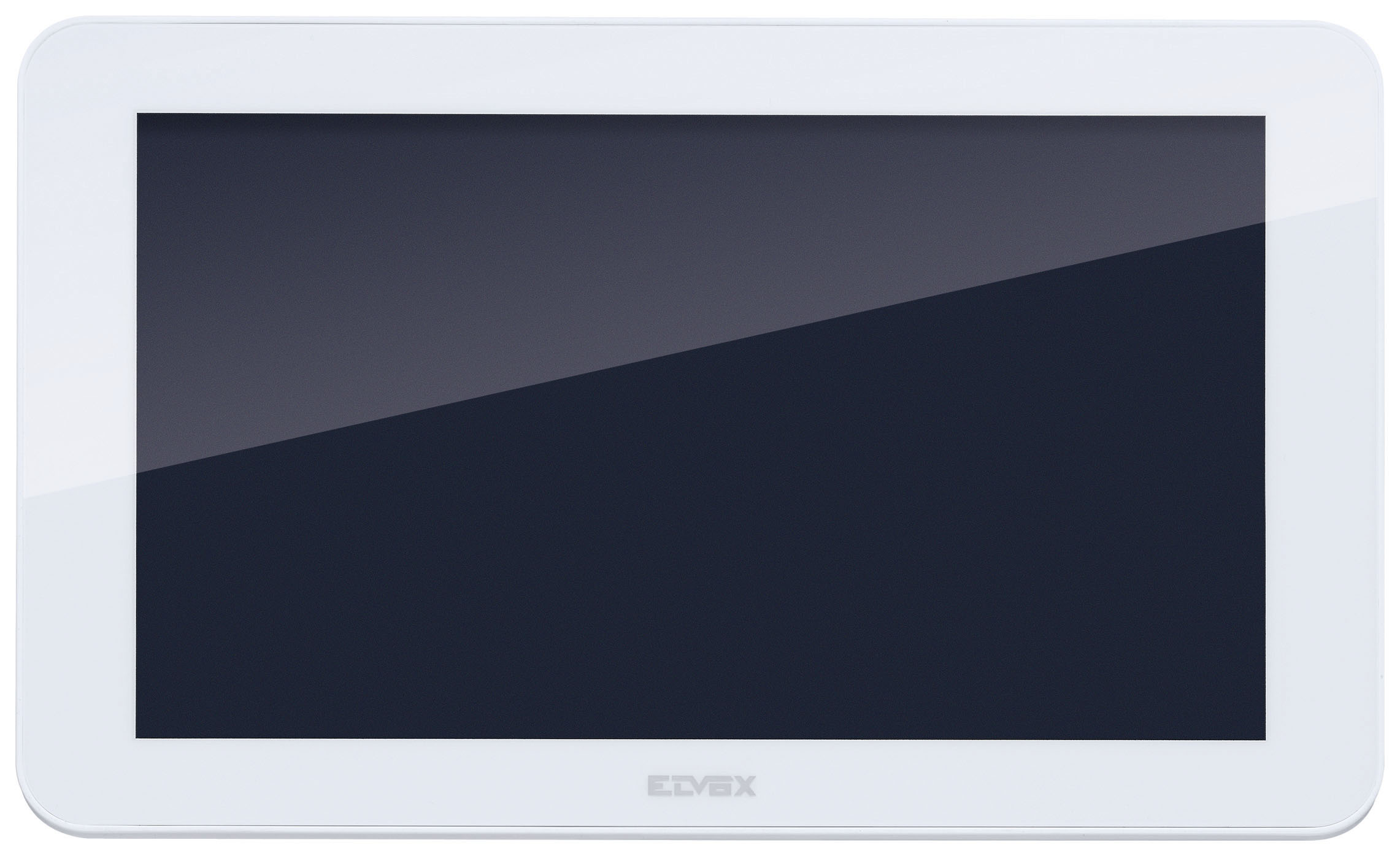

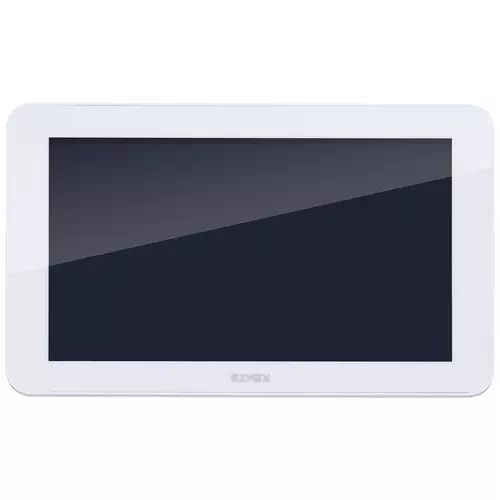

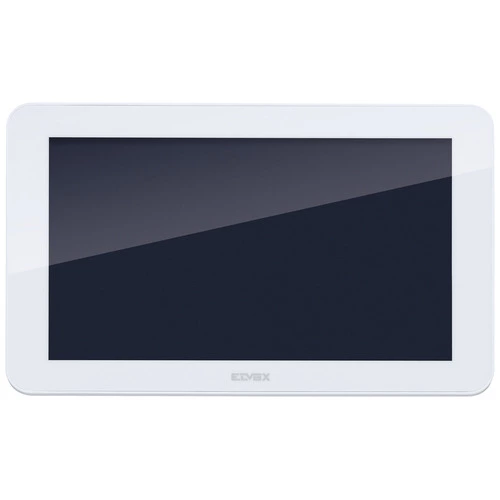

7in video touch internal unit plug-in

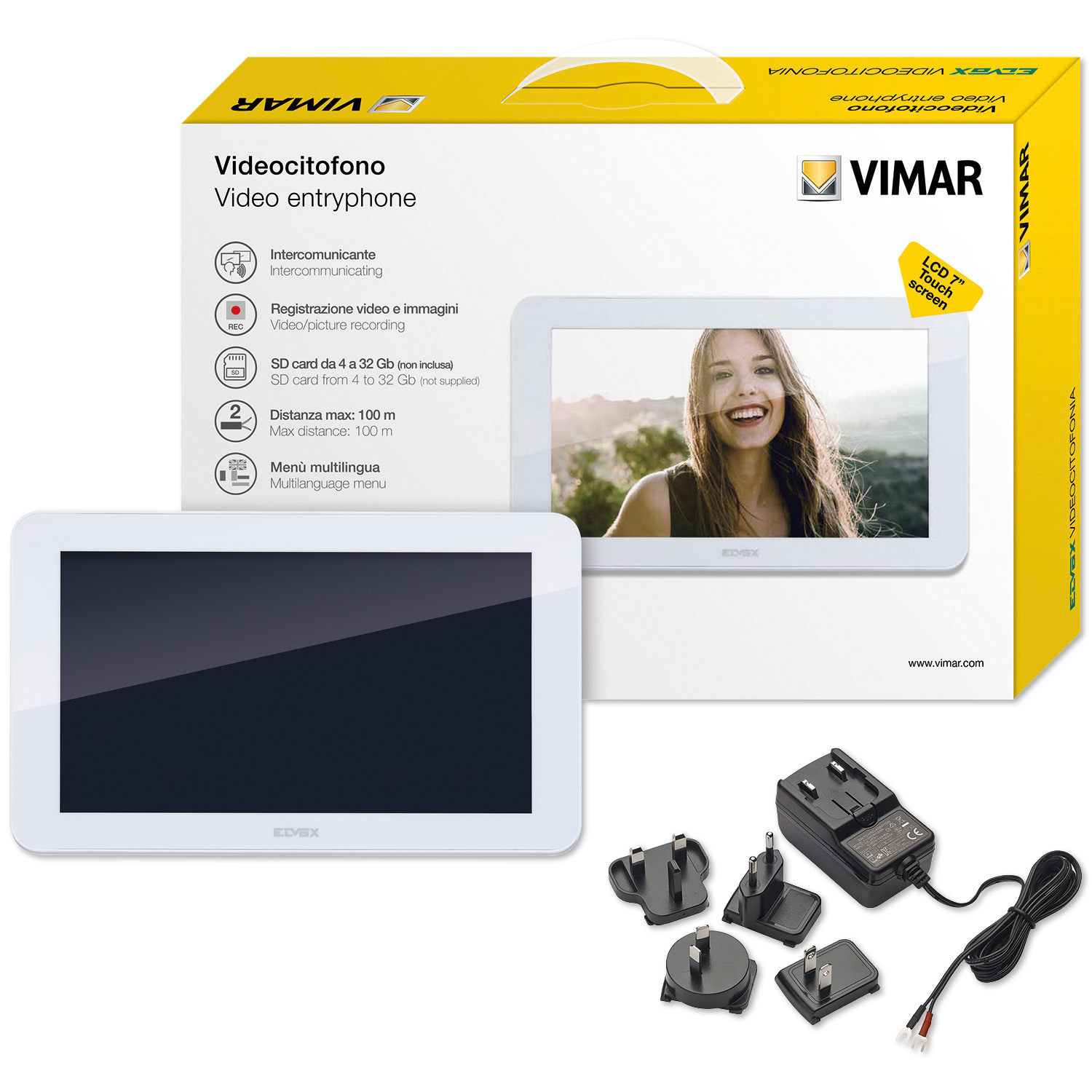

˝Additional hands-free touch screen LCD 7˝˝ monitor with for video door entry kit kit, 1 24 Vdc 1 A supply unit with interchangeable plugs (EU, BS, US, AU), complete with surface mounting fixing brackets˝

  • 7˝ monitor with power supply unit; can be teamed with video entryphone kits K40910, K40911, K40915 or K40916
  • Expandable: up to 3 monitors can be associated with each call push button
  • Multiple languages (Italian, English, French, German, Spanish, Portuguese, Greek, Dutch)
  • Intercom function between indoor stations (of the same family)
  • Ringtone volume and volume for communicating, brightness, colour and contrast are adjustable. Possibility of choosing between 6 melodies available for selection. ‘Mute’ function

Product Status
3 - Active

Class group
Communication technique
Class
Monitor door communication
Colour
Black

00. CE Marking - EU

19. NOM - Mexico

35. RCM - Australia

37. Marking - Morocco

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406306296
1 NR
27.5x6.2x19 [cm]
722 [g]
Barcode Qty 8 NR
8013406307057
8 NR
57x29x24 [cm]
6,500 [g]
Question: What are the dimensions of the monitor fixing bracket?
Answer: The dimensions of the internal monitor fixing bracket are 9.6 cm by 5.6 cm
Question: Can the kit be expanded with a traditional monitor?
Answer: Yes, the kit can be integrated with type K40912 and K40917 monitors.
