Radio tubular actuator 230Vac 20Nm - EV45ER/20

EV45ER/20
Safety / ELVOX Automations / Motors / Windows and doors

Radio tubular actuator 230Vac 20Nm

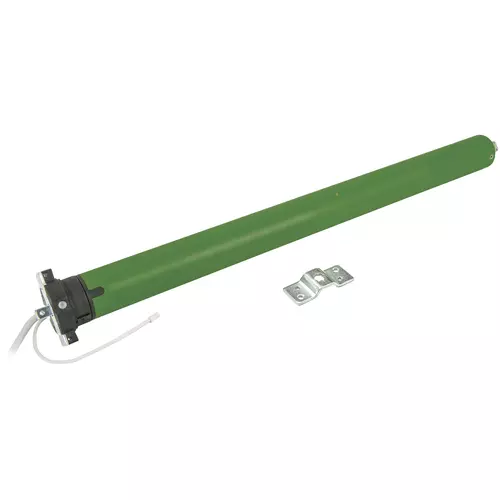

Ø45 mm tubular motor for roller shutters, 230 Vac, torque 20 Nm, rotation speed 15 rpm, absorbed power 145 W. With radio receiver and electronic limit switch incorporated in the motor. Residential, commercial and tertiary use, includes wall fixing bracket. Power cable length 2.5 m

Product Status
2 - Will be discontinued

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Installer manual (2016 kb)

Class group
Gate operators, pumps and ventilators

Class
Tube mounted motor

Outer diameter
45 mm

Moment of torque
20 N/m

For roller blinds
Yes

For awnings
No

Max. weight of roller shutter
40 kg

Type of end switch
Electronic

Back jump
No

Electronic route monitoring
No

Electronic obstacle recognition
No

With carrier
Yes

With shaft adapter
Yes

Length
625 mm

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8013406288523

1 NR

68x8.5x8.5 [cm]

2,440 [g]

8013406292858

10 NR

68x43x18.5 [cm]

25,000 [g]
