Back box for entrance panels, 1 module - 9191

Pdf

9191
ELVOX Door entry system / Video entry outdoor stations / Shared A/V components / Flush mounting boxes

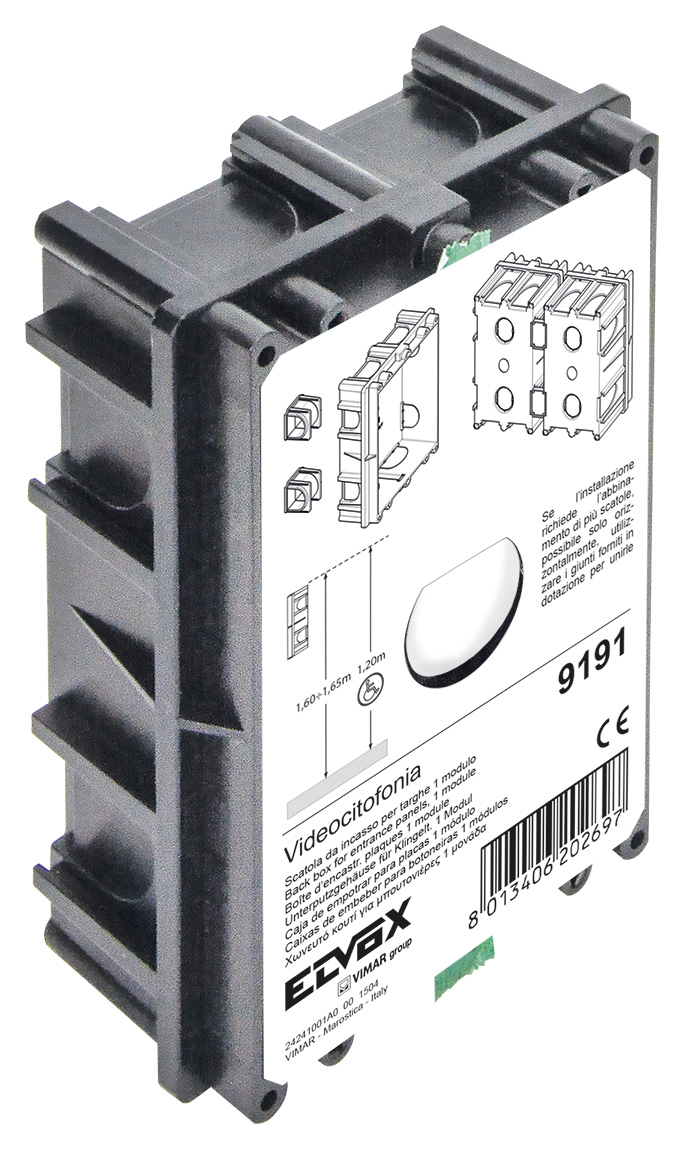

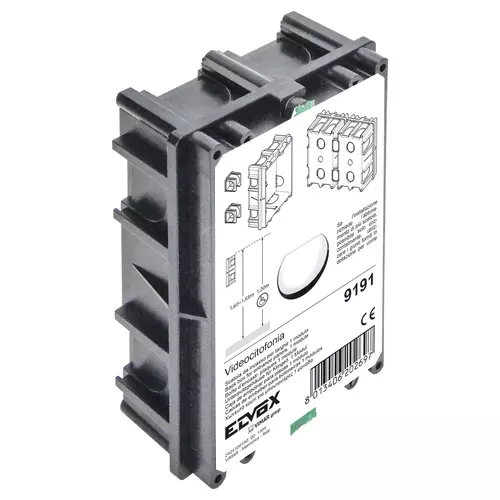

Back box for entrance panels, 1 module

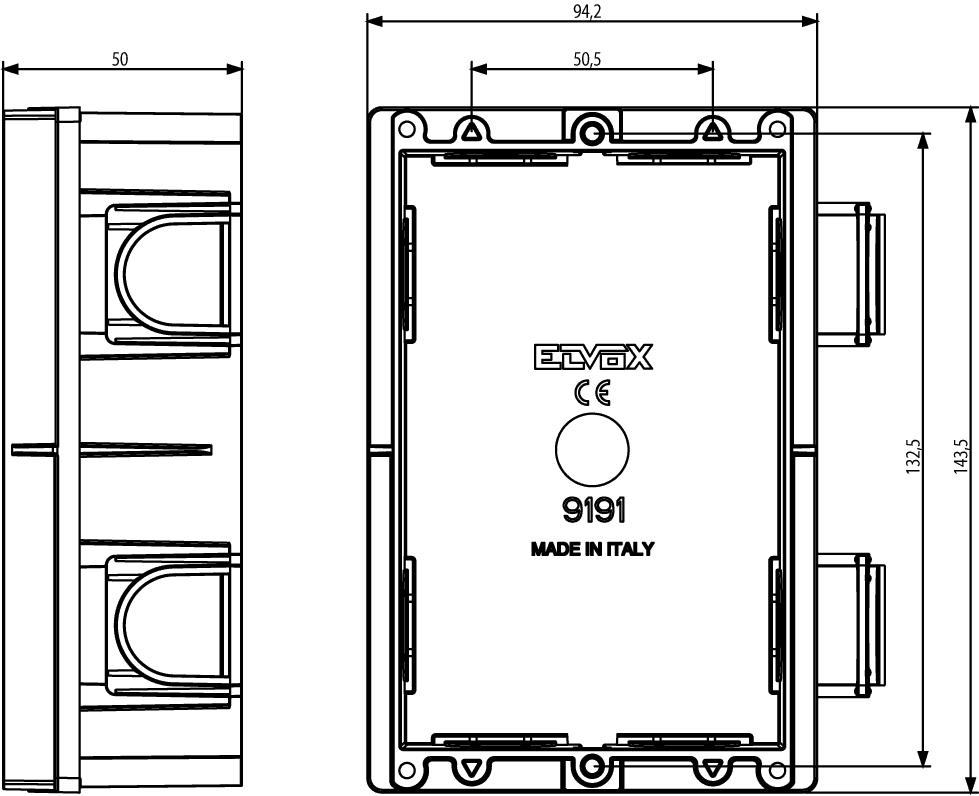

Mounting box for entrance panels for 1 module, provided with antimortar cover and spacer for installation in banks, light blue. Dimensions 94x143x50 mm

Product Status
3 - Active

You may also be interested in

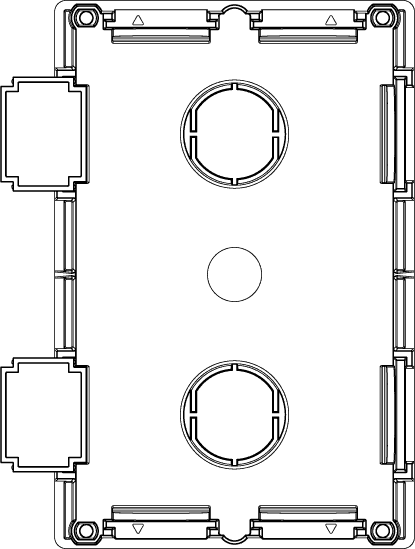

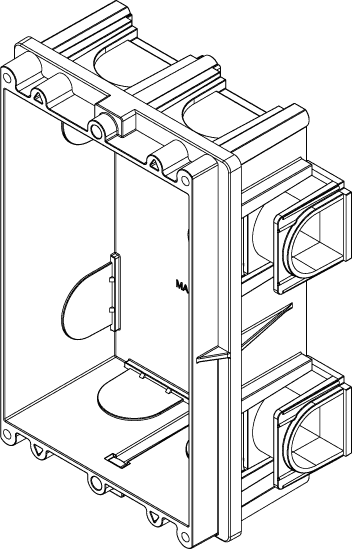

Drawings

Class group
Communication technique
Class
Mounting element for indoor station door communication
Material
Aluminium
Colour
Other
Height
413,50 mm
Depth
6,00 mm

00. CE Marking - EU

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406202697
1 NR
14x9.7x5.1 [cm]
117 [g]
Barcode Qty 10 NR
8013406226129
10 NR
27x21x17.5 [cm]
1,435 [g]
Question: Which flush mounting box must I use to install the PIXEL panel?
Answer: It is possible to use standard flush mounting boxes (art.9191,9192,9193, according to dimensions)
