Entryphone kit 1/2-Fam.2F+Tab jr+13F1 - 7509/M

Pdf
Vimar - 7509/M - Entryphone kit 1/2-Fam.2F+Tab jr+13F1
Vimar - 7509/M - Entryphone kit 1/2-Fam.2F+Tab jr+13F1

7509/M
ELVOX Door entry system / 2F/2F+ video door entry system / Audio / Audio kits

Entryphone kit 1/2-Fam.2F+Tab jr+13F1

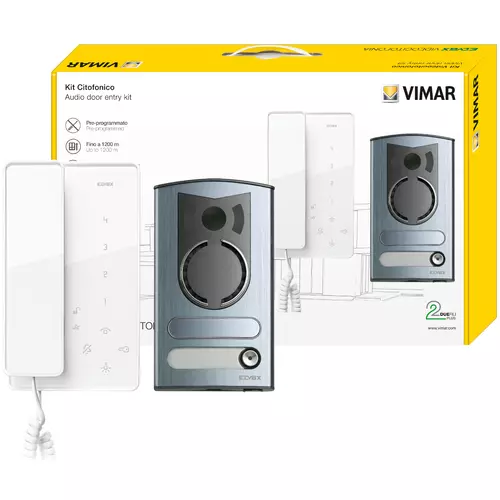

Due Fili Plus one-family entryphone kit containing 1 surface mounting Tab jr. white entryphone with handset 7509, 1 Due Fili Plus electronic unit for audio panel 13F1, 1 audio and video cover plate for surface or flush mounting 13K1, 1 additional button for cover plates 1300 R131, 1 power supply unit 40100

Product Status
3 - Active

Kit components

7509
7509 - Tab interphone with handset, white
13F1
13F1 - Audio entrance panel Due Fili unit
13K1
13K1 - 1-button a/v aluminium cover plate
R131
R131 - External button for 1300 series panel
40100
40100 - Interphone supply unit 2F+ 100-240V 0,6A
Class group
Communication technique
Class
Door station set
With video
No
Number of indoor stations
1
Number of outdoor stations
1
Installation technique
2-wire
Mounting method indoor station
Surface mounted
Colour indoor station
White
Mounting method outdoor station
Surface mounted
Material outdoor station
Aluminium
Colour outdoor station
Grey
Expandable to max. number of indoor stations
2
Expandable to max. number of outdoor stations
2
Picture system
PAL
Can be connected to smartphone
No
Internal communication
Yes
Hands free
No
With day/night function
No
Zoom, pan/tilt function
No
With memory function
No
Screen diagonal
0,00 mm
Manual adjustable camera
No
Hearing aid compatible
Yes

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406307668
1 NR
53x34x10 [cm]
1,632 [g]
