Standard Due Fili signal interface - 69MD

Pdf

69MD
ELVOX Door entry system / 2F/2F+ video door entry system / Shared A/V components / System components

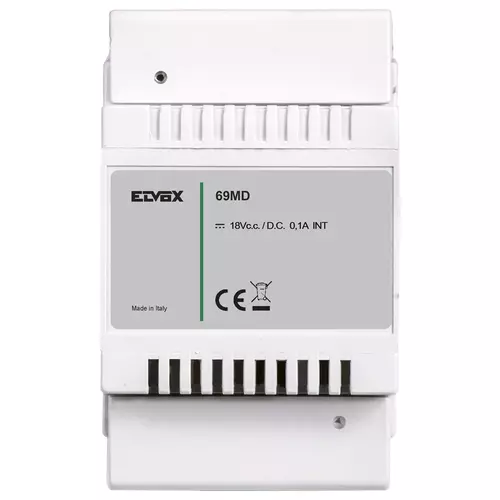

Standard Due Fili signal interface
Interface for converting a Due Fili digital signal into a standard audio/video signal for the user, extraction only takes place when the users programmed in the interface are called, programming via 950C or PC, indication by closing a N.O. contact (24 Va.c. 0.5 A), for use with dedicated power supply unit 6582, installation on DIN rail (60715 TH35), occupies 4 modules size 17.5 mm

Product Status
3 - Active

Class group
Communication technique
Class
Accessories/spare parts for door communication
Suitable for
Indoor station
Mounting method
Surface mounted
Material
Other
Colour
Grey

00. CE Marking - EU

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406205315
1 NR
11.5x10.2x8.5 [cm]
209 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
