Due Fili add. power supply unit 230V - 6923

Pdf

6923
ELVOX Door entry system / 2F/2F+ video door entry system / Shared A/V components / System components

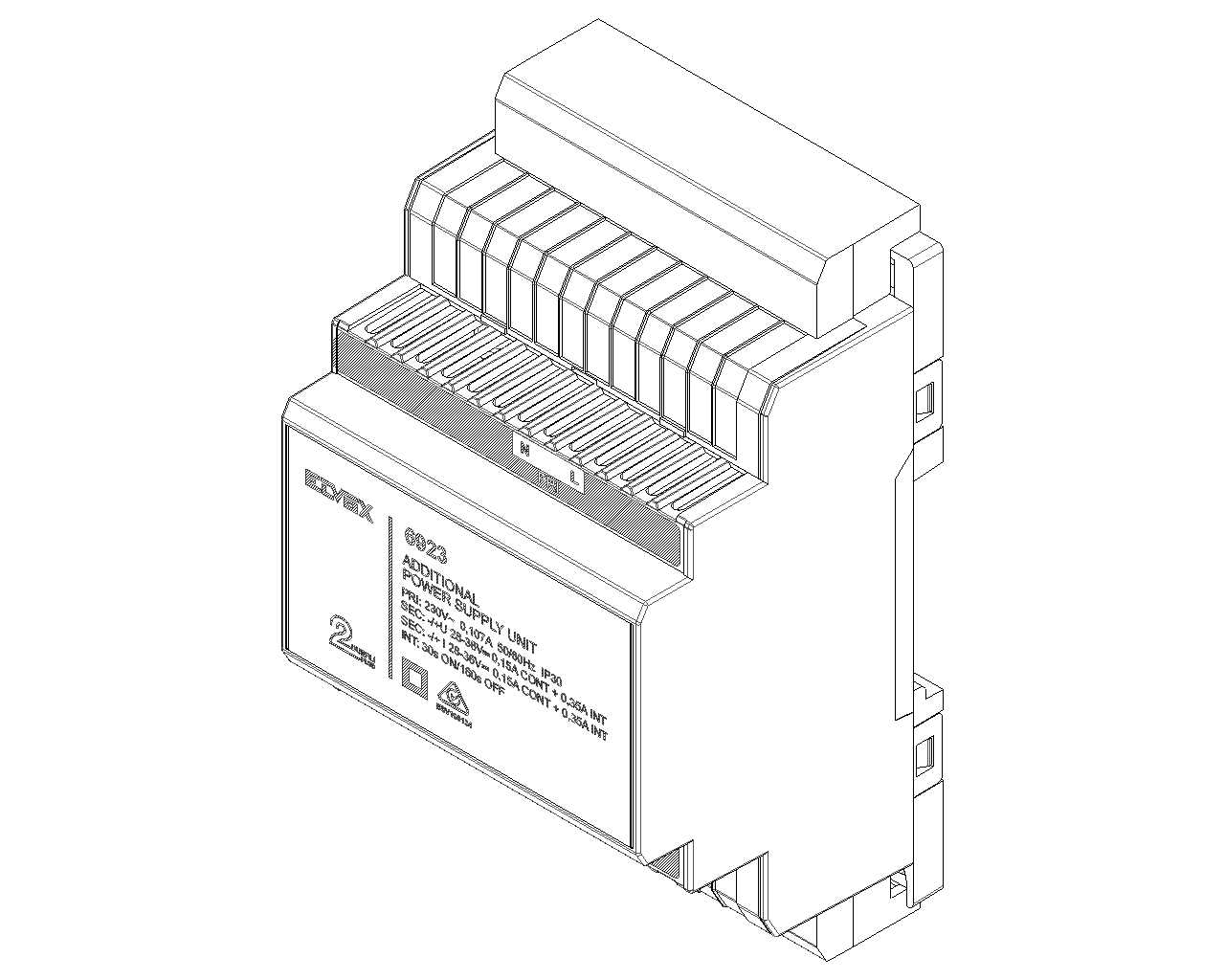

Due Fili add. power supply unit 230V
Additional power supply unit for Due Fili system video door entry system with 28 Vd.c. output, power supply 230 V~ 50 Hz 15 VA, installation on DIN rail (60715 TH35), occupies 4 modules size 17.5 mm

Product Status
3 - Active

Sheets, Manuals, Documentation

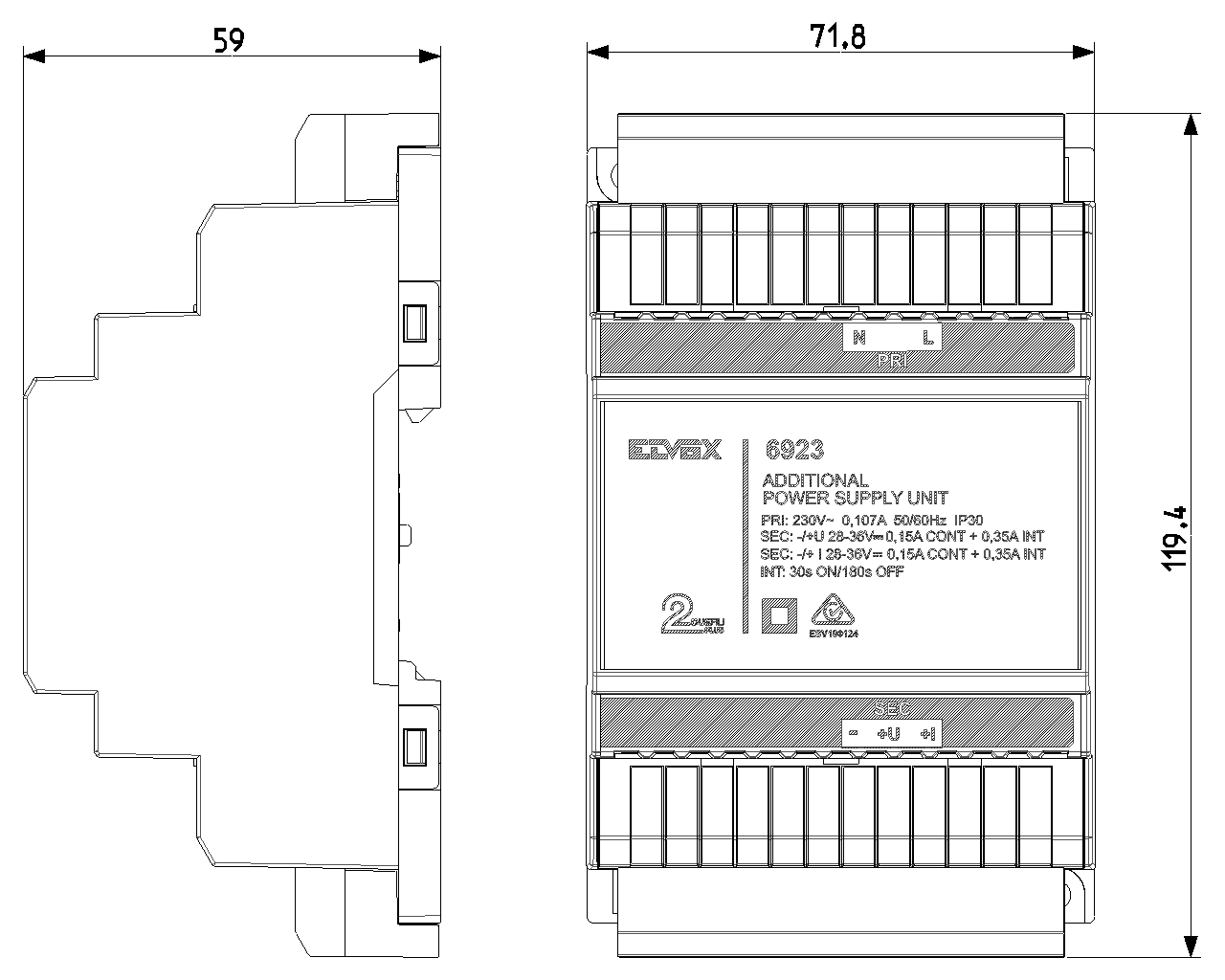

Drawings

Class group
Communication technique
Class
Power supply door communication
Application
Other
Input voltage
230 V
Type of current
DC
Output voltage
28,00 V
Degree of protection (IP)
IP20
Installation technique
Bus system
Integrated door opening circuit
No
Control function
No
Evaluation function
No
Service indication
No
Mounting method
Other
Programming lock
No

00. CE Marking - EU

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406182135
1 NR
12.5x7.5x6.5 [cm]
556 [g]
Barcode Qty 22 NR
8007352685628
22 NR
39.5x29.5x14.5 [cm]
12,592 [g]
Question: How many video door entryphones can be turned on at the same time with a power supply art. 6922.1?
Answer: At most 2 monitors should be turned on at the same time. From the third onwards, for each additional monitor you must add a type 6923. In the case of the monitor type 6329 you should add a supplementary power supply from the second monitor onwards.
