32-channel H.265 NVR - HDD 2TB - 46NVR.32

Pdf
Vimar - 46NVR.32 - 32-channel H.265 NVR - HDD 2TB
Vimar - 46NVR.32 - 32-channel H.265 NVR - HDD 2TB

46NVR.32
Safety / ELVOX CCTV / IP / NVR

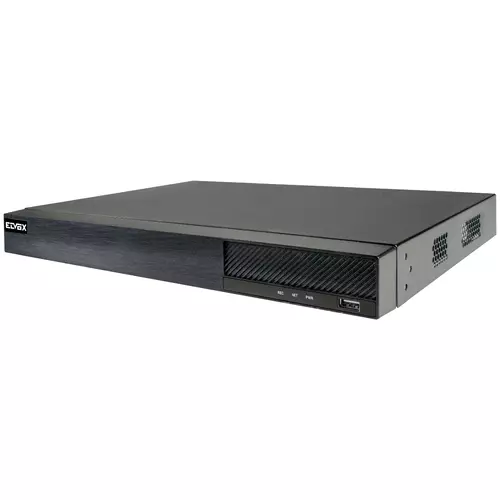

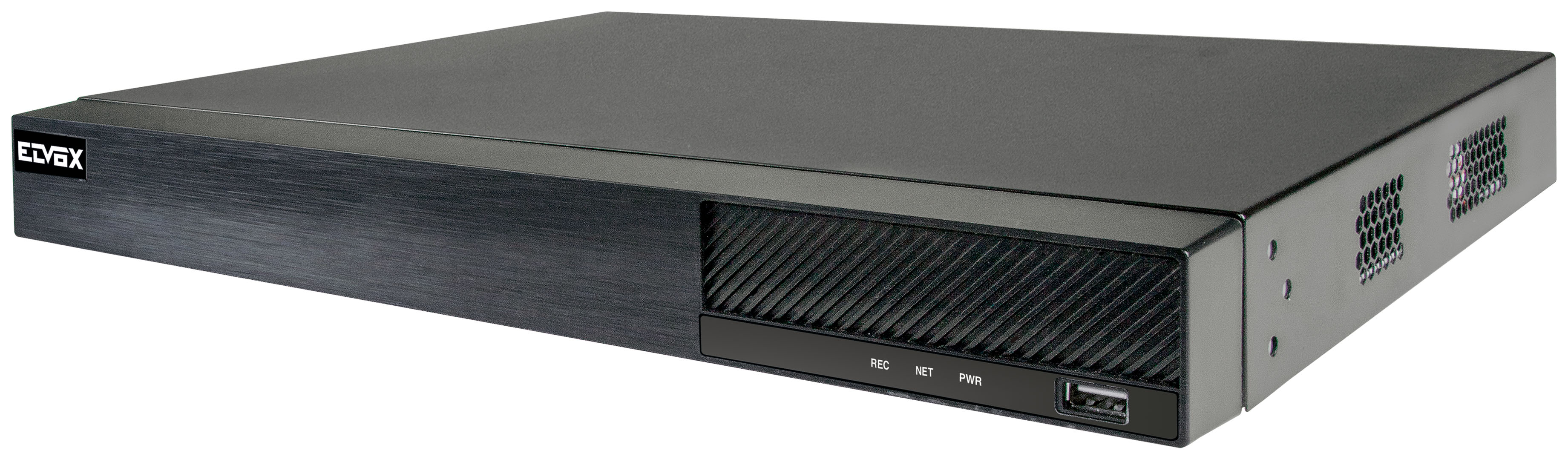

32-channel H.265 NVR - HDD 2TB
32-channel NVR, H.265 compression, Pentaplex function, 32-channel 8 Mpx Real Time recording resolution, Professional 2 TB HDD, SATA x2, max 8 TB for HDD, 1IN/1OUT audio connections, 4IN/1OUT alarms management, 2 USB, VGA, HDMI with resolution up to 4K, remote control and Viewing, QRCODE, privacy mask, motion detection, ONVIF protocol, CVM software. Dimensions: 380x269x52 mm

Product Status
3 - Active

You may also be interested in

46936.001
46936.001 - USB alarm extension
46925.030
46925.030 - Professional HDD SATA 3,5in 3TB f/DVR
Class group
Alarm installations, emergency call and signalling
Class
Matrix memory for video surveillance system
Recording type
Digital
Device construction
482.6 mm (19 inch) mounting rack
Max. number of video inputs
32
Max. number of control inputs
0
With video motion detector
Yes
With DVD
No
Redundant power supply
No
Power consumption
15 W
Max. data transmission rate
1000
Processor type
Other
Number of ports LAN
1
Number of ports 1000 Mbps Mini GBIC
0
Number of combination-ports RJ45/Mini GBIC
1
Number of ports PoE
0
Max. PoE power
0 W
Power over Ethernet (PoE)
None
Operating system
Linux
Number of pre-licensed cameras
32
Number of hard disc bays
2
Number of preinstalled hard discs
2
Memory capacity per hard disc
2
RAID 0 capable
No
RAID 1 capable
No
RAID 5 capable
No
RAID 6 capable
No
RAID 10 capable
No
Hot-swappable hard disk capability
No
Width
269 mm
Height
52 mm
Depth
380 mm

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406311382
1 NR
51.2x35x11.5 [cm]
3,160 [g]
