8-channel PoE H.265 HDD NVR - 1TB - 46NVR.08P

Pdf
Vimar - 46NVR.08P - 8-channel PoE H.265 HDD NVR - 1TB
Vimar - 46NVR.08P - 8-channel PoE H.265 HDD NVR - 1TB

46NVR.08P
Safety / ELVOX CCTV / IP / NVR

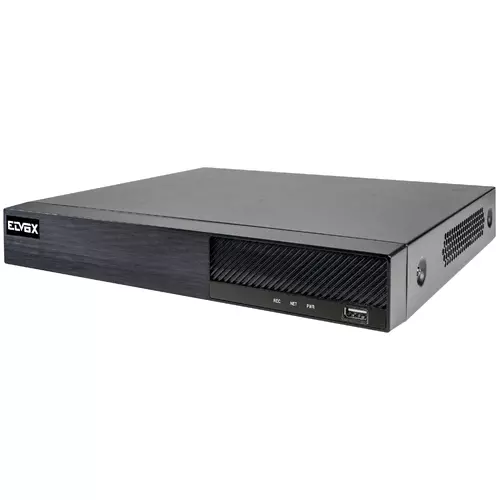

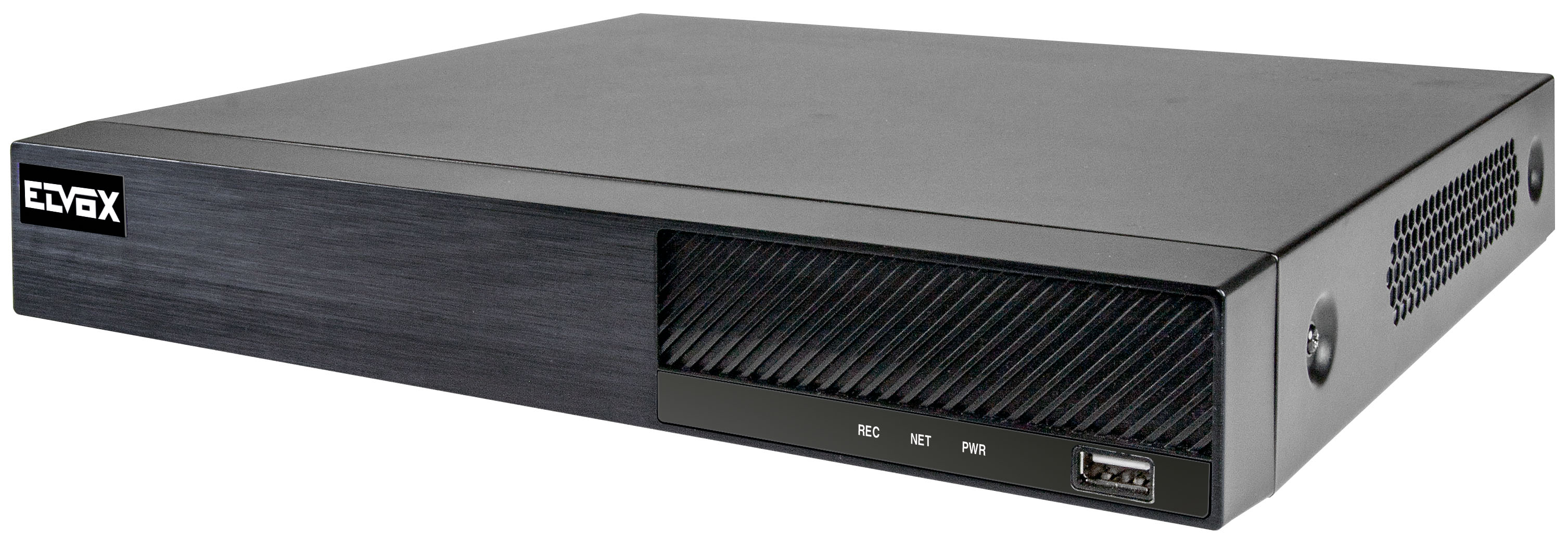

8-channel PoE H.265 HDD NVR - 1TB
8-channel NVR, H.265 compression, Pentaplex function, 8-channel 8 Mpx Real Time recording resolution, Professional 1 TB HDD, SATA x 1 max 8 TB, 1 in/1 out audio connections, 2 USB, VGA, HDMI with resolution up to 4K, integrated PoE switch with 8 ports with Plug&Play configuration, remote control and Viewing, QRCODE, privacy mask, motion detection, ONVIF protocol, CVM software. Dimensions 300x248x52 mm

Product Status
2 - Will be discontinued

Alternative products

46NVR.08PN
46NVR.08PN - 8-chan.NVR PoE 8Mpx H.265s HDD 1TB NDAA

You may also be interested in

46936.001
46936.001 - USB alarm extension
46925.030
46925.030 - Professional HDD SATA 3,5in 3TB f/DVR
Class group
Alarm installations, emergency call and signalling
Class
Matrix memory for video surveillance system
Recording type
Digital
Device construction
Other
Max. number of video inputs
8
Max. number of control inputs
0
With video motion detector
Yes
With DVD
No
Redundant power supply
No
Power consumption
10 W
Max. data transmission rate
1000
Processor type
Other
Number of ports LAN
1
Number of ports 1000 Mbps Mini GBIC
0
Number of combination-ports RJ45/Mini GBIC
1
Number of ports PoE
8
Max. PoE power
96 W
Power over Ethernet (PoE)
802.3 af (PoE)
Operating system
Linux
Number of pre-licensed cameras
8
Number of hard disc bays
1
Number of preinstalled hard discs
1
Memory capacity per hard disc
1
RAID 0 capable
No
RAID 1 capable
No
RAID 5 capable
No
RAID 6 capable
No
RAID 10 capable
No
Hot-swappable hard disk capability
No
Width
248 mm
Height
52 mm
Depth
300 mm

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406311320
1 NR
45x32.5x10.5 [cm]
2,960 [g]
