Extender Ethernet PoE - 46264.001.01

Pdf
Vimar - 46264.001.01 - Extender Ethernet PoE
Vimar - 46264.001.01 - Extender Ethernet PoE

46264.001.01
Safety / ELVOX CCTV / IP / Accessories

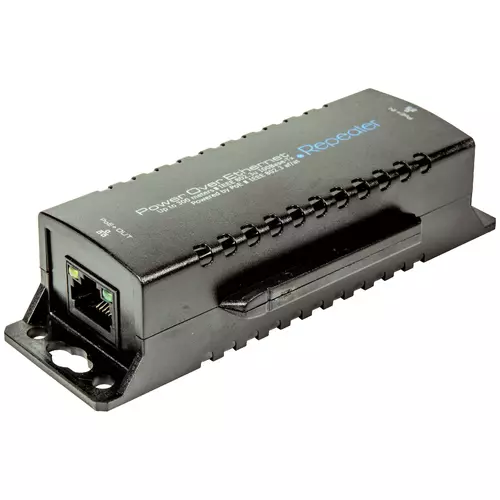

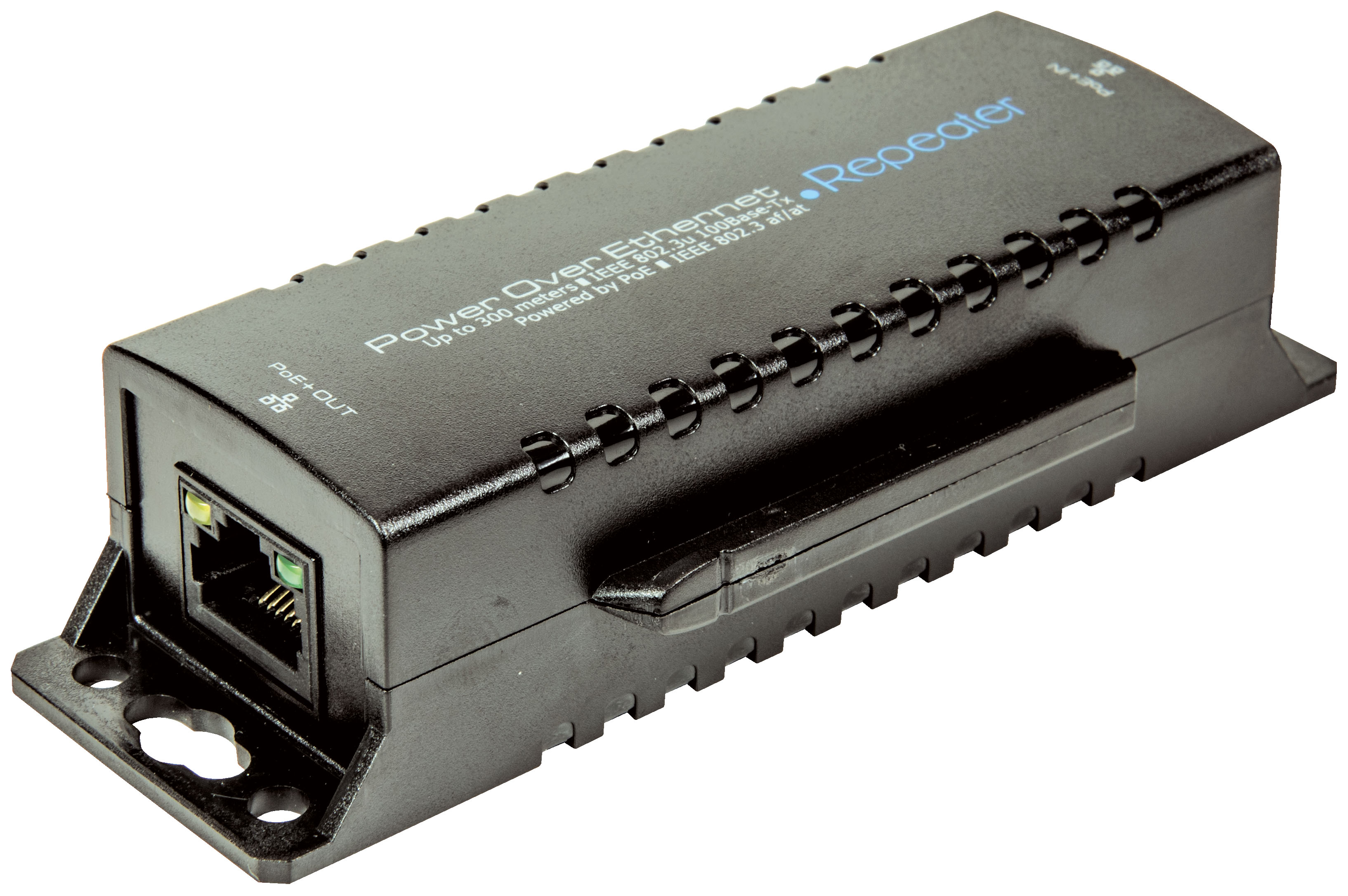

Extender Ethernet PoE
Extender for Ethernet line and PoE 10/100 standard IEEE802.3af/at power supply, a device that extends the connection up to 100m, max 3 devices per section.

Product Status
3 - Active

Sheets, Manuals, Documentation

Class group
Data and telecommunication
Class
Network switch
Ethernet
Yes
Number of ports 10/100 Mbps RJ45
1
Number of ports 10/100/1000 Mbps RJ45
0
Number of ports 1000 Mbps RJ45
0
Number of ports 10 Gbps RJ45
0
Number of ports 10 Gbps Mini GBIC
0
Number of ports 100/1000 Mbps Mini GBIC
0
Number of ports 1000 Mbps Mini GBIC
0
Number of ports 40 Gbps Mini GBIC
0
Number of ports 100 Gbps Mini GBIC
0
Number of combination-ports RJ45/Mini GBIC
0
Number of ports 1000 Mbps GBIC
0
Number of ports 10/100 Mbps M12
0
Number of ports 100 Mbps SC
0
Number of ports 1000 Mbps SC (SX)
0
Number of ports 1000 Mbps SC (LX)
0
Number of ports 100 Mbps ST
0
Number of ports 100 Mbps POF
0
Number of ports 1000 Mbps POF
0
Number of other ports
1
Power over Ethernet (PoE)
802.3 af (PoE)
Number of ports PoE
1
Max. PoE power
15 W
Max. power consumption
3 W
Redundant power supply
No
Mounting method
Other
Number of max. stackable switches
0
Number of module slots
0
Manageable
No
Degree of protection (IP)
Other
Height
113,00 mm
Width
45,5 mm
Depth
29,00 mm
Compatible with Grade2TV according to XP-C 90-483
No
Compatible with Grade3TV according to XP-C 90-483
No

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406309129
1 NR
12.8x8.5x4.5 [cm]
125.63 [g]
