Wi-Fi PT 1080p battery-cam 3mm 130° view - 46243.030B

Pdf
Vimar - 46243.030B - Wi-Fi PT 1080p battery-cam 3mm 130° view
Foto gallery #1
Foto gallery #2
Foto gallery #3
Foto gallery #4
Foto gallery #5
Foto gallery #6
Vimar - 46243.030B - Wi-Fi PT 1080p battery-cam 3mm 130° view

46243.030B
Safety / ELVOX CCTV / IP / Cameras

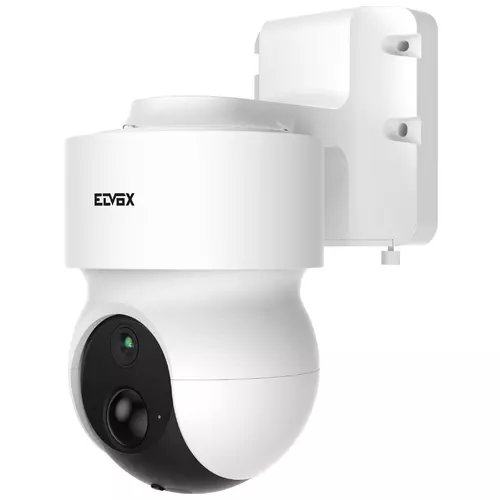

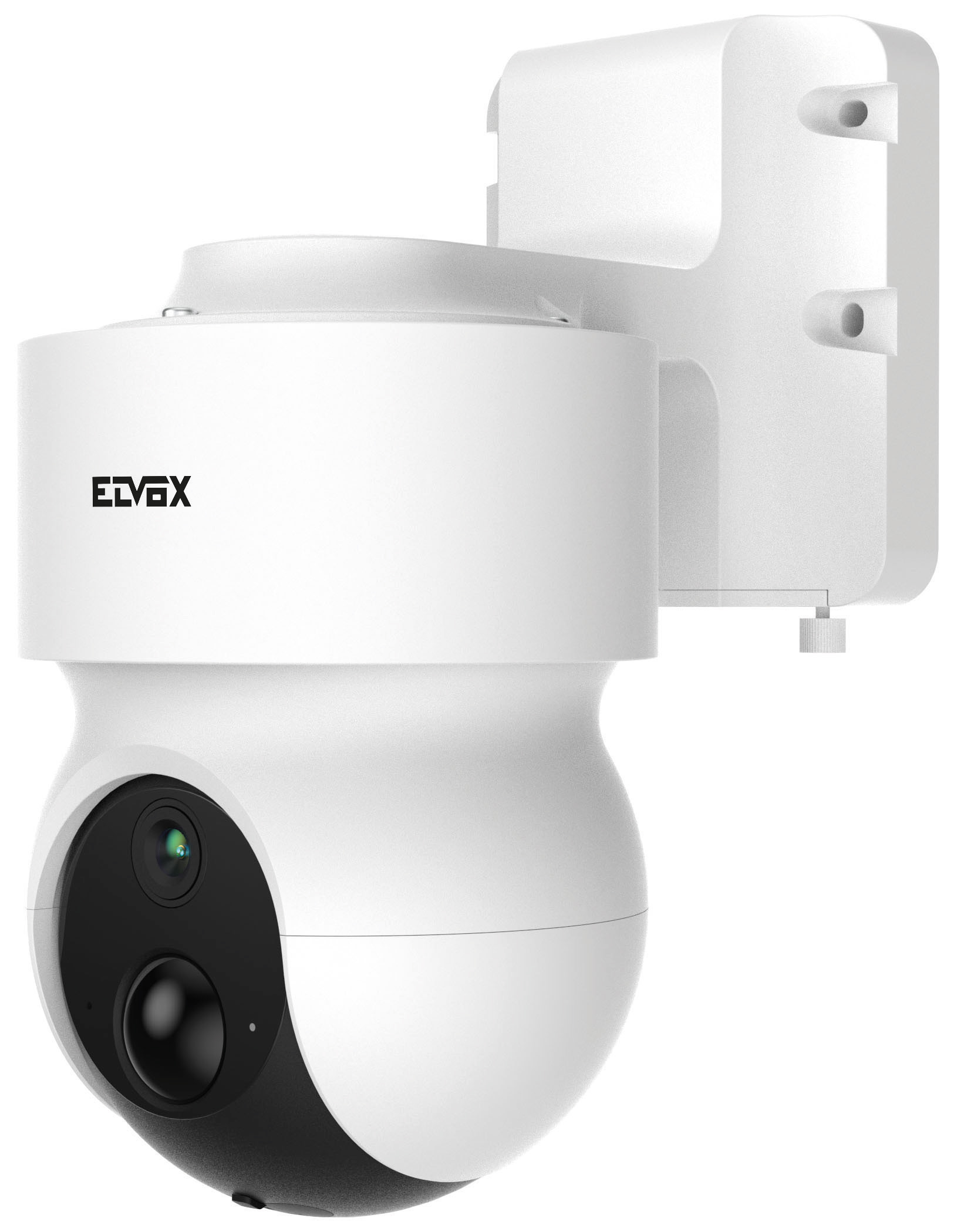

Wi-Fi PT 1080p battery-cam 3mm 130° view

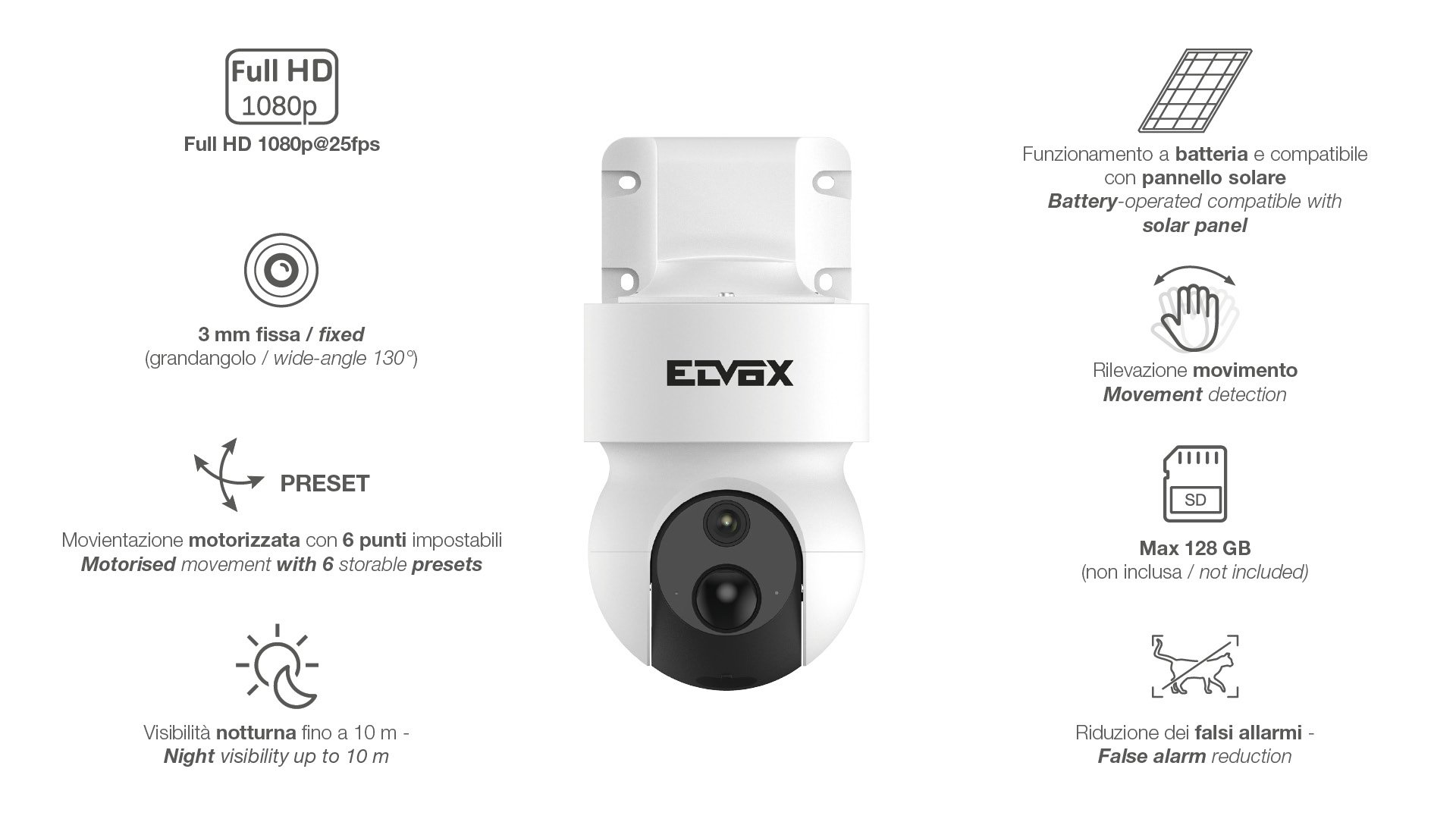

Motor-driven Wi-Fi PT IP (Pan and Tilt) Day & Night battery-operated colour camera, Full-HD resolution (2 Megapixels, 1920 x 1080), outdoor installation (IP65), 3 mm fixed focus lens with 130° vision, H.265 compression, power supply unit included, IR 10 m, motion detector and reduction of false alarms with person detection and notification sending. Free VIEW Product App available for Android and iOS. Supports SD-Cards up to 128 GB (not included), IEEE 802.11 b/g/n 2.4 Ghz Wi-Fi standard. Dimensions 148× 103× 108mm. Weight 730 g

  • Two-way audio (talk - listen) and Bilingual spoken Italian and English audio feedback
  • Full-HD 1080P resolution (2 Megapixels, 1920x1080), SD Card max. 128GB (not included)
  • Thanks to the App you can control your house from everywhere, free for Android and iOS
  • It is compatible even with the application ˝Smart Life˝
  • Installation versatility thanks to its battery operation
  • Motor-driven pan and tilt camera (Pan 0-355° and Tilt -10°-75°) with settable presets

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 46243.030B
PNG DXF
3D view art. 46243.030B
PNG DXF
Class group
Alarm installations, emergency call and signalling
Class
Camera for surveillance system
Model
Standard (Fixed)
Mounting method
Wall/ceiling
Scope of application
Universal
Transmission
Wi-Fi
Protocol
TCP/IP
Power over Ethernet (PoE)
802.3 af (PoE)
Picture system
PAL
Property picture system
Colour
Focal size
0,00 - 3,00 mm
Colour
White
Wireless
Yes
Type of interface
Wi-Fi
Number of pixels (Megapixel)
2
Memory capacity
128
With lens
Yes
With IR lamp
Yes
Max. infrared reach
10 m
Number of digital inputs
0
Number of digital outputs
0
Number of audio inputs
1
Number of audio outputs
1
Vandal proof
No
Impact strength
None
With video motion detector
Yes
Degree of protection (IP)
IP65
Horizontal field of view
0,00 - 130,00
Power consumption
5,00 W
Supply voltage
12,00 - 12,01 V
Voltage type
DC
Diameter
10.300,00 mm
Height
200,00 mm
Width
10.300,00 mm
Depth
155,00 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
ONVIF-compliant
Yes

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352722446
1 NR
22x18.5x15 [cm]
1,230.8 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
