Vimar - 46240.024B - Wi-Fi 1080p cam - 2.4mm 100° view

46240.024B
Safety / ELVOX CCTV / IP / Cameras

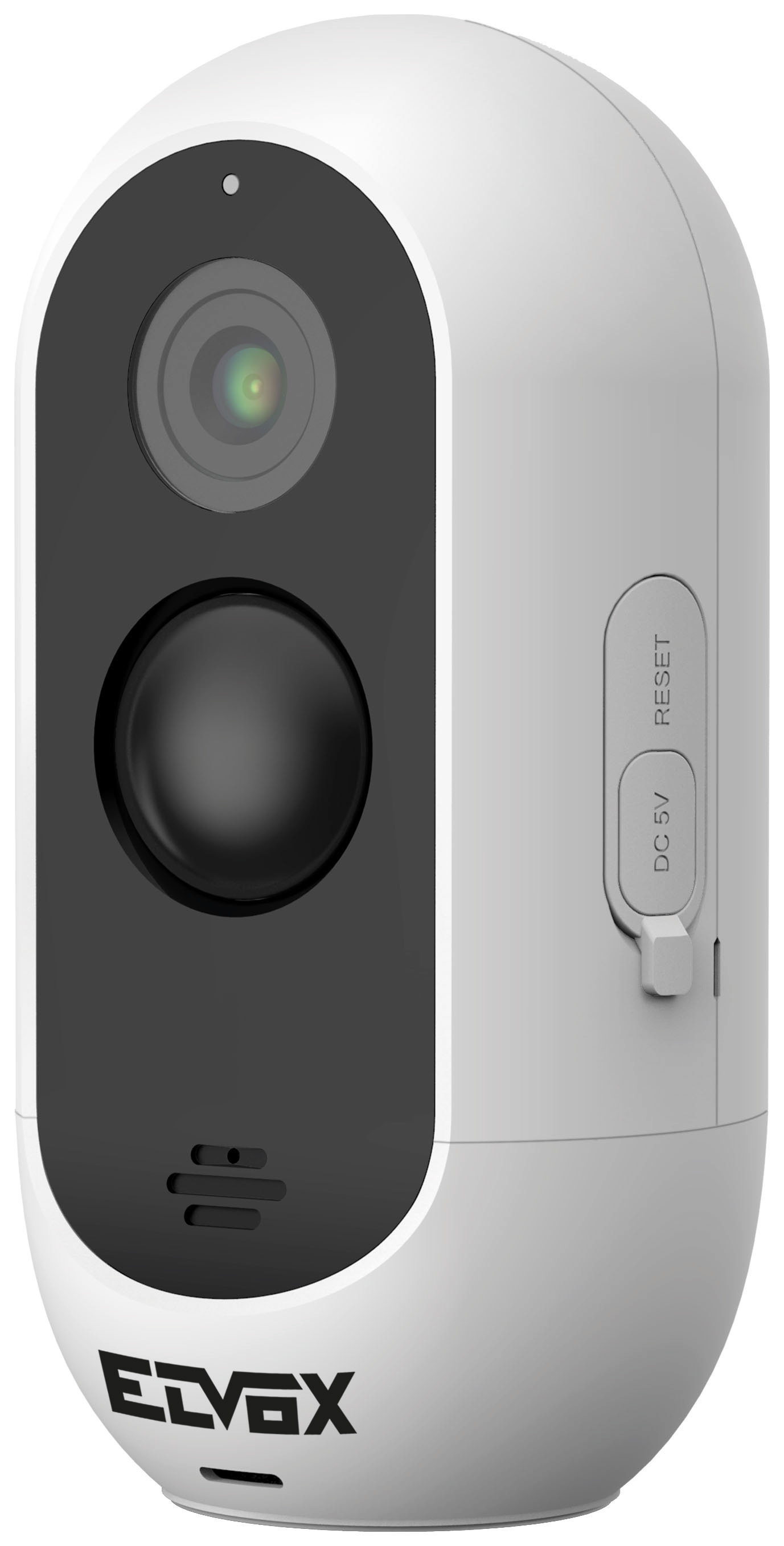

Wi-Fi 1080p cam - 2.4mm 100° view

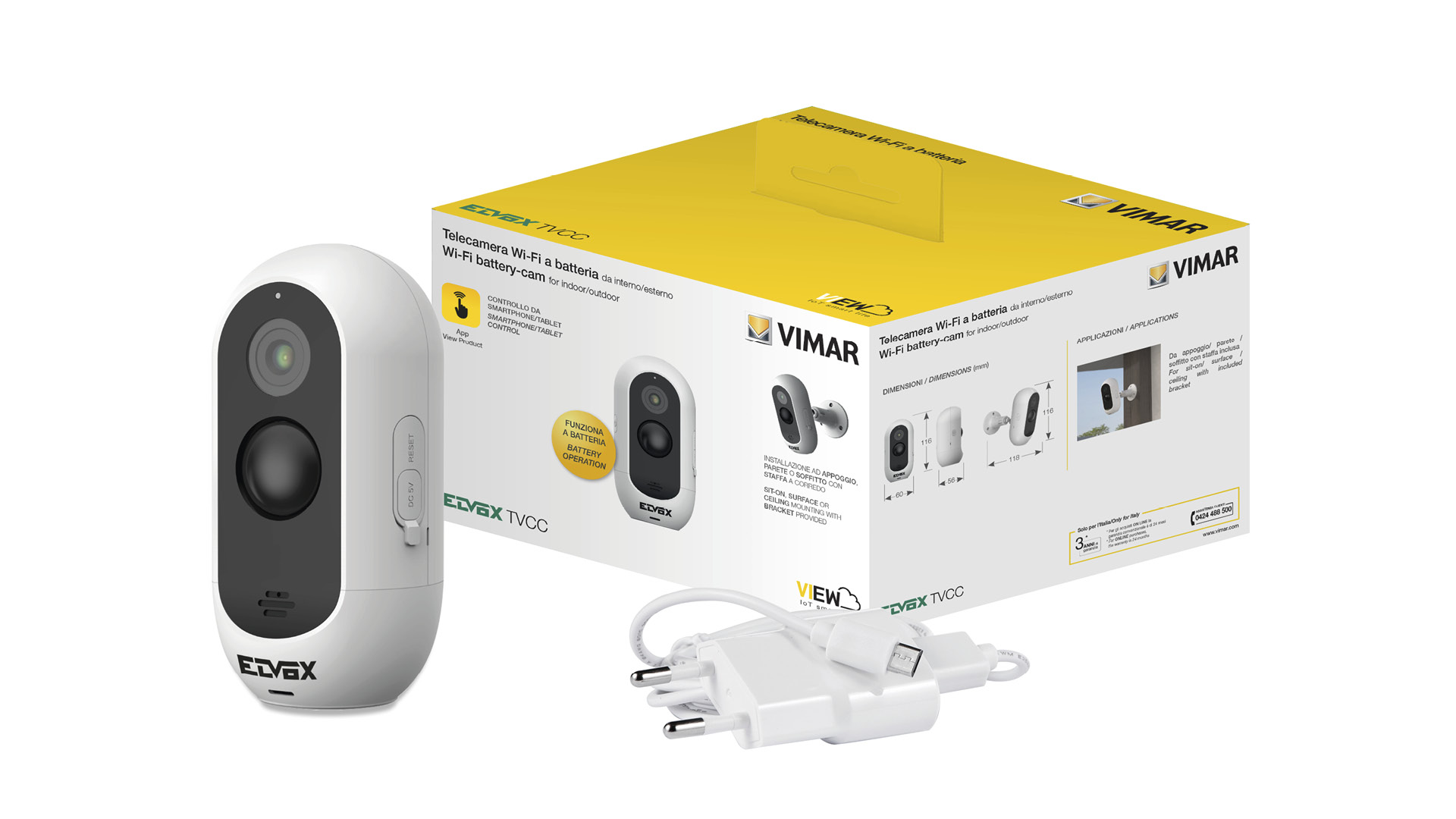

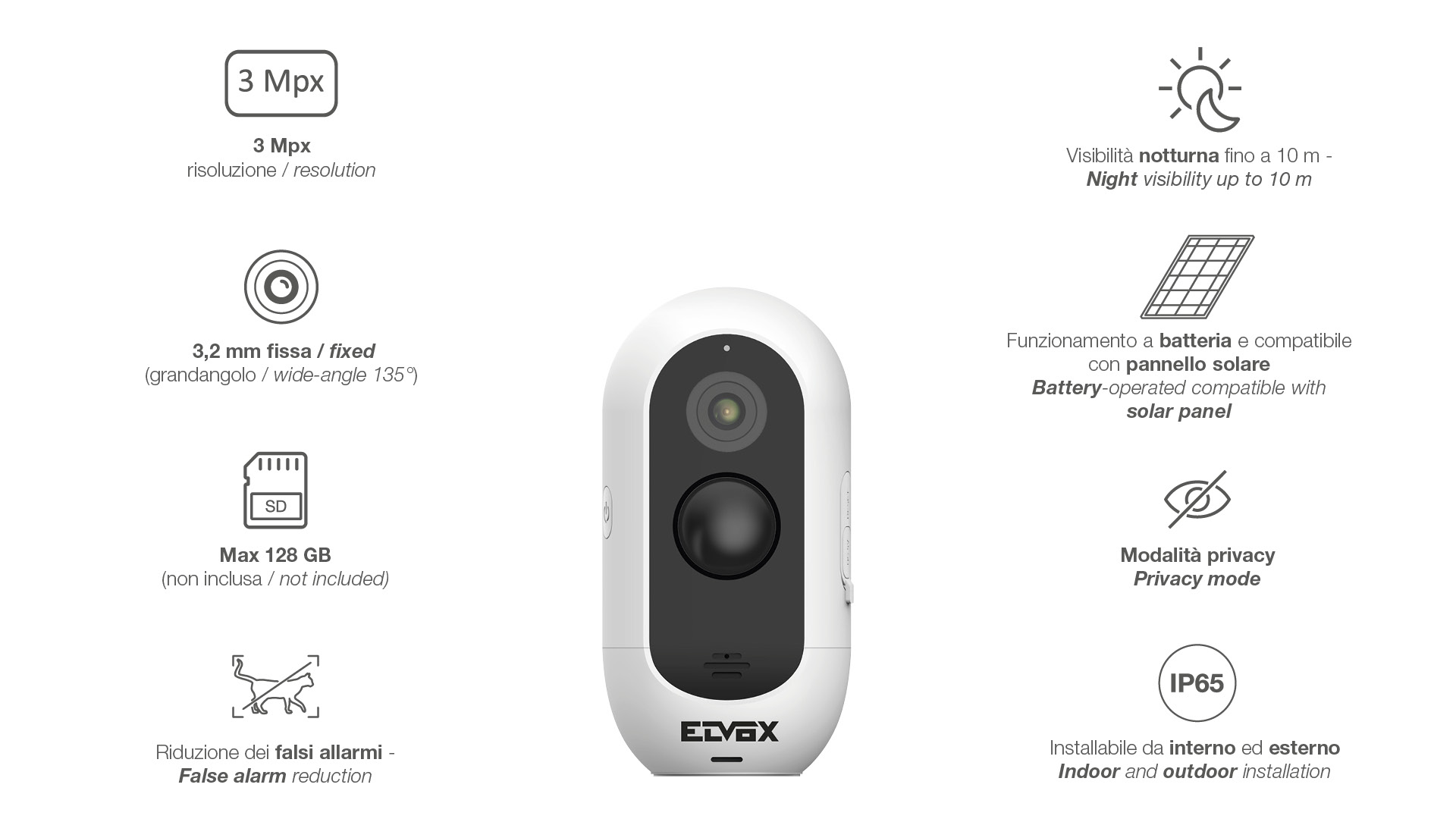

Wi-Fi IP Day & Night battery-operated colour camera, Full-HD resolution (2 Megapixels, 1920x1080), indoor/outdoor installation (IP65), 2.4 mm fixed focus lens with 100° vision, H.265 compression, power supply unit included, IR 10 m, motion detector and reduction of false alarms with person detection and notification sending. Free VIEW Product App available for Android and iOS. Supports SD-Cards up to 128 GB (not included), IEEE 802.11 b/g/n 2.4 Ghz Wi-Fi standard. Dimensions Ø 59 x 116 mm. Weight 225 g

  • Two-way audio (talk - listen) and Bilingual spoken Italian and English audio feedback
  • Supervise your home wherever you may be with the VIEW Product App and receive notifications about what’s going on there. Create scenarios and automations and call them up using the VIEW Product App, routines via Amazon Alexa smart speakers and Vimar’s new flush mounting vocal control using the VIEW Product skill
  • Full-HD 1080P resolution (2 Megapixels, 1920x1080), SD Card max. 128GB (not included)
  • It is compatible even with the application ˝Smart Life˝

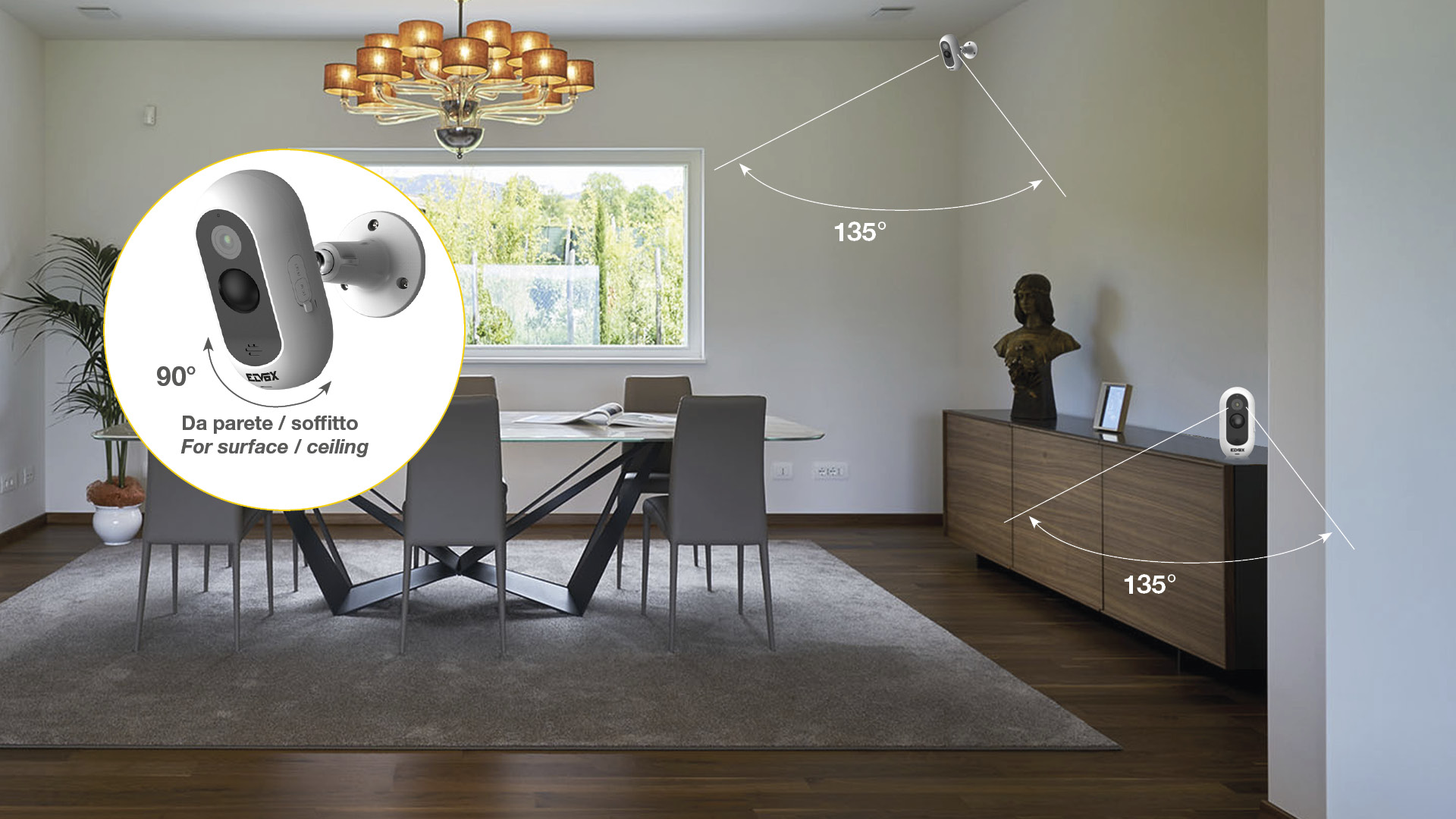

  • Installation versatility thanks to its battery operation

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

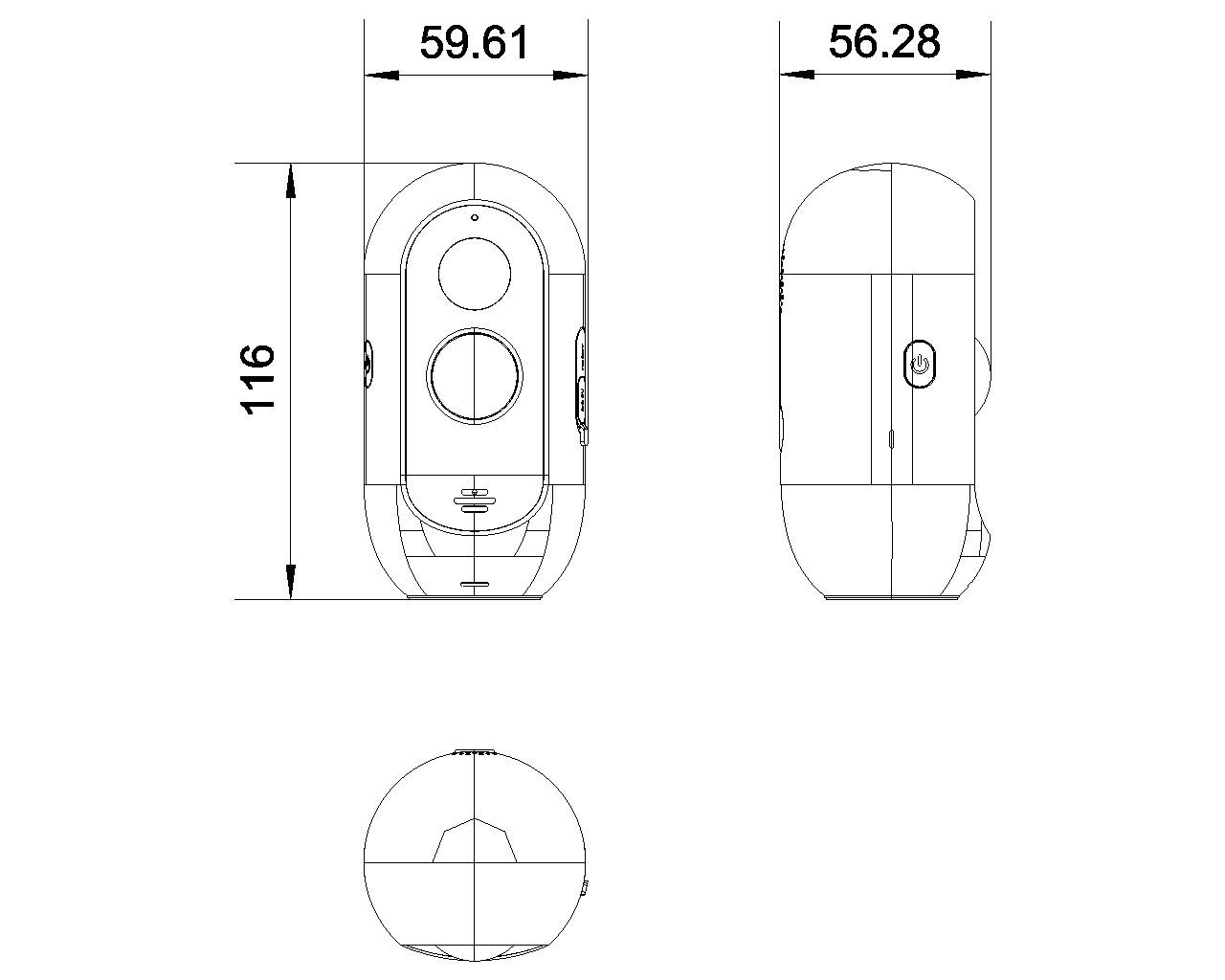

view encumbered art. 46240.024B
PNG DXF

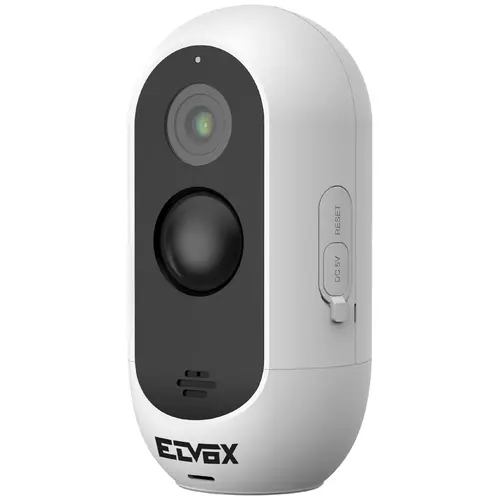

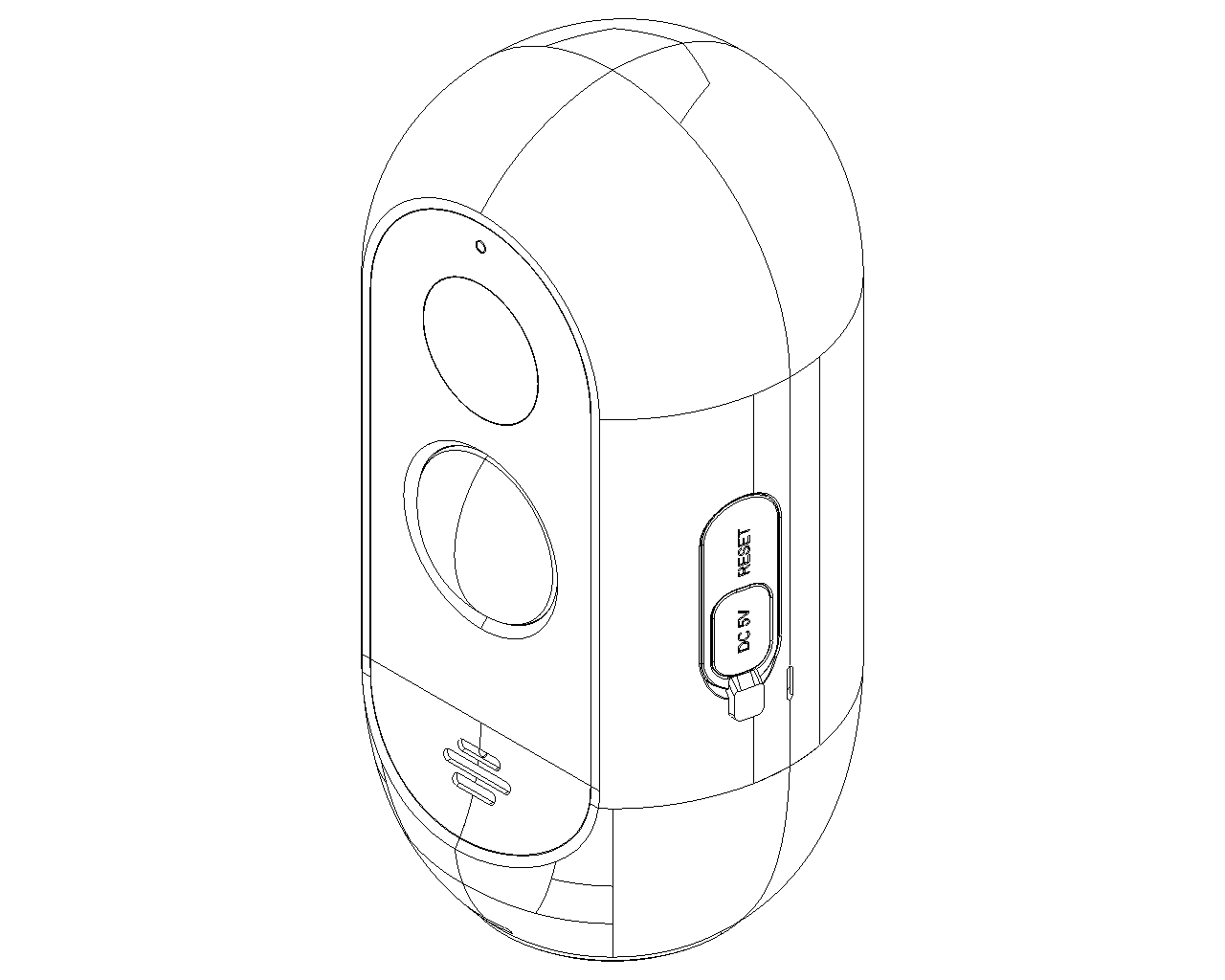

3D view art. 46240.024B
PNG DXF
Class group
Alarm installations, emergency call and signalling
Class
Camera for surveillance system
Model
Standard (Fixed)
Mounting method
Other
Scope of application
Universal
Transmission
Wi-Fi
Protocol
TCP/IP
Power over Ethernet (PoE)
802.3 af (PoE)
Picture system
PAL
Property picture system
Colour
Focal size
0,00 - 2,40 mm
Colour
White
Wireless
Yes
Type of interface
Wi-Fi
Number of pixels (Megapixel)
2
Memory capacity
128
With lens
Yes
With IR lamp
Yes
Max. infrared reach
10 m
Number of digital inputs
0
Number of digital outputs
0
Number of audio inputs
1
Number of audio outputs
1
Vandal proof
No
Impact strength
None
With video motion detector
Yes
Degree of protection (IP)
IP65
Horizontal field of view
0,00 - 100,00
Power consumption
5,00 W
Supply voltage
12,00 - 12,01 V
Voltage type
DC
Diameter
5.900,00 mm
Height
116,00 mm
Width
5.900,00 mm
Depth
59,00 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
ONVIF-compliant
Yes

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352722439
1 NR
14.8x12x7.3 [cm]
490 [g]
