4622.2812EDT
Safety / ELVOX CCTV / IP / Cameras

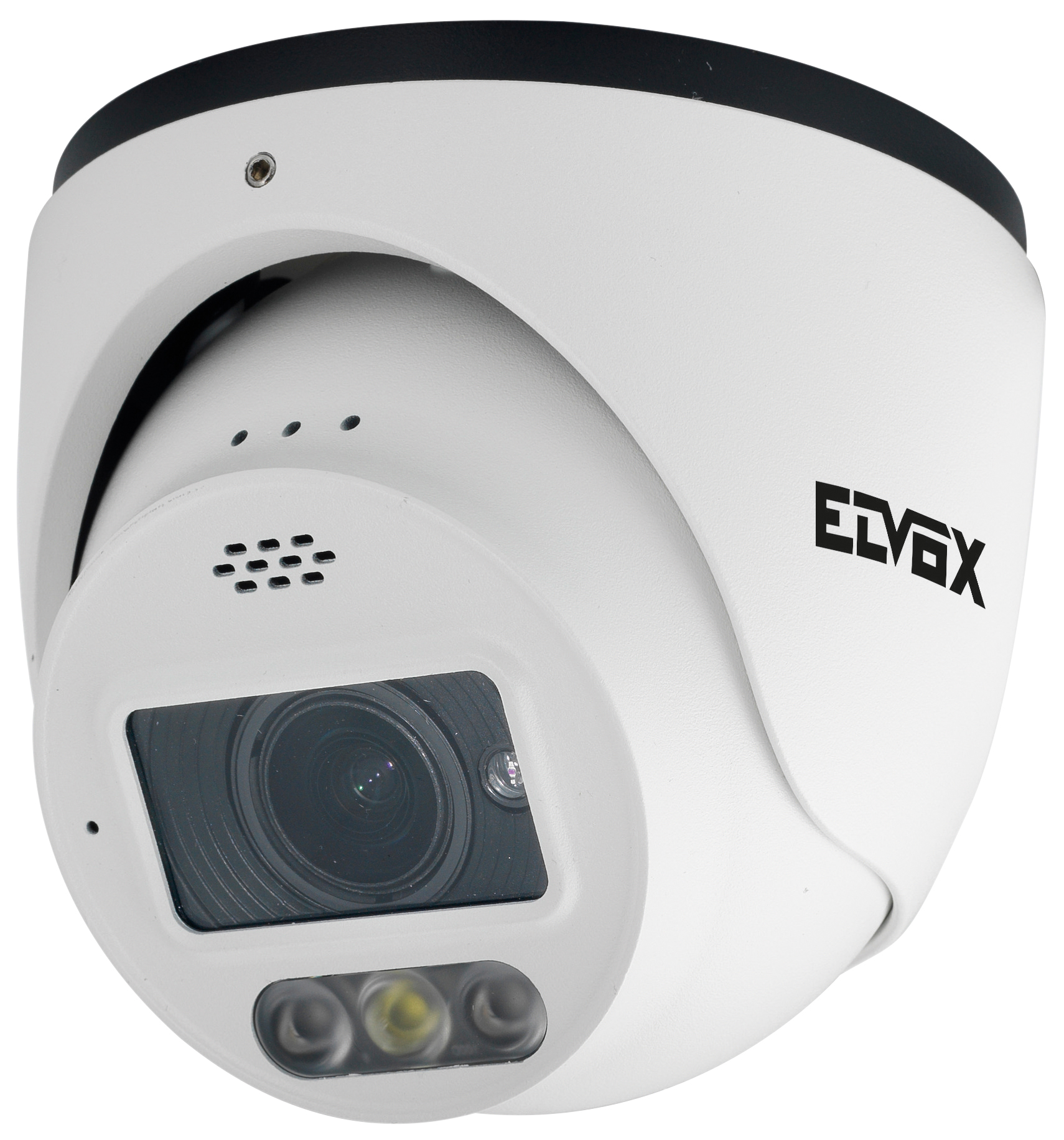

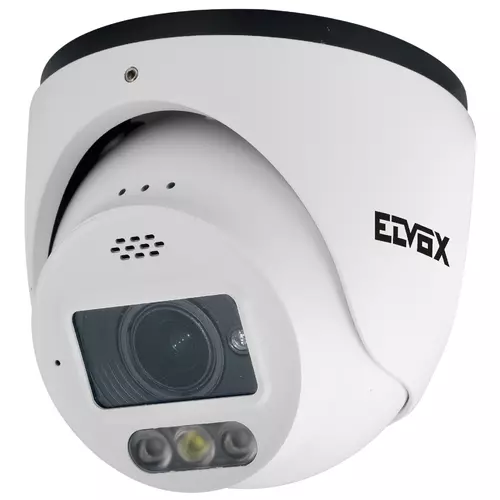

IP Dome cam 5Mpx -2,8-12mm Det. Plus
Product Status
2 - Will be discontinued

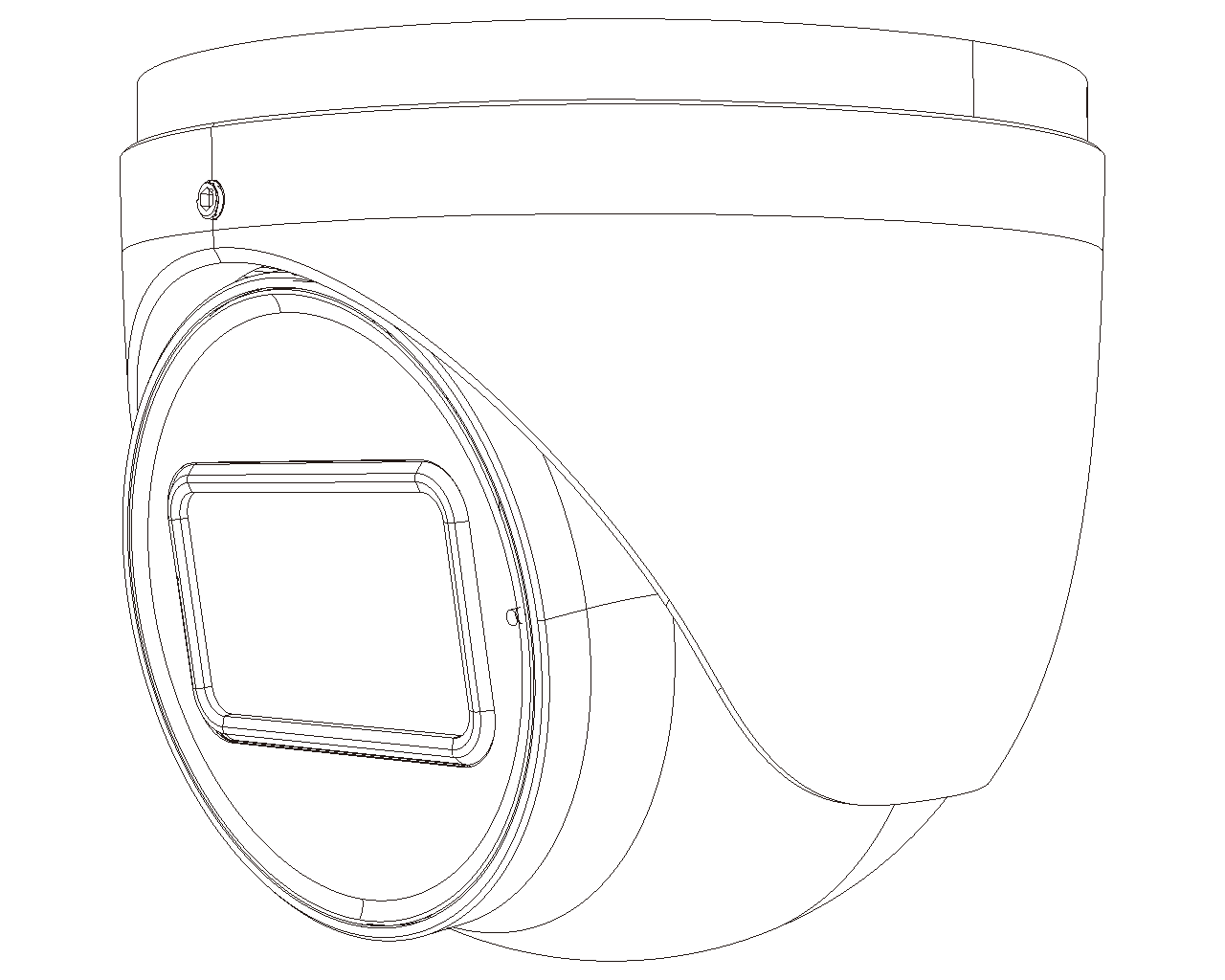

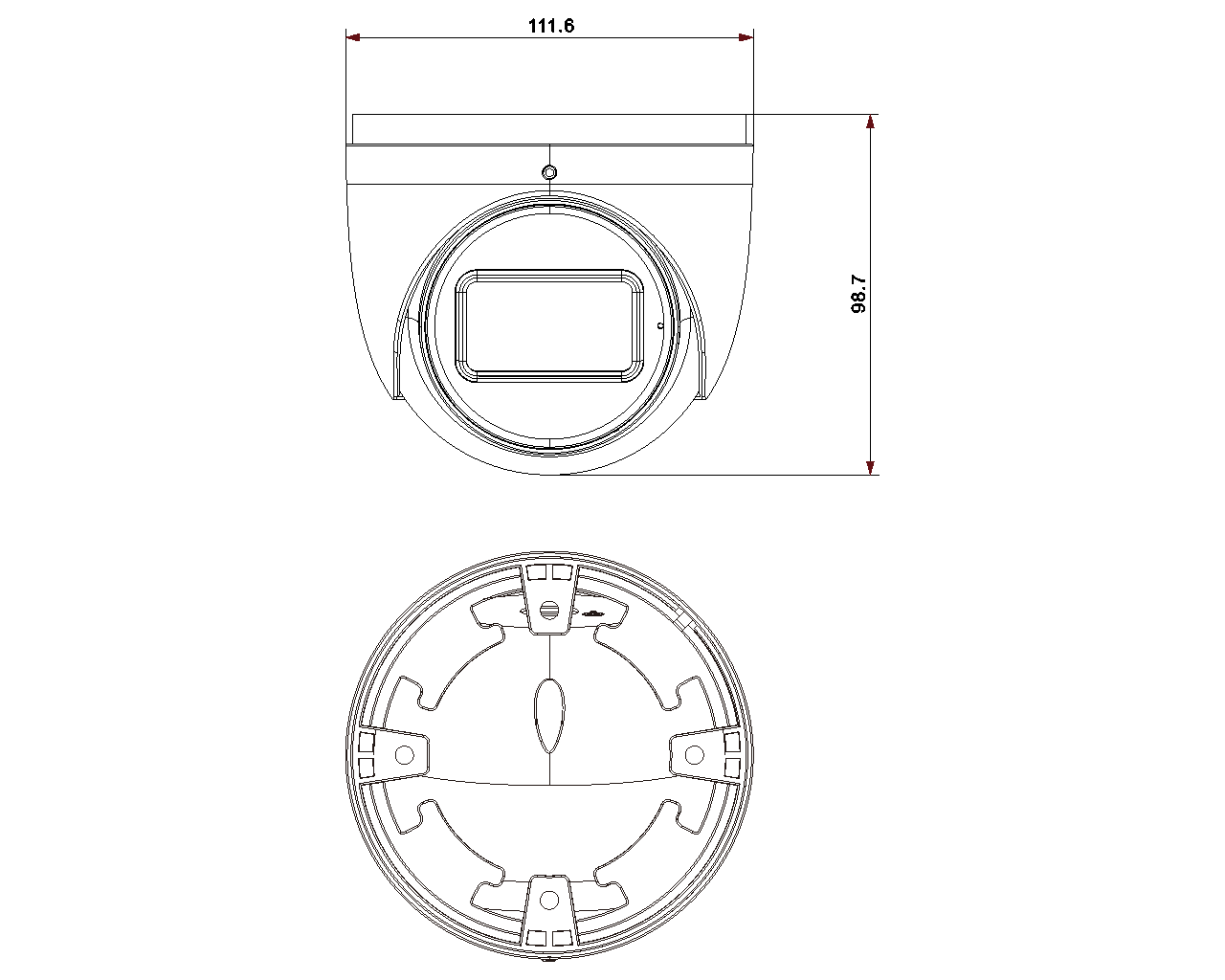

Drawings
Class group
Alarm installations, emergency call and signalling
Alarm installations, emergency call and signalling
Class
Camera for surveillance system
Camera for surveillance system
Model
Standard (Fixed)
Standard (Fixed)
Mounting method
Wall/ceiling
Wall/ceiling
Scope of application
Universal
Universal
Transmission
Other
Other
Protocol
TCP/IP
TCP/IP
Power over Ethernet (PoE)
802.3 af (PoE)
802.3 af (PoE)
Picture system
PAL
PAL
Property picture system
Colour
Colour
Focal size
2,80 - 12,00 mm
2,80 - 12,00 mm
Colour
White
White
Wireless
No
No
Type of interface
Wi-Fi
Wi-Fi
Number of pixels (Megapixel)
5
5
Memory capacity
256
256
With lens
Yes
Yes
With IR lamp
Yes
Yes
Max. infrared reach
50 m
50 m
Number of digital inputs
1
1
Number of digital outputs
1
1
Number of audio inputs
1
1
Number of audio outputs
1
1
Vandal proof
No
No
Impact strength
None
None
With video motion detector
Yes
Yes
Degree of protection (IP)
IP67
IP67
Horizontal field of view
3.000,00 - 9.500,00
3.000,00 - 9.500,00
Power consumption
1.100,00 W
1.100,00 W
Supply voltage
12,00 - 12,01 V
12,00 - 12,01 V
Voltage type
DC
DC
Diameter
11.200,00 mm
11.200,00 mm
Height
100,00 mm
100,00 mm
Width
11.200,00 mm
11.200,00 mm
Depth
100,00 mm
100,00 mm
Compatible with Apple HomeKit
No
No
Compatible with Google Assistant
No
No
Compatible with Amazon Alexa
No
No
IFTTT support available
No
No
ONVIF-compliant
Yes
Yes
Minimum order quantity: 1 NR
Barcode
8007352712966
1 NR
14.5x14.5x12.5 [cm]
743.5 [g]
Share
Legal
Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
