Vertical wiring 485mm modules - 41190

41190
ELVOX Door entry system / Video entry outdoor stations / Shared A/V components / A/V accessories

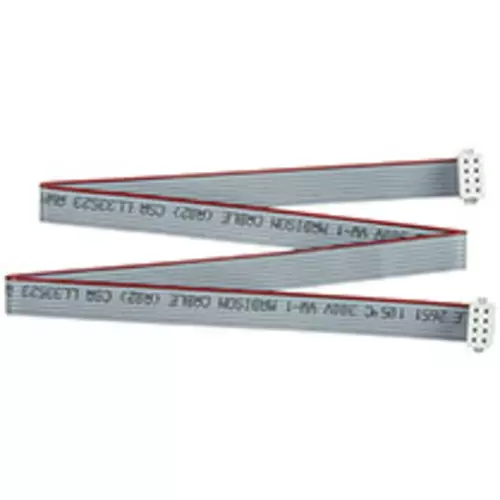

Vertical wiring 485mm modules
Harness for vertical and/or horizontal wiring of modules with integrated IP protection, length 485 mm

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (5969 kb)

Video

• Pixel video door entry panel
• Retrofit with existing back boxes
• After Installation
• Interacting with the TAB Free
• Installation and configuration

---

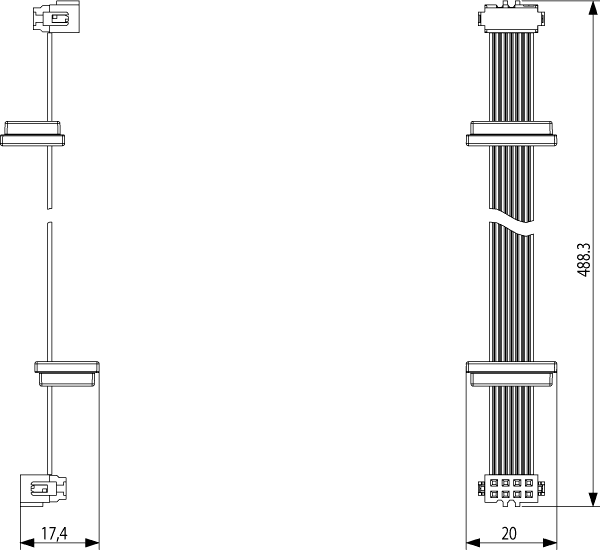

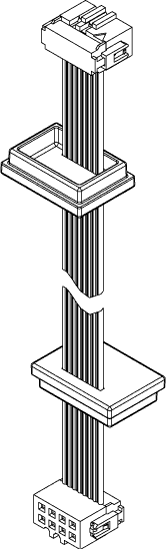

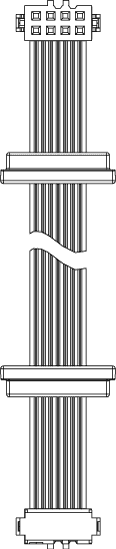

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Communication technique

Class
Accessories/spare parts for door communication

Suitable for
Indoor station

Mounting method
Flush-mounted

Material
Other

Colour
Other

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8013406272195

1 NR

48.5x2x1.5 [cm]

10.7 [g]

8013406274557

10 NR

14x9.5x8.7 [cm]

155.8 [g]
