Pixel name-plate front panel - 41115

41115
ELVOX Door entry system / Video entry outdoor stations / Shared A/V components / Front covers

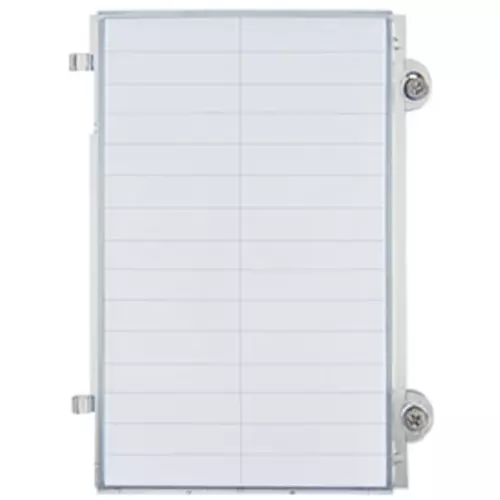

Pixel name-plate front panel
Name panel front cover for electronic unit 41015

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (5969 kb)
• Label printer module for entrance panels (2191 kb)

Video

• Pixel video door entry panel
• Retrofit with existing back boxes
• After Installation
• Interacting with the TAB Free
• Installation and configuration

---

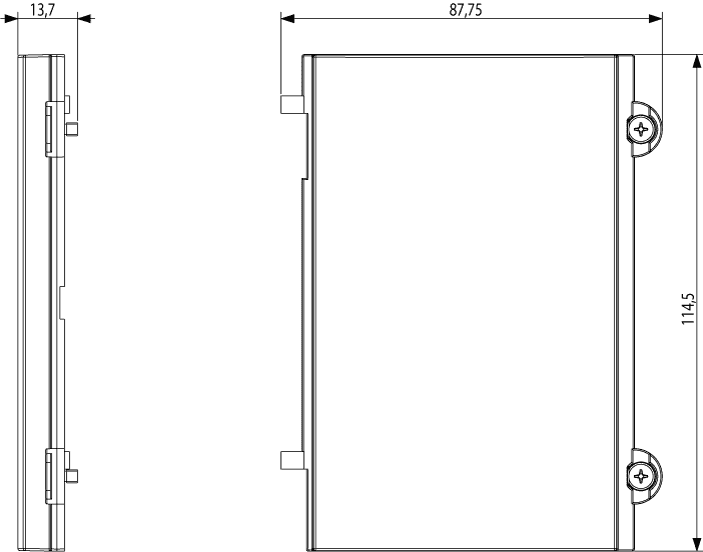

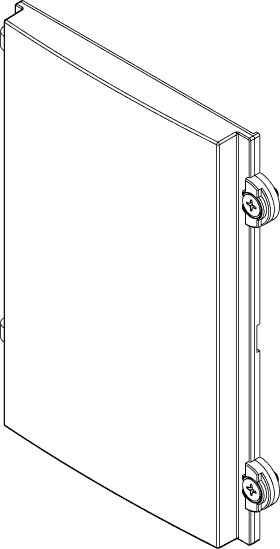

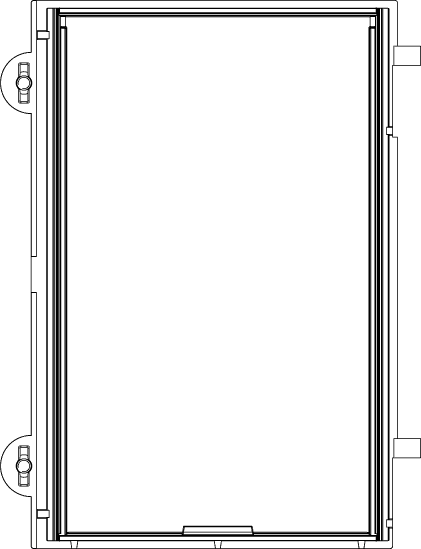

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Communication technique (components and systems)

Class
Mounting frame for door station

Material
Plastic

Colour
White

Mounting method
Other

Height
114,50 mm

Depth
13,70 mm

00. CE Marking - EU

Minimum order quantity: 1 NR

---

Barcode

8013406271624

1 NR

12x9.1x1.9 [cm]

55.1 [g]

8013406271631

5 NR

13.3x10.2x10 [cm]

324.4 [g]
