Keypad f/A/V module - 41019

41019
ELVOX Door entry system / Video entry outdoor stations / Shared A/V components / Modules

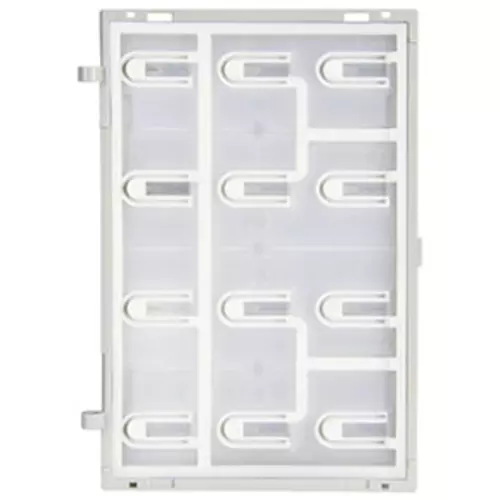

Keypad f/A/V module
Electronic unit with alphanumeric keypad for audio-video units, buttons with white LED backlighting and audible feedback, 1 input configurable as external button for CA door opener or PA door open, 1 NO relay output, to be completed with front keyboard module

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage installer manual (2840 kb)

Video

• Pixel video door entry panel
• Retrofit with existing back boxes
• After Installation
• Interacting with the TAB Free
• Installation and configuration

---

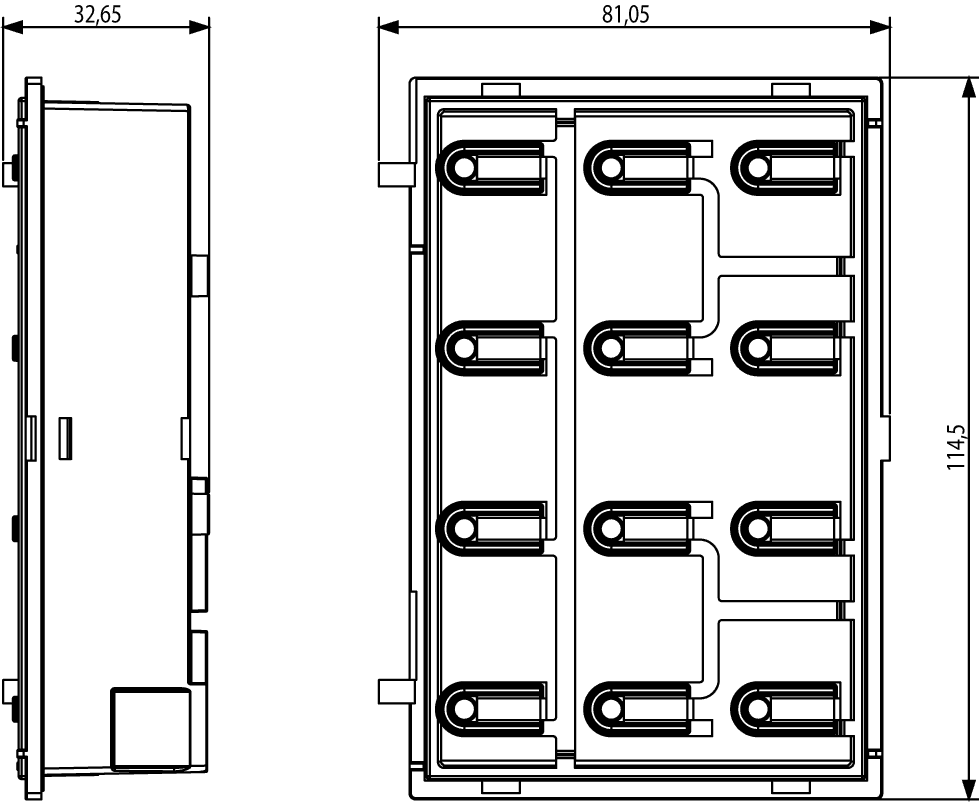

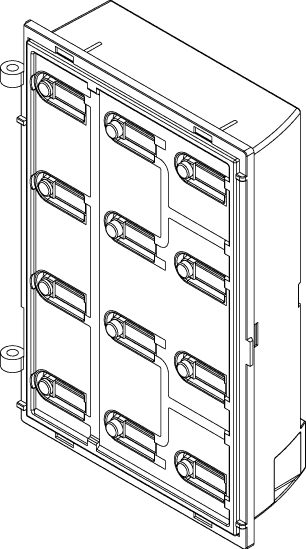

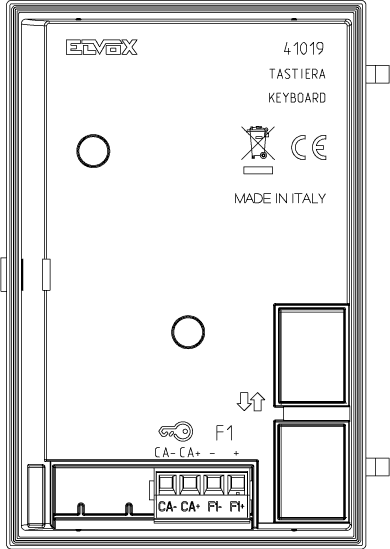

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Communication technique

Class
Functional module for door communication

Model
Call display

Installation technique
Other

Height
114,50 mm

Depth
32,65 mm

Number of call buttons
2000

With day/night function
No

Zoom, pan/tilt function
No

Manual adjustable camera
No

Hearing aid compatible
No

Colour
White

00. CE Marking - EU

35. RCM - Australia

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8013406272126

1 NR

18.5x12.5x5.5 [cm]

180.6 [g]

8013406274359

20 NR

38.5x29.5x25 [cm]

4,036 [g]
