Voxie interphone 2F+ 7-button white - 40547

Pdf
Vimar - 40547 - Voxie interphone 2F+ 7-button white
Vimar - 40547 - Voxie interphone 2F+ 7-button white

40547
ELVOX Door entry system / 2F/2F+ video door entry system / Audio / Audio indoor stations

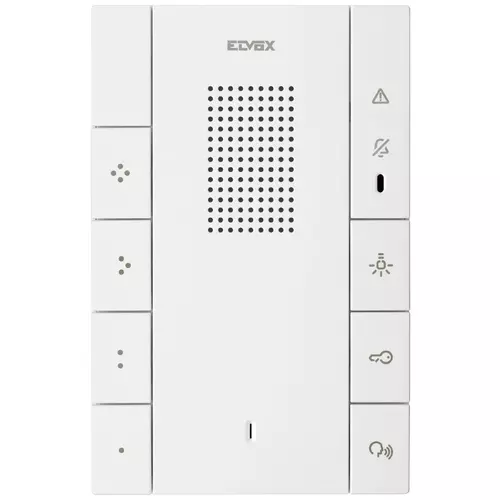

Voxie interphone 2F+ 7-button white
Voxie hands-free entryphone for Due Fili Plus system with 7 push buttons for answer, door lock release and auxiliary service (stair light) functions, 4 programmable push buttons for auxiliary functions and services<(>,<)> surface mounting, white

  • Also suitable for refurbishments
  • With Teleloop, optical and acoustic signalling. Crystal-clear sound and visual feedback confirm the activation of the functions, facilitating use for the visually impaired or hearing aid wearers too
  • Simplified configuration with dip switches, push buttons and software
  • Rapid and intuitive functions

Product Status
3 - Active

You may also be interested in

40598
40598 - Voxie desktop white
K40547.E
K40547.E - 1-family audio kit Voxie 40547+40141
Class group
Communication technique
Class
Intercom
Model
Main station
Type of communication
Full-duplex
Type of system
Central
Single call function
Yes
Group call function
Yes
General call function
No
Installation technique
Bus system
Mounting method
Wall-/desk type model
Degree of protection (IP)
Other

00. CE Marking - EU

32. FCC - USA

35. RCM - Australia

37. Marking - Morocco

46. UK PSTI compliance

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352673243
1 NR

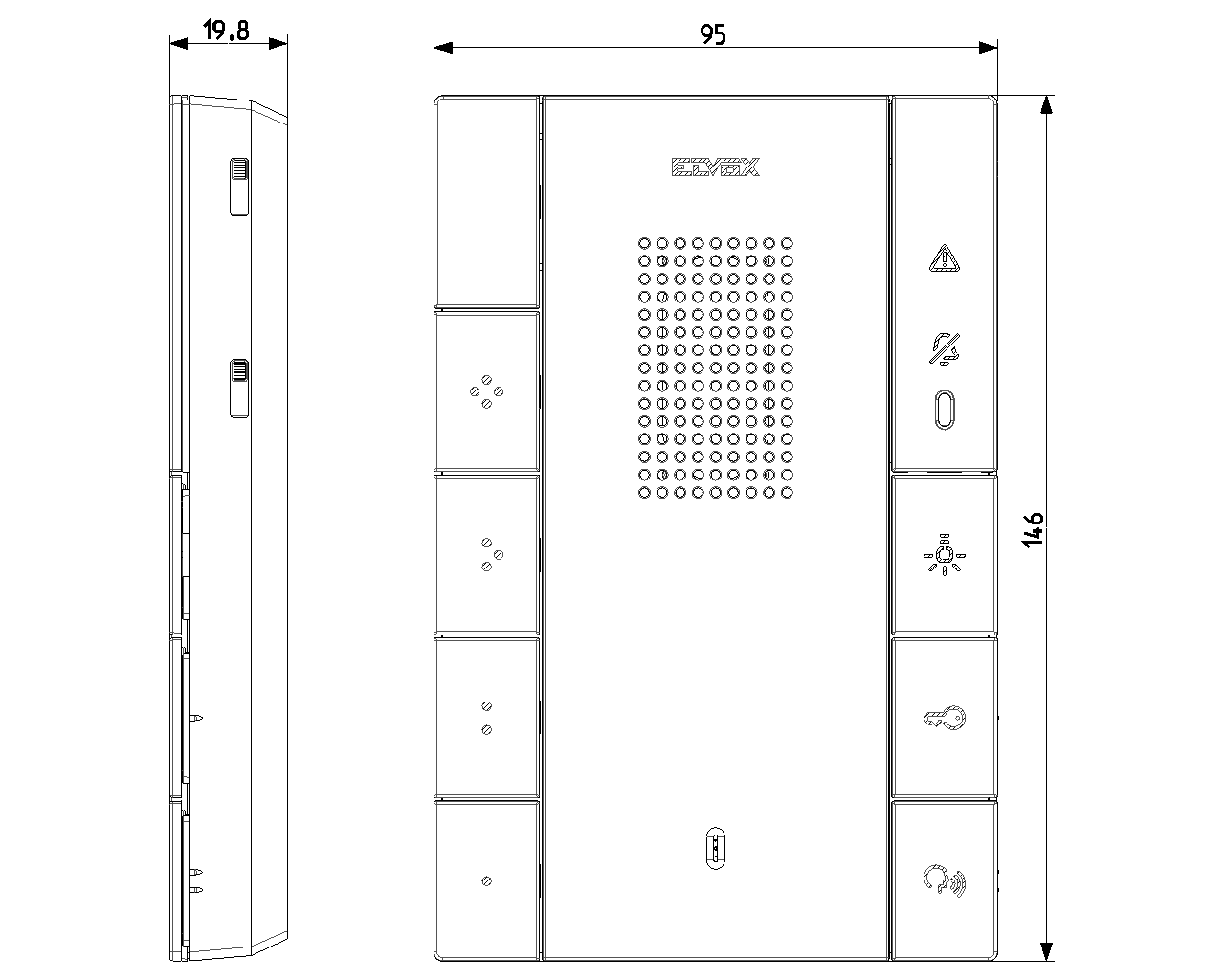

15.8x11x3.2 [cm]
215.47 [g]
Barcode Qty 10 NR
8007352673250
10 NR
24x17x19 [cm]
2,333 [g]
