Pixel UP audio entrance panel 2F+ 4x4 ho - 40424

40424
ELVOX Door entry system / 2F/2F+ video door entry system / Audio / 2F+ audio outdoor stations

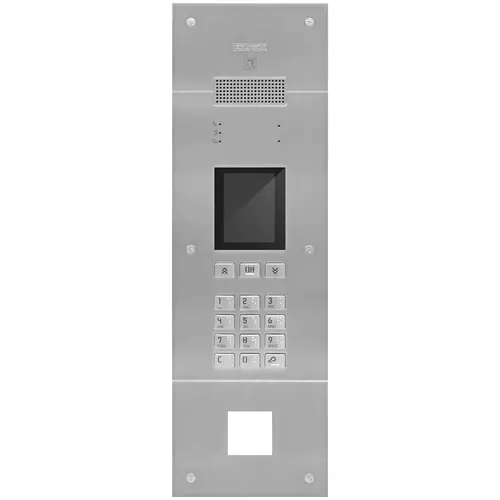

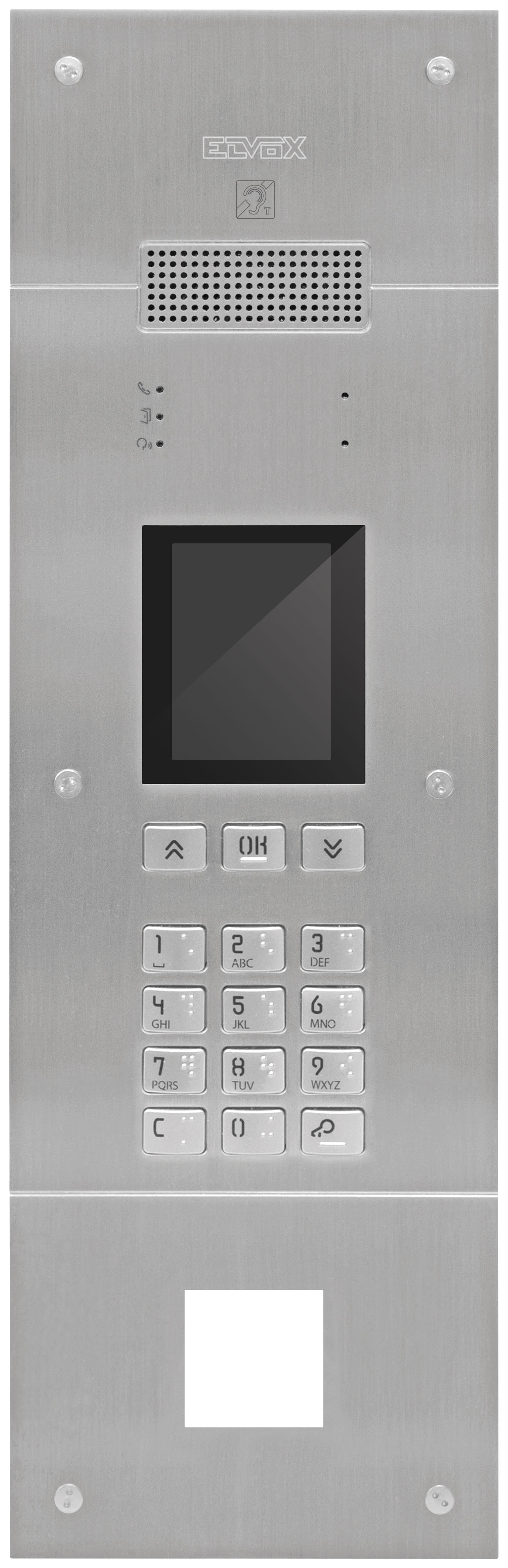

Pixel UP audio entrance panel 2F+ 4x4 ho
Pixel UP audio entrance panel, Due Fili Plus technology, with keypad, display and electronic contacts list, 40x40 mm hole for access control reader, 6400 inner units control, complete with metal flush mounting box, stainless steel

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Installer manual (3598 kb)
• Programming manual (2817 kb)
• User Manual (2530 kb)

---

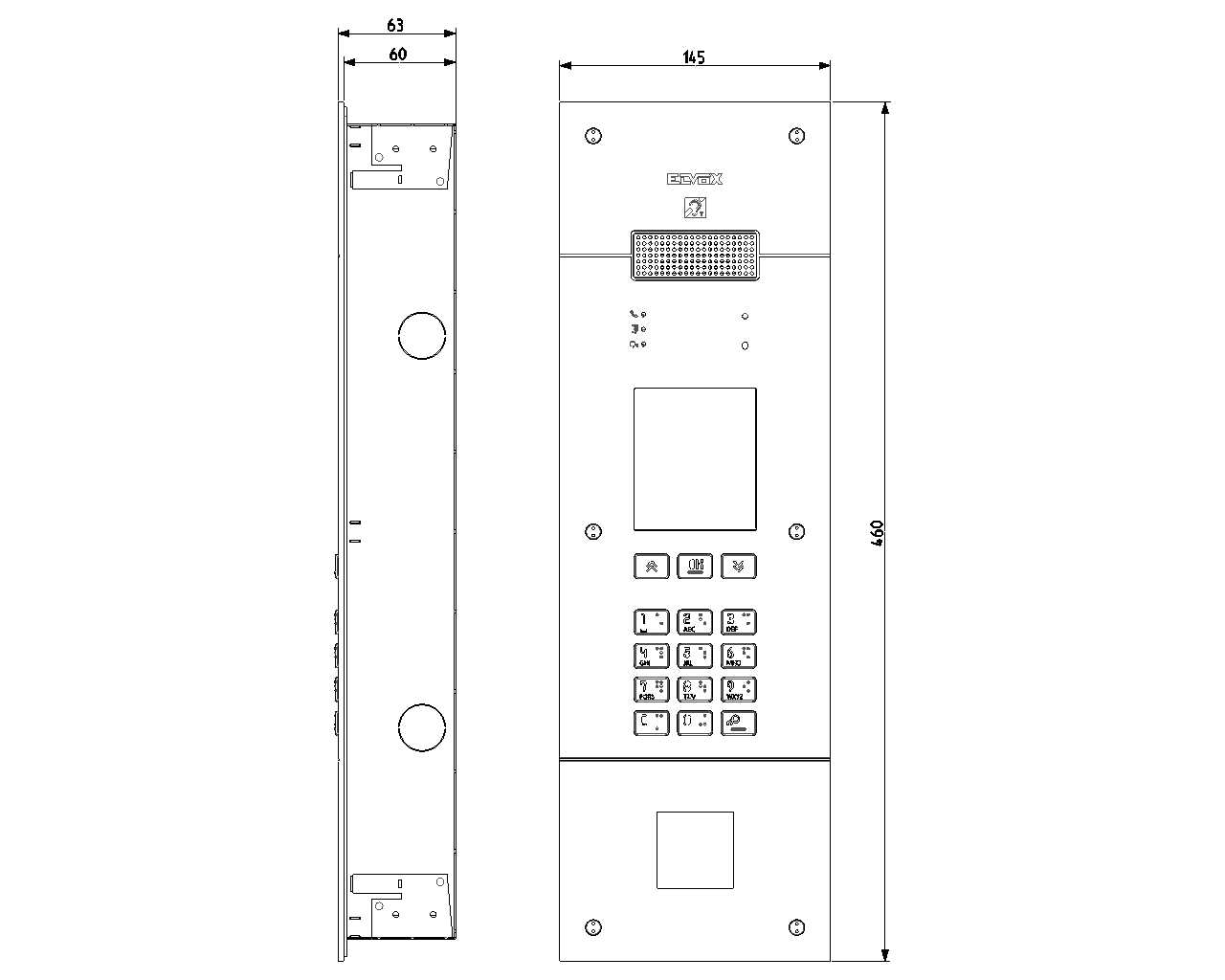

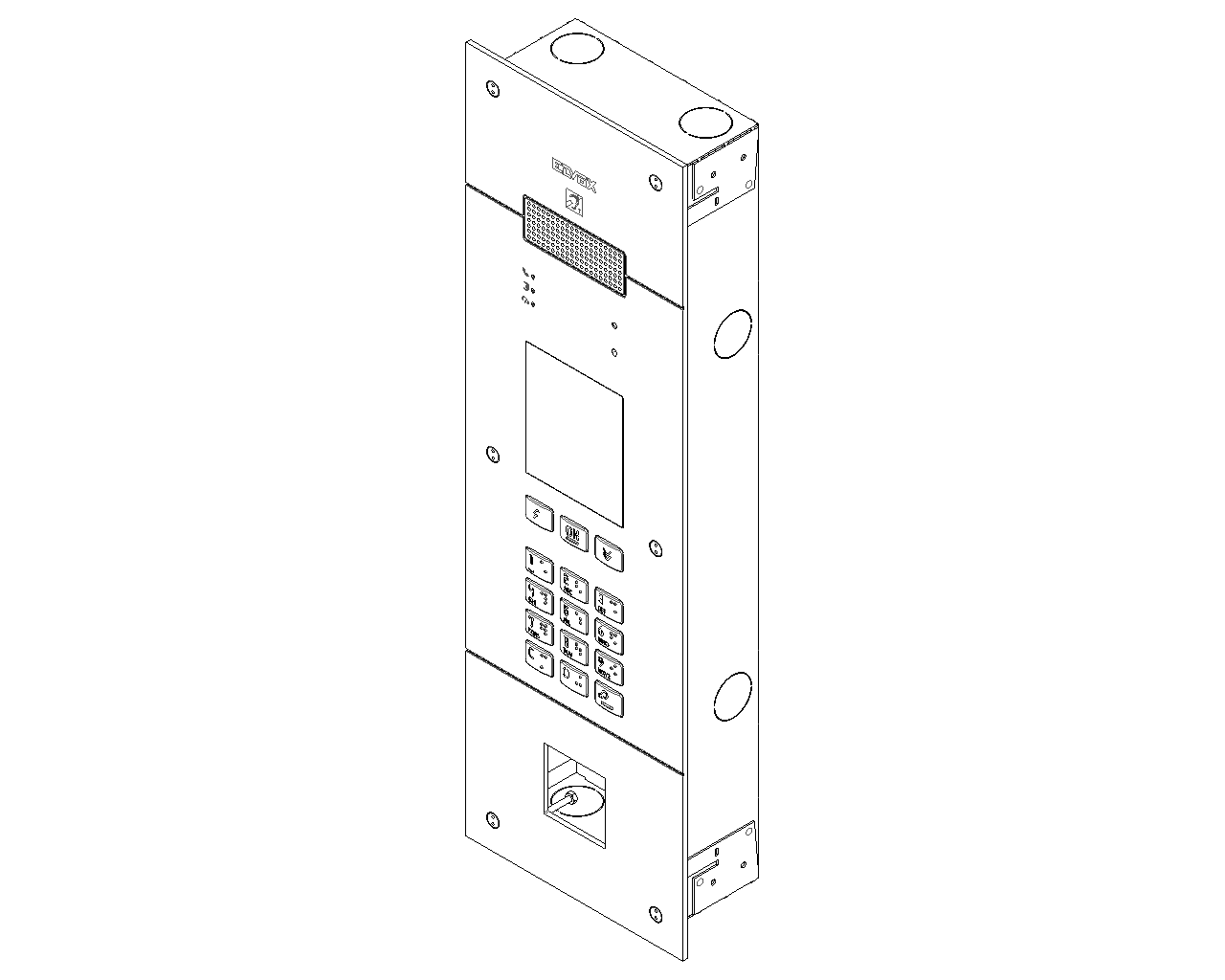

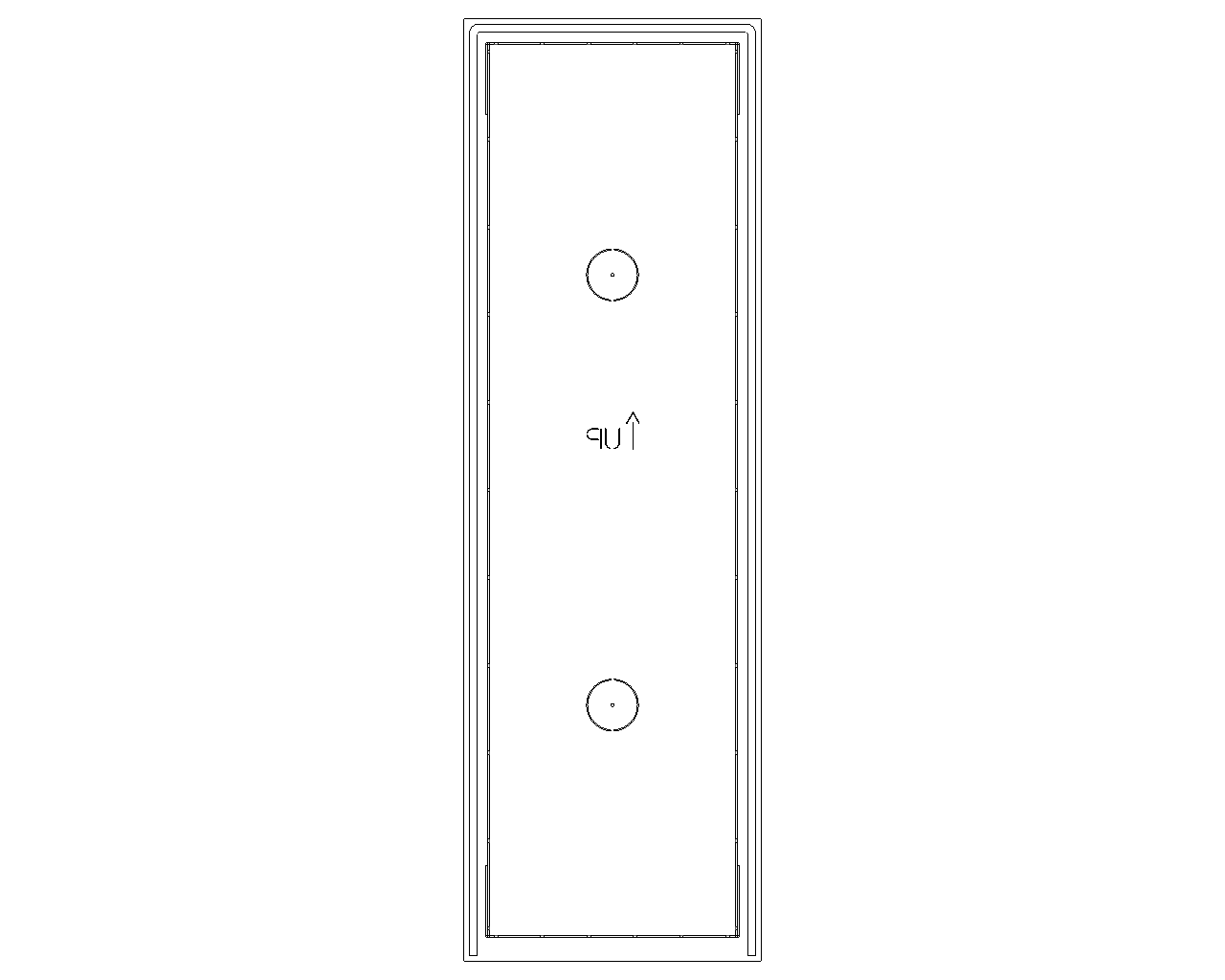

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Communication technique

Class
Door station door communication

Installation technique
Other

Mounting method
Flush-mounted

Modular construction
No

With info sign
Yes

With cover
No

Vandal proof
No

With camera
No

Colour
Grey

Height
460,00 mm

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8013406310446

1 NR

15.5x46.5x8.5 [cm]

3,156.5 [g]
