Surface mount. frame for TAB 7 +screws - 40196

Pdf
Vimar - 40196 - Surface mount. frame for TAB 7 +screws
Vimar - 40196 - Surface mount. frame for TAB 7 +screws

40196
ELVOX Door entry system / 2F/2F+ video door entry system / Video / Video indoor stations access.

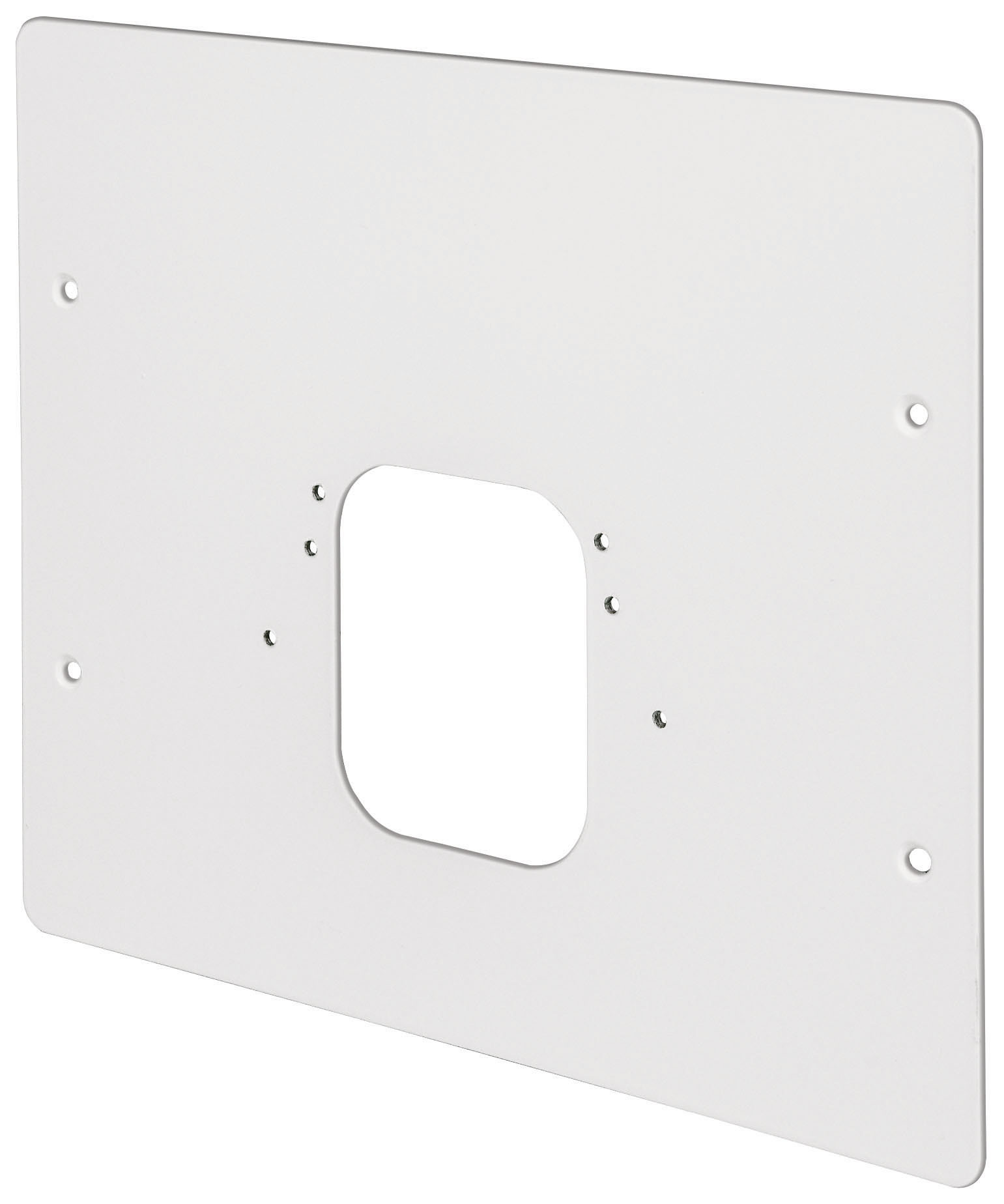

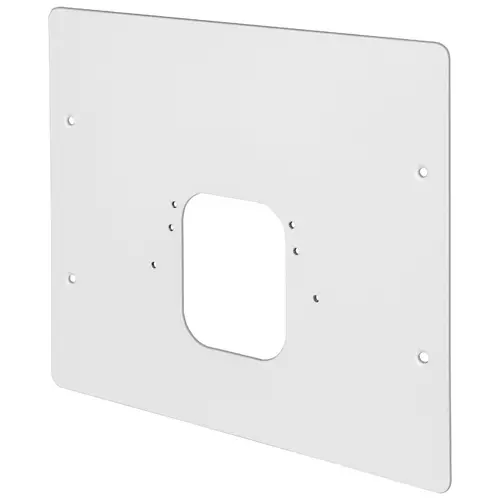

Surface mount. frame for TAB 7 +screws
Mounting frame for surface mounting of Tab 7 series video entryphone on flush mounting box for video door entry systems 720E and 7249, with screws

Product Status
3 - Active

Drawings

view encumbered art. 40196
PNG DXF
rear view art. 40196
PNG DXF

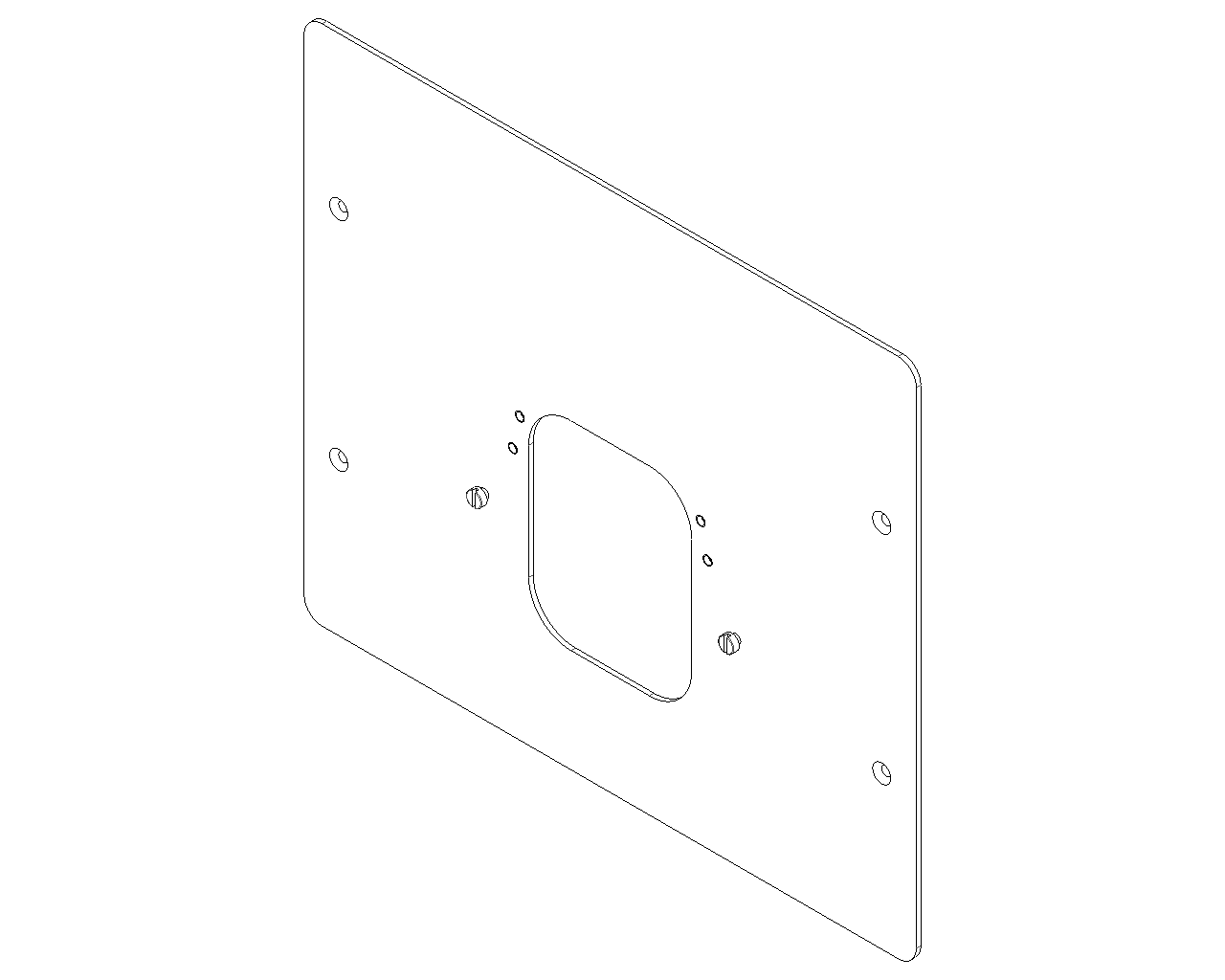

3D view art. 40196
PNG DXF
Class group
Communication technique
Class
Accessories/spare parts for door communication
Suitable for
Indoor station
Mounting method
Surface mounted
Material
Steel
Colour
Other
Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406307682
1 NR
20.3x17.5x1.4 [cm]
391.27 [g]
Barcode Qty 5 NR
8013406308627
5 NR
22x18x3 [cm]
2,016.3 [g]
