Lift Interface IP - 40166

Pdf

40166
ELVOX Door entry system / IP video door entry system / Shared A/V components / System components

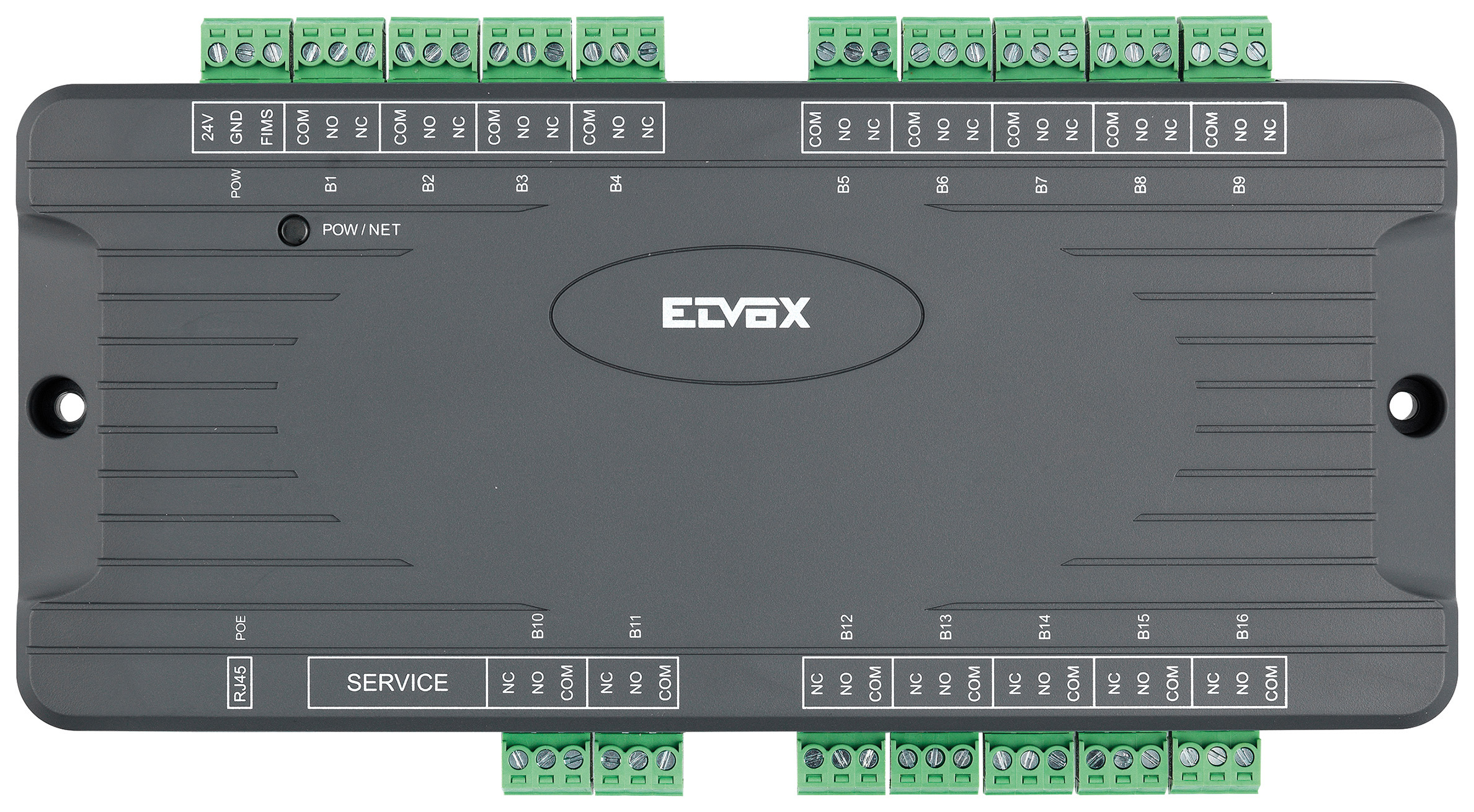

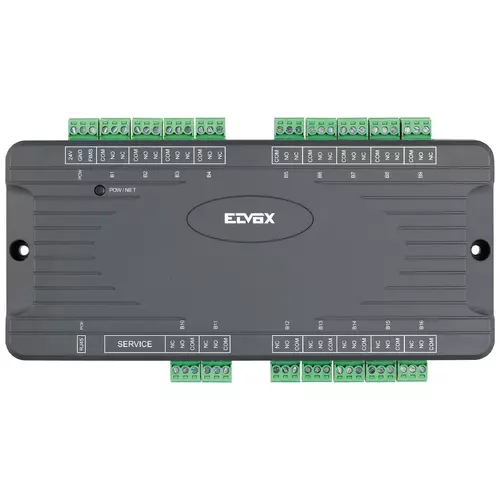

Lift Interface IP
Lift control device on IP system, 16 change-over relay outputs 1A 24 Vdc, PoE or 24 Vdc power supply, installation on DIN rails (60715 TH35), occupies 11 modules size 17.5 mm

Product Status
3 - Active

Sheets, Manuals, Documentation

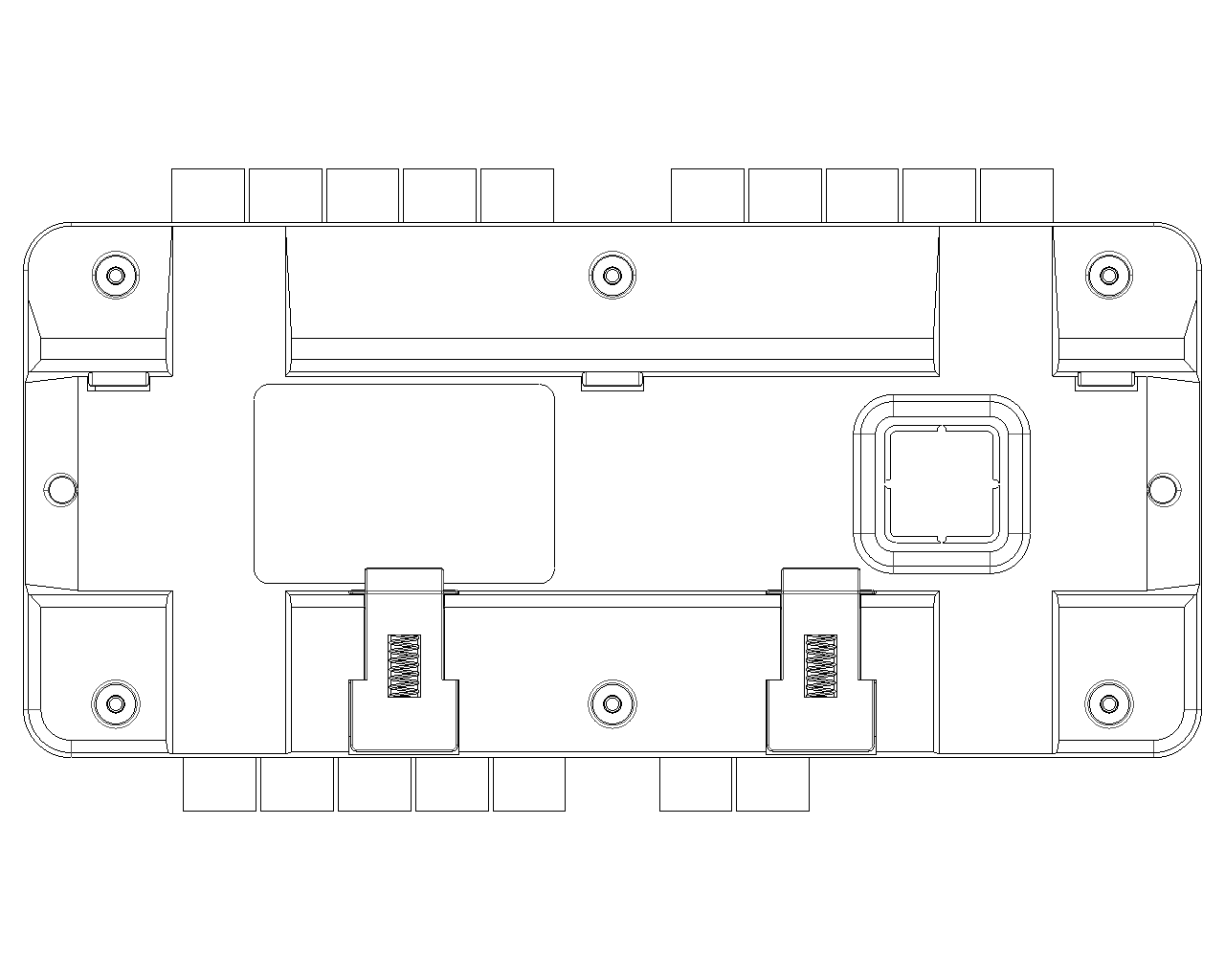

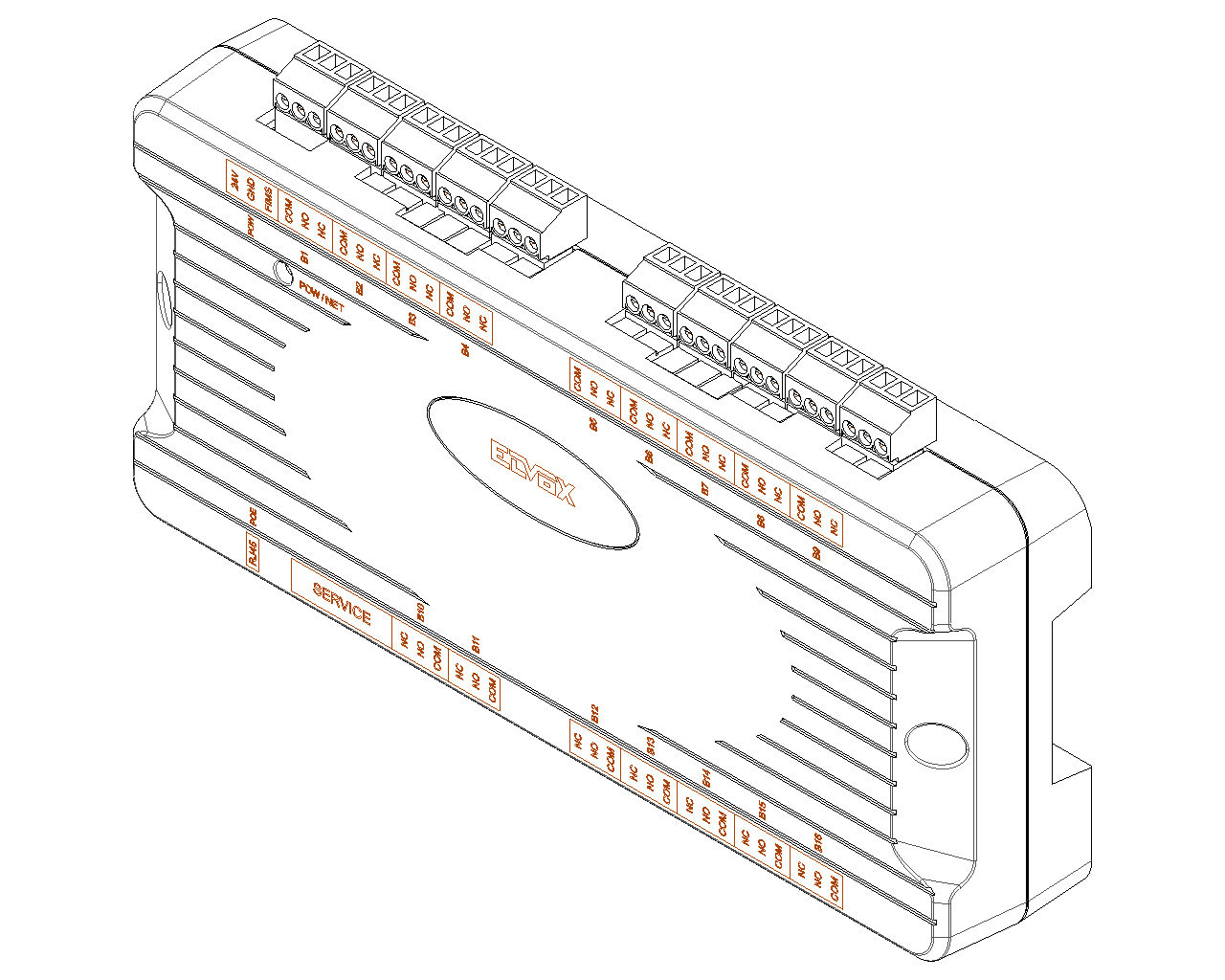

Drawings

Class group
Communication technique
Class
Accessories/spare parts for door communication
Mounting method
Flush-mounted
Material
Plastic
Colour
Grey

00. CE Marking - EU

35. RCM - Australia

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352703667
1 NR
15.5x5.2x20 [cm]
213 [g]
Barcode Qty 20 NR
8007352703896
20 NR
55x44x14 [cm]
4,260 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
