By-me Plus XT thermostat 2M white - 32041.B

Pdf

32041.B
Smart systems&products / By-me Plus / LINEA / XT devices

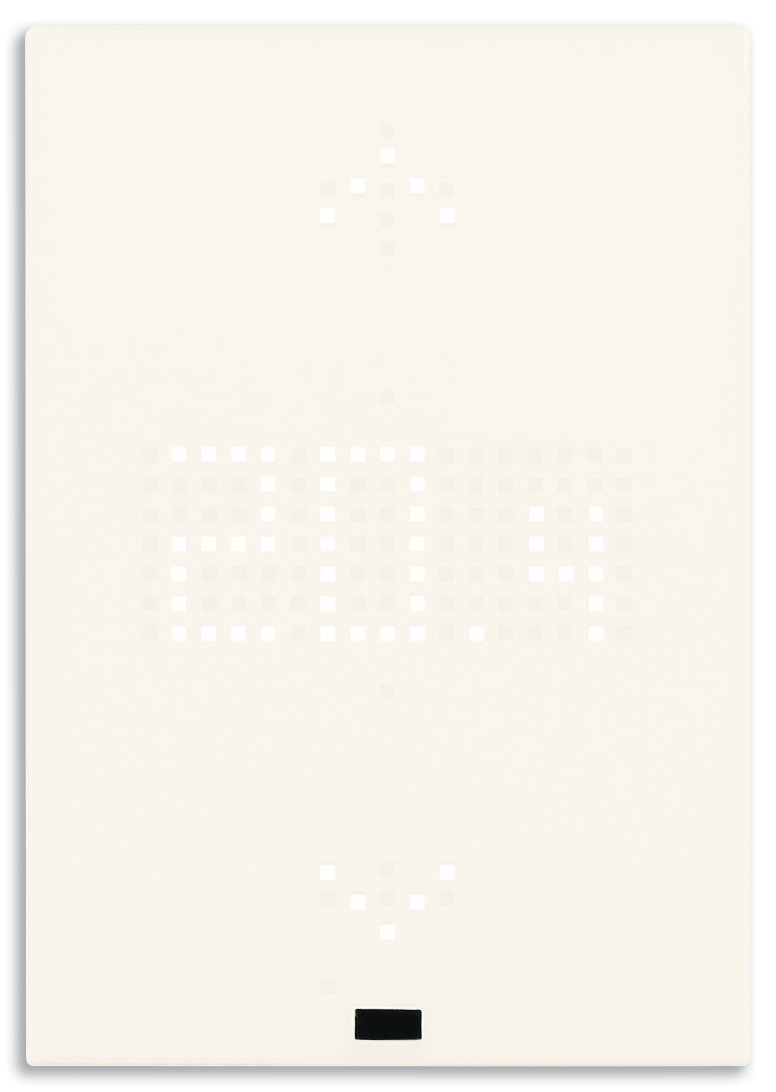

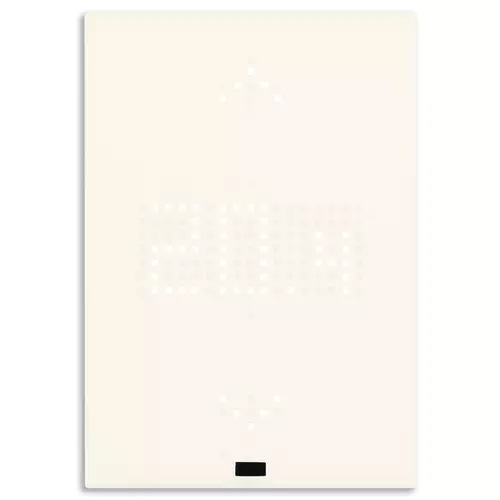

By-me Plus XT thermostat 2M white
XT thermostat for By-me home automation system for room temperature control (heating and air conditioning), 2- and 4-pipe system management, 3-speed and proportional fan coil control, class I temperature control device (contribution 1%) in ON/OFF mode, class IV (contribution 2%) in PID mode, can be interfaced with actuator with proportional analogue outputs 01466.1 to make a class V modulating room thermostat (contribution 3%), boost function to activate a second source, proximity function, LED backlighting, white - 2 front modules

Product Status
3 - Active

Class group
Installation bus systems
Class
Room temperature controller for bus system
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352722668
1 NR
11.5x9x1.7 [cm]
61.3 [g]
Barcode Qty 10 NR
8007352722675
10 NR
18.7x9.8x12.2 [cm]
686 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
